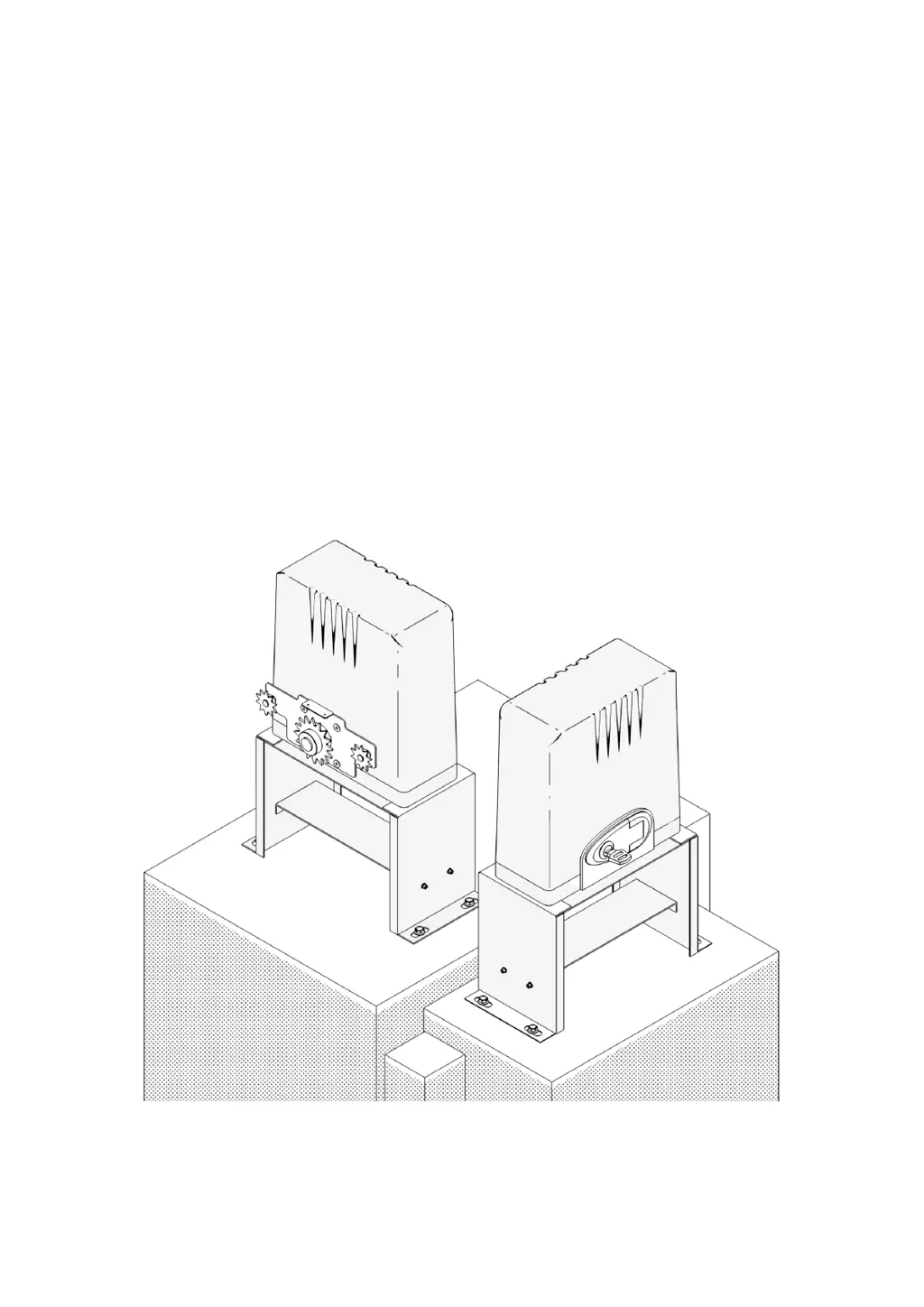

Sliding Gate Opener
User Manual
Read Carefully Before Use
Keep for Future Reference
V20231201
SGO-0000-01 1400 lb. Complete Kit
SGO-EC06-02 1400 lb. Essentials Kit
SGO-1801-GY 1800 lb. Home Use Kit

Table of Contents

Questions and Answers

  • G
    garybowmanAug 6, 2025
    Why CO-Z SGO-EC06-02 remote control does not work?
    • L
      larsonsonyaAug 6, 2025
      The CO-Z Gate Opener remote control might not be working due to several reasons: it could be out of range, so try moving closer to the gate opener. There might be a remote-receiver incompatibility, in this case, try reprogramming the remote. The receiver might be damaged, consider having it replaced. Finally, the battery may be dead. Replace the battery (12V23A) and check if the indicator light turns on. If not, seek professional assistance.
  • A
    Amanda BeckAug 10, 2025
    What to do if CO-Z SGO-EC06-02 Gate Opener cannot open or close?
    • M
      Megan HoltAug 10, 2025
      If your CO-Z gate opener isn't opening or closing, here's what you can check: * First, verify the power supply is working correctly; get professional help if needed. * Second, examine the limit switches, try repositioning the magnets, and test with a multimeter. If it doesn't beep, replace the limit switches. * Third, ensure all circuit connections are fully reconnected and tightened. * Fourth, if the motor is damaged, seek professional servicing or replace it. * Fifth, the motor may have overheated; allow it to cool for at least 20 minutes. * Sixth, any damaged electrical component on the control board should be replaced; if necessary, replace the entire control board.
  • C
    cibarraAug 15, 2025
    What to do if CO-Z SGO-EC06-02 Gate Opener opens normally but cannot close?
    • M
      Michael CookAug 15, 2025
      If your CO-Z gate opens but won't close, consider these potential issues: * Check for obstructions blocking the infrared sensor and remove them. * Inspect the limit switches by repositioning the magnets; if that doesn't work, test with a multimeter and replace if faulty. * The starting capacitor in the motor may be faulty and needs replacement. * A damaged electrical component on the control board might be the cause; replace it or the entire board if necessary.
  • J
    jeremywhiteAug 19, 2025
    What to do if CO-Z SGO-EC06-02 Gate Opener stops midway or returns to the original position?
    • B
      Brittany VelasquezAug 19, 2025
      If your CO-Z gate stops midway or returns to its original position when using Button 1 or 2, it could be due to: * Insufficient resistance: Increase the high-speed obstruction sensitivity by adjusting the P1 setting on the display panel. * Obstacle interference: Remove any obstacles that may be in the gate's path.
  • H
    Holly GilesAug 23, 2025
    Why CO-Z Gate Opener stops before fully opening?
    • T
      Thomas CampbellAug 23, 2025
      If your CO-Z gate stops before fully opening and doesn't return to its original position, it could be caused by: * Incorrect installation of limit switch magnets: Correct their positions and try again. * Direction mismatch for a left-slide-open gate: Adjust the cable connection according to Direction Reversal. * Magnetic sensor misfire: Enlarge the distance between the two limit switch magnets.
  • E
    elizabethhansonAug 28, 2025
    Why CO-Z SGO-EC06-02 Gate Opener can only slide open in one direction?
    • C
      Craig BennettAug 28, 2025
      If your CO-Z gate opener only slides open in one direction, the issue might be due to: * Limit switch failure: Try repositioning the magnets. If that doesn't work, test the limit switches with a multimeter and replace them if they don't beep. * Incorrect circuit connections for the infrared sensor: Inspect the wiring. * Damage to an electrical component on the control board: Replace the component or the entire board.
  • A
    Amy WilkersonSep 1, 2025
    What to do if CO-Z SGO-EC06-02 Gate Opener motor is operating properly while the gate is not moving?
    • C
      Charles BrownSep 1, 2025
      If the motor of your CO-Z gate opener is running but the gate isn't moving, it's possible that the manual release lock is not engaged properly. To resolve this, re-engage the manual release lock using the provided keys.

Summary

General Safety Information

Critical Safety Precautions

Details essential safety rules for operating the gate opener to prevent injury or damage.

Product Description

Installation Preparation

Installation Condition Checks

Ensures gate compatibility and optimal environmental conditions before installation.

Safety Guards Installation

Mechanical Installation

Mechanical Safety Precautions

Emphasizes PPE and avoiding pinch points during mechanical assembly.

Main Unit to Base Connection

Details attaching the main unit to the base and proper positioning.

Chain Test and Manual Mode

Procedure for testing the chain and enabling manual gate operation.

Electrical Component Installation

Electrical Safety and Connection Basics

Crucial safety points for electrical work, including PPE and wire connections.

Circuit Connection Methods Explained

Guidance on connecting wires to terminals and proper wire extension techniques.

Control Board Component Layout

Overview of the EGB-12 control board, showing ports and components.

System Power Connection

Instructions for safely connecting the unit to a 110V AC power source.

Gate Direction Reversal Setup

Procedure to reconfigure motor cables for left-slide gates.

Limit Switch Magnet Installation

Details the installation and function of magnetic limit switches for gate positioning.

Secure Base Fixation

Operation Modes

Remote Control Modes Explained

Details three-button and single-button remote control operation modes.

Core Gate Functions Overview

Explains movement limitation and mechanical obstruction feedback for safe operation.

Function Configuration

Basic Function Menu Navigation

Remote Control Code Management

Instructions for learning new remote codes and clearing existing ones.

Travel Learning Configuration

Adjustable Parameter Reference

Table of parameters like auto-close times, remote modes, and infrared input settings.

Troubleshooting Guide

Gate Movement Problems

Solutions for gates that only slide in one direction or fail to open/close.

Remote Control Malfunction Solutions

Maintenance Procedures

CO-Z SGO-EC06-02 Specifications

General IconGeneral
Power Supply110V AC, 60Hz
Motor Voltage24V DC
Motor TypeDC Motor
Protection ClassIP44
Warranty1 Year
Remote Control Range30 m
Operating Temperature-20°C to 60°C
Remote Control2 included
Safety FeaturesObstruction Detection
