15. Specifications
CO2 Specifications:
Measurement Range
0 - 2,000ppm for rated specifications
0 - 10,000ppm output for 4-20mA output
Display Resolution 1ppm at 0~1,000ppm; 10ppm above 1000ppm
Accuracy
0 - 2,000ppm: ±70ppm or ±5% of reading,
whichever is greater. >2,000ppm: ±7% of reading
Repeatability ±20ppm @400ppm
Pressure Dependence 0.13% of reading per mm Hg
Response Time < 2 minutes for 63% response to step change
Target Lo
800 ppm for both RAD-0501 Greenhouse Mode
and RAD-0501A Ventilation Mode
Target Hi
1500 ppm for both RAD-0501 Greenhouse Mode
and RAD-0501A Ventilation Mode
Warm-Up Time < 60 seconds at 72°F (22°C)
Splash Proof Grade IP54 non-sealed enclosure
Operating Conditions:
Operating Temperature 32°F to 122°F (0°C to 50°C)
Humidity Range 0 ~ 95% RH non-condensing
Storage Conditions:
Storage Temperature -4°F to 140°F (-20°C to 60 °C)
Power Supply & Relay Output:
Power Supply AC adapter 110/220 VAC (U.S. Only)
AC
Input
Voltage 100 ~ 240 VAC
Frequency 50 / 60 Hz
Power
Requirement
3 W maximum
Relay Socket
Peak Current < 5A@ 250 VAC, SPST.
Normally Open.
Analog Output
Linear current 4-20mA = 0-10,000ppm.
RL < 150Ω. Red (+) signal, White ground.

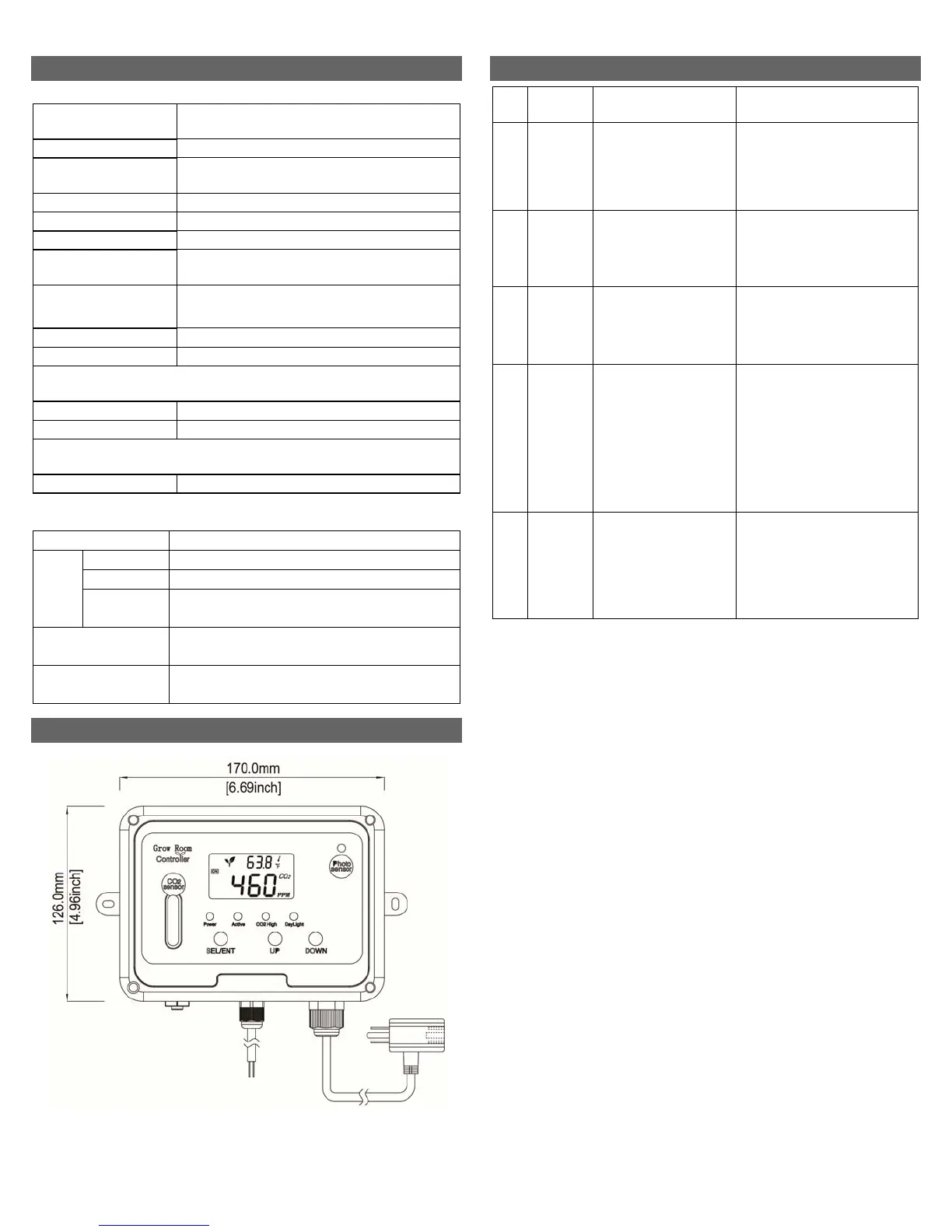

16. Dimensions
17. Fault Codes & Troubleshooting Guide
No.
LCD Fault
Icon
Fault Description Suggested Actions
1
Er3
The ambient temperature
has exceeded the
temperature range 0°C
to 50°C (32°F to 122°F)
This error will disappear when
the temperature returns to the
range between 0°C and 50°C
(32°F to 122°F).
2
Er4
Inaccurate measurement
or the sensor has
exceeded its expected
life
Unplug the AC adapter and
reconnect it. If the “Er4” always
appears, please contact place
of purchase.
3
Er5
Er6
EEPROM System
Problem
Unplug the AC adapter and
reconnect it. If the “Er5, Er6”
still appears, please contact
place of purchase.
4
Er8
The accuracy of CO2
sensor may deviate from
the actual concentration.
①Unplug the AC adapter and
reconnect. If the “Er8” still
appears, please contact place
of purchase.
②Calibrate the unit. After
calibration if the “Er8” still
appears, please contact place
of purchase.
5
Er9
Calibration failure caused
by too large a difference
between the calibration
value selected and the
CO2 level read during
calibration.
① Select the correct calibration
value before calibrating.
② If Er9 still appears, please
contact place of purchase.
