Important: Always read and follow operating instructions. • 11
Set Up
Connect the machine to the electrical power supply, which must have line fuses and an efficient grounding
system, meeting current standards. It must also be connected to an automatic differential 20A circuit breaker.
NOTE: If the machine is not supplied with an electrical plug, the user shall install a 20A plug that is suitable for
the voltage of the machine and complies with current standards.

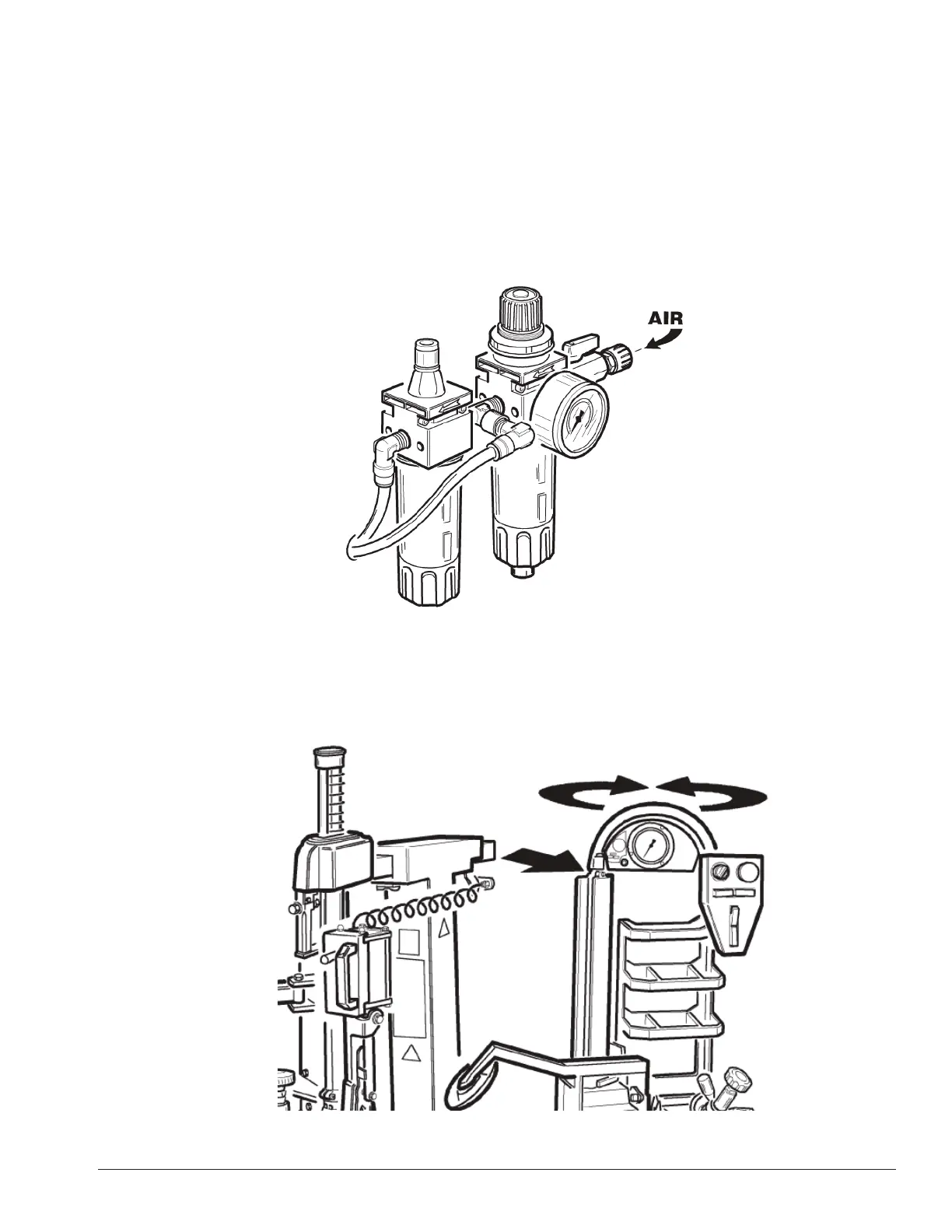

Connect the machine to the compressed air supply using the fitting on the lubricator on the back of the
machine.
Loosen the control panel bracket locking cap screw and pivot cap screw, adjust it to a convenient position
for operation, then tighten the cap screw.
