Coaster 202701Q - Hardware Identification

ITEM:202701Q
(B1-B3)
ASSEMBLY INSTRUCTIONS
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
WARNING!
2. This product is for home use only and not intended for commercial establishments.

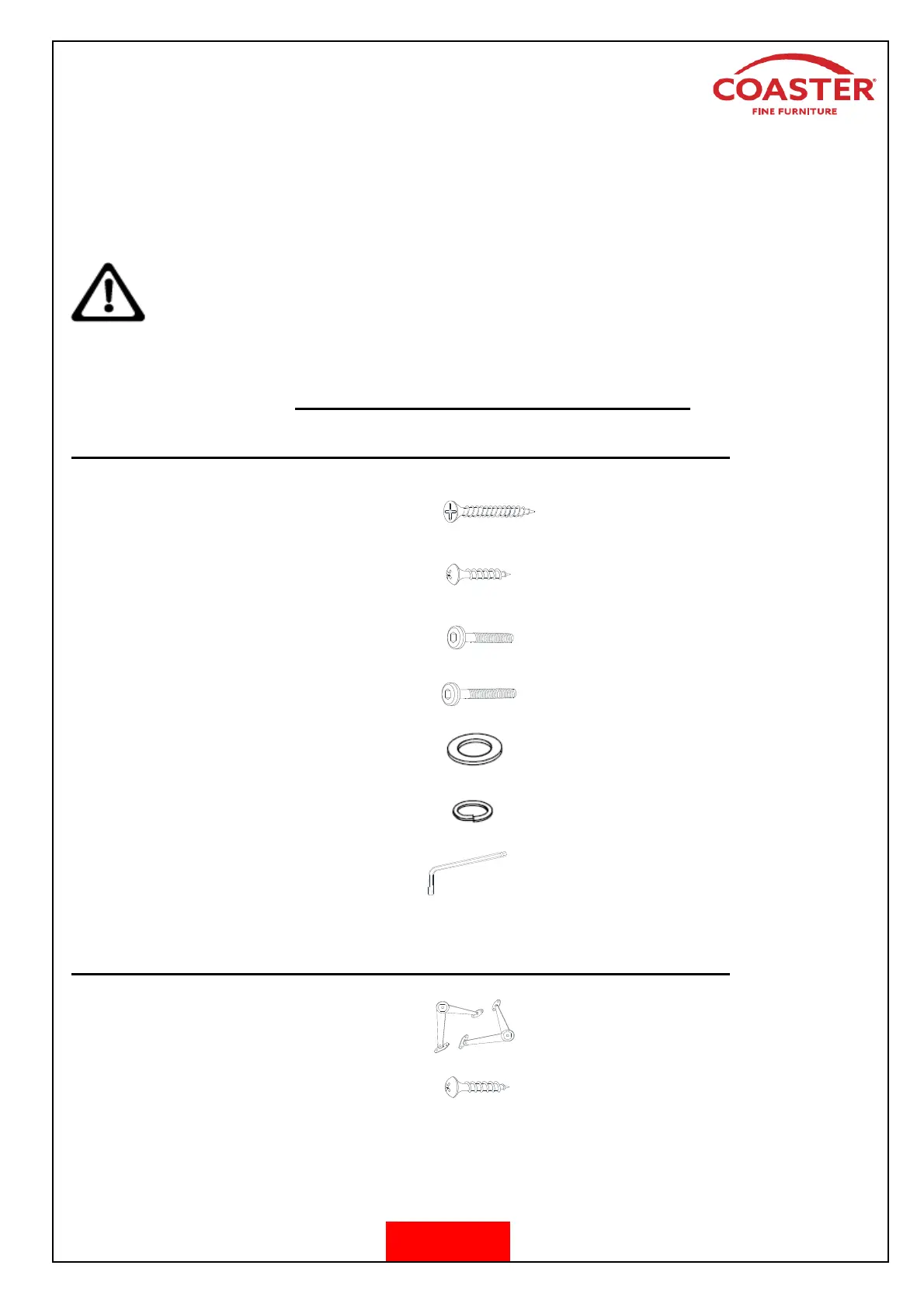

HARDWARE IDENTIFICATION
Z-B1 (BOX 1) - HARDWARE PACK IS LOCATED IN 202701Q (B1)
1
FLAT HEAD SCREW
(M4 x 32mm - RBW)
40PCS
2
PAN HEAD SCREW
(M3.5 x 16mm - BLK)
24PCS
3
SHORT BOLT
(M6 x 35mm - BLK)
19PCS
4
LONG BOLT
(M6 x 50mm - BLK)
5PCS
5
FLAT WASHER
(1/4"ID x 13mm - BLK)
21PCS
6
LOCK WASHER
(1/4" - BLK)
21PCS
7
ALLEN WRENCH
(M4 x 110mm - BLK)
1PC
Z-B2 (BOX 2) - HARDWARE PACK IS LOCATED IN 202701Q (B2)
8 HINGE 2SETS
9
PAN HEAD SCREW
(M3.5 x 16mm - BLK)
16PCS
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
PAGE 3 OF 12
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
ASSEMBLY TIPS:
COASTERFURNITURE.COM
