Coaster 203481KE - Assembly Steps; Step 1: Headboard Assembly; Step 2: Bed Frame Rails and Cross Bar

ASSEMBLY INSTRUCTIONS
www.coastercompany.com
203481KE (B1) - BOX 1
PAGE 4 OF 6
R
203481KE (B1~B3) - BOX 1 TO BOX 3
STEP 2
STEP 1
"L" Marking behind the
Headboard & Leg
Headboard & Leg
"R" Marking behind the
A
C
B
2
1
3
4
STEP 2.1
D
F
F
F
7
HB
STEP 2.2
9
F
K
K
ITEM : 203481KE (B1 ~ B3)

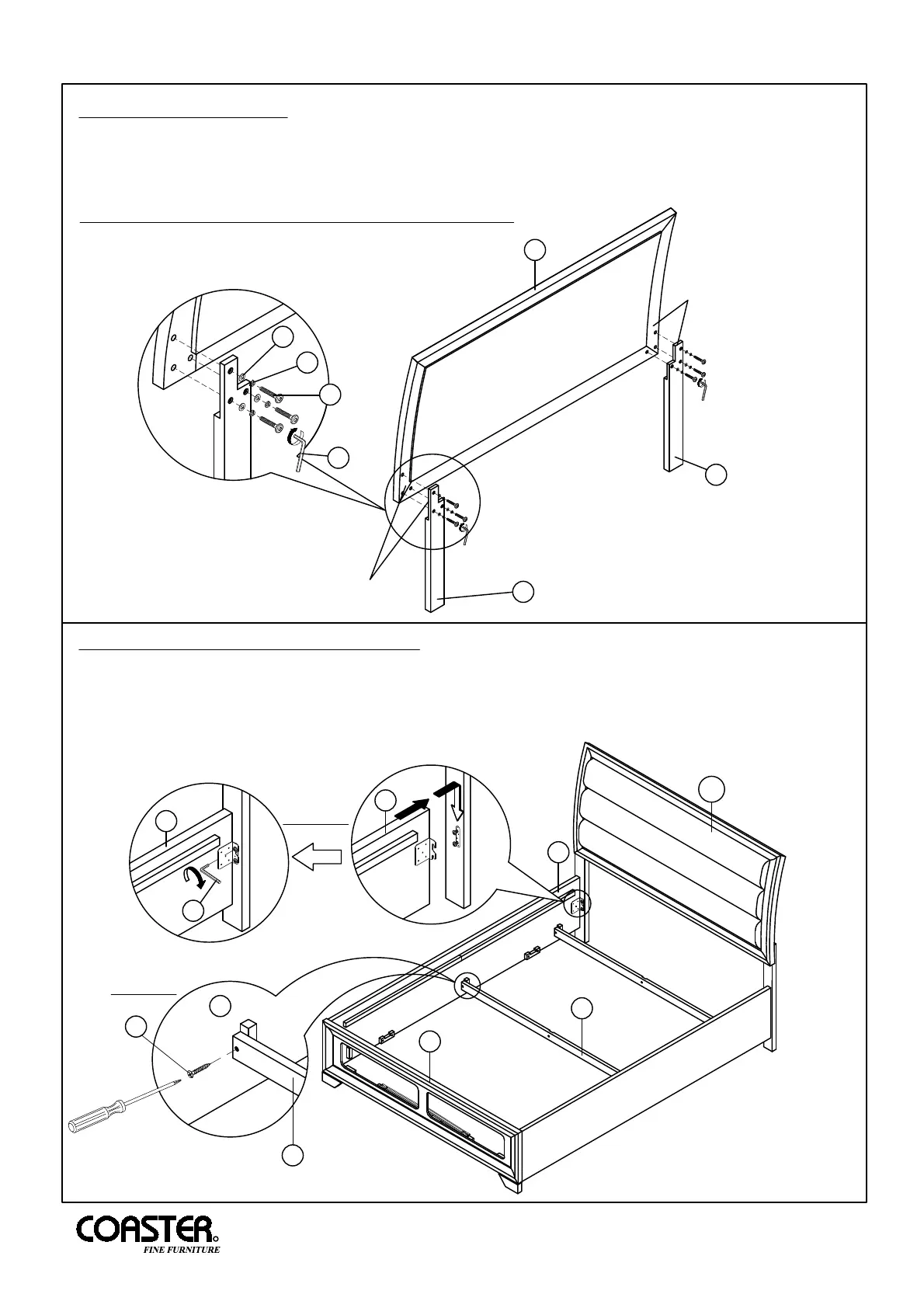

Align and fasten left (B) and right (C) headboard leg to headboard panel (A) using bolt (1),
lock washer (3) and flat washer (4) and fully tighten with Allen wrench (2).
**Please take note the marking on the leg and headboard**
2.1 Loosen the bolt and align and fasten bed rail (F) to headboard (HB) and footboard (D) using the bolt
and fully tighten with big Allen wrench (7).
2.2 Align and fasten bottom cross bar (K) to bed rail (F) using long flat head screw (9) and tighten with
Phillips head screw driver (NOT INCLUDED).
