Coaster 203481Q - Step 5: Fit Bed Slats and Supports; Step 6: Add Roll Slats and Conceal Panel

ASSEMBLY INSTRUCTIONS
www.coastercompany.com
PAGE 6 OF 6
R
STEP 5
STEP 6
STEP 6.2
STEP 6.3
8
E
D
D
STEP 5.1
G
I
L
9
L
K
STEP 5.4
9
F
H
STEP 5.3
9
F
G
6
5
I
L
L
G
STEP 6.1
STEP 5.2
6
5
I

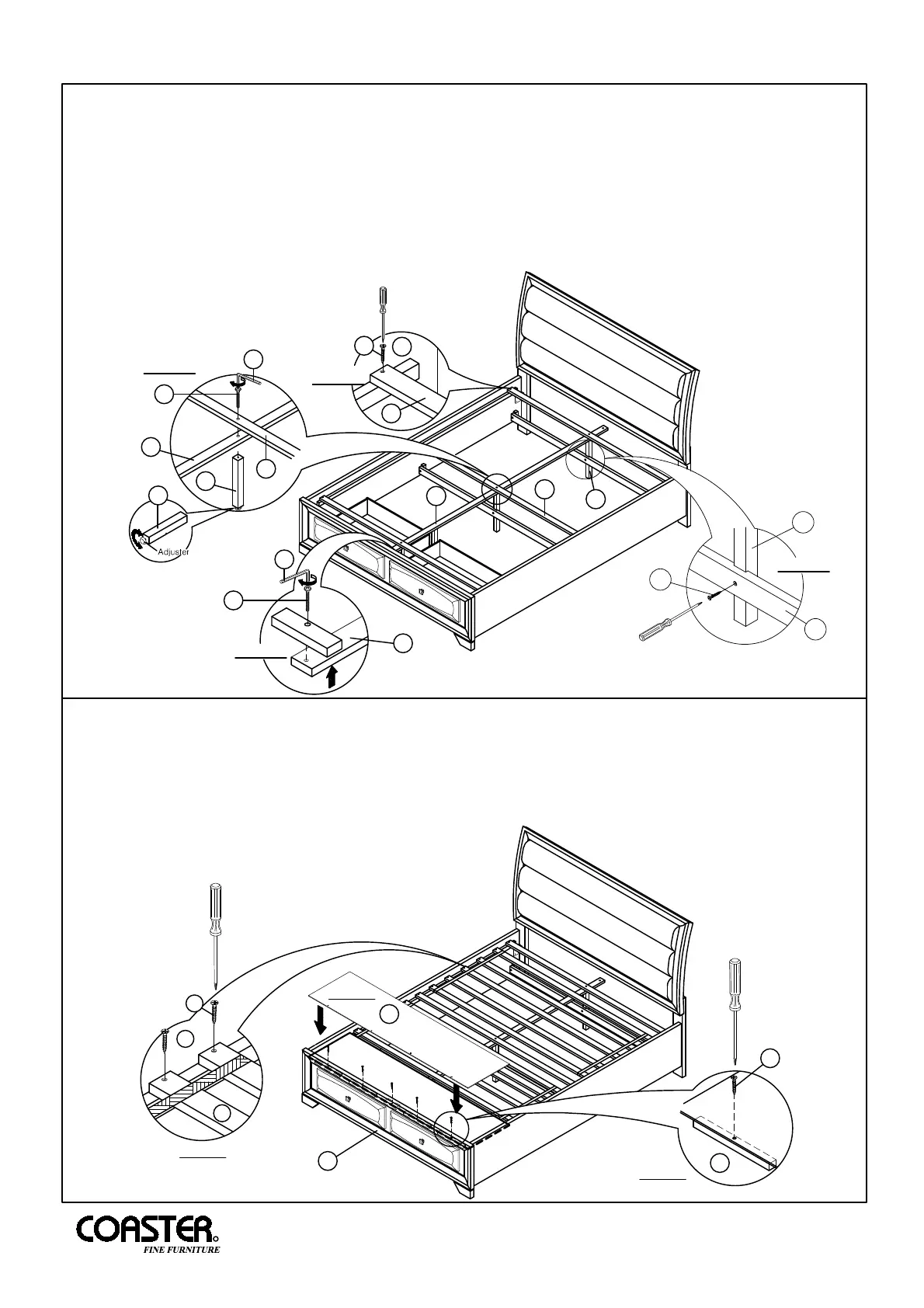

5.1 Align and fasten bed slat with 3 holes (G) to center rail (I) and bed slat support with leveler (L) using
bolt (5) and tighten with small Allen wrench (6).Adjust leveler to touch the floor.
5.2 Align and fasten center rail (I) to wood cleat at the footboard (D) using bolt (5) and tighten with small
Allen wrench (6).
6.2 Place conceal panel (E) on top of roll slat (H) and footboard (D).
ITEM : 203481Q (B1 ~ B3)
5.3 Align and fasten bed slat with 3 holes (G) to bed rails (F) using long flat head screw (9) and tighten with
Phillips head screw driver (NOT INCLUDED).
5.4 Align and fasten bottom cross bar (K) to bed slat support with leveler (L) using long flat head screw (9)
and tighten with Phillips head screw driver (NOT INCLUDED).
6.1 Align and fasten roll slat (H) to bed rails (F) using long flat head screw (9) and tighten with Phillips
head screw driver (NOT INCLUDED).
6.3 Align and fasten conceal panel (E) to wood cleat at the footboard using short flat head screw (8)
and tighten with Phillips head screw driver (NOT INCLUDED).
