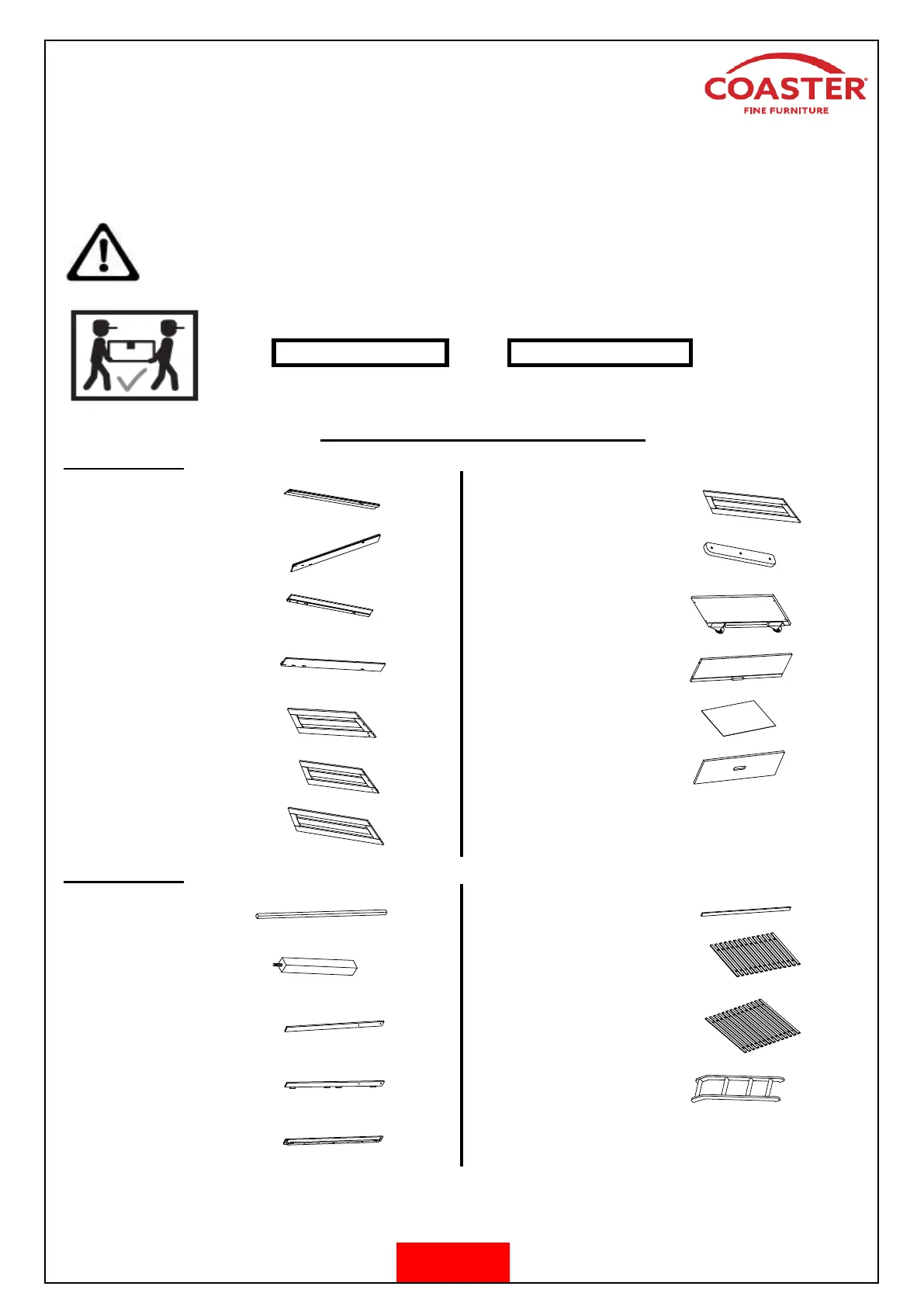

ITEM: 460228 (B1&B2)
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
WARNING!
2. This product is for home use only and not intended for commercial establishments.
30 MINUTES
B1 ( BOX 1)
AN
LEFT FRONT BED END
LEG
1PC HN
RIGHT LOWER BED
END
1PC
BN
RIGHT FRONT BED
END LEG
1PC IN
FLAT GUARDRAIL
SUPPORT
2PCS
CN
LEFT BACK BED END
LEG
1PC JN
DRAWER SIDE PANEL
WITH CASTERS
4PCS
DN
RIGHT BACK BED END
LEG
1PC KN DRAWER BACK PANEL 2PCS
EN LEFT UPPER BED END 1PC LN
DRAWER BOTTOM
PANEL
2PCS
FN
RIGHT UPPER BED
END
1PC MN
DRAWER FRONT
PANEL
2PCS
GN LEFT LOWER BED END 1PC
B2 ( BOX 2)
NN CENTER RAIL 1PC SN GUARDRAIL 4PCS
ON
CENTER RAIL
SUPPORT WITH
LEVELER
3PCS TN
UPPER BUNK ROLL
SLAT
(14PCS)
1SET
PN
UPPER BED FRONT
BED RAIL
1PC UN
LOWER BUNK ROLL
SLAT
(14PCS)
1SET
QN
LOWER BED FRONT
BED RAIL
1PC VN LADDER 1PC
RN
UPPER AND LOWER
BED BACK BED RAIL
2PCS
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
COASTERFURNITURE.COM
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
PARTS IDENTIFICATION
PAGE 2 OF 10
ASSEMBLY TIME
1.Don’ t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
