800359
ITEM:
COASTERFURNITURE.COM
PAGE 2 OF 7
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIME

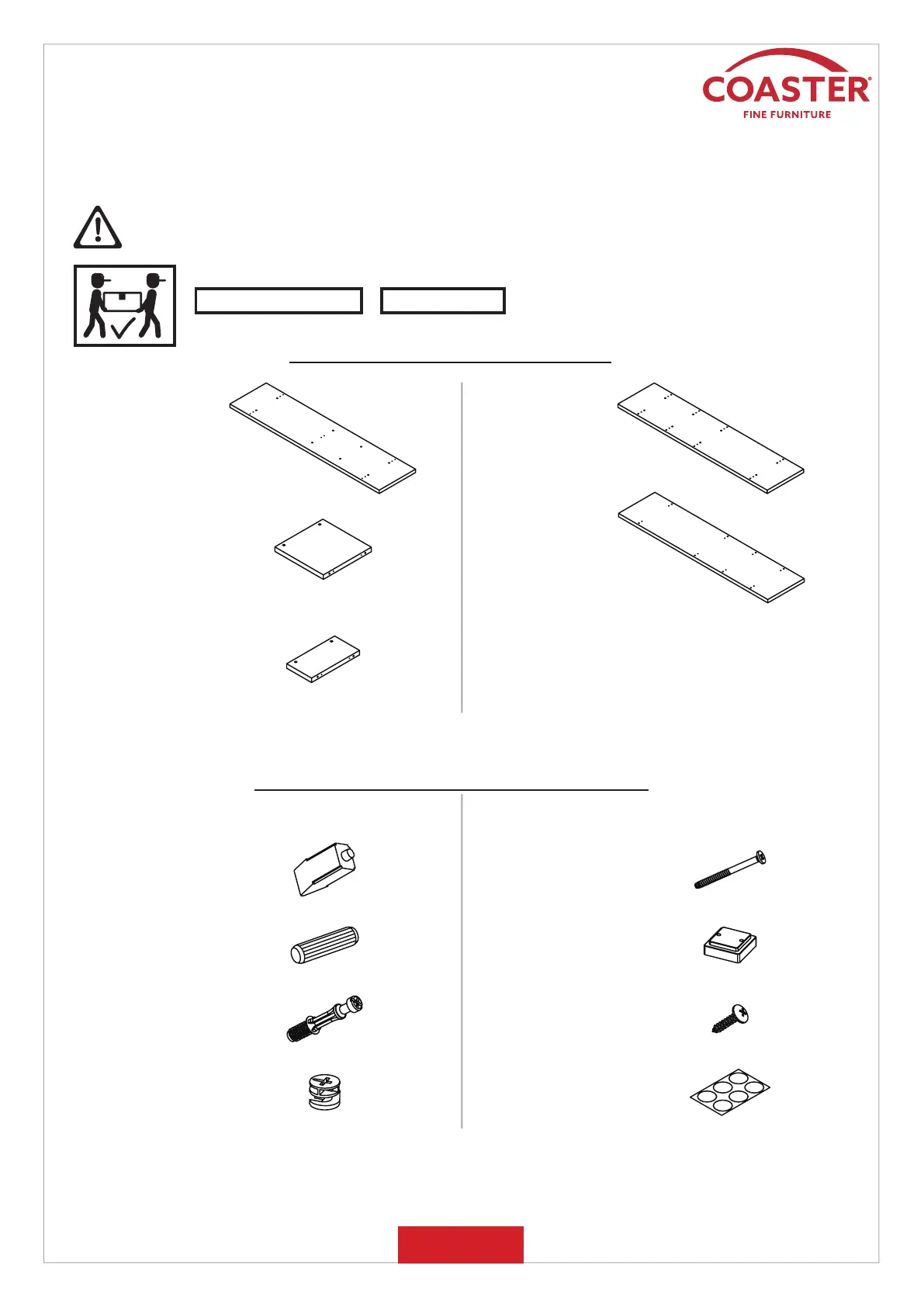

PARTS IDENTIFICATION
40 MINUTES
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
HARDWARE IDENTIFICATION
Z
NO DESCRIPTION FIGURE Q’TY
1 GLUE 40g
1PC
2
WOODEN DOWEL
Ø 8x30mm
48PCS
3
CAM BOLT
Ø 7x35.5mm SR
24PCS
4
CAM LOCK
Ø 15x12mm SR
24PCS
NO DESCRIPTION FIGURE Q’TY
5
BOLT
Ø 9.5x55mm SR
24PCS
6
FOOT
50x50x18mm
5PCS
7
SCREW FOR FOOT
Ø 5x22.5mm BLK
10PCS
8
STICKER
Ø 20mm
4PCS
A BOTTOM PANEL 1PC
B
LOWER DIVIDER
PANEL
4PCS
C
UPPER DIVIDER
PANEL
8PCS
D CROSS PANEL 2PCS
E TOP PANEL 1PC
To Next Page
