Important: Always read and follow operating instructions. • 21
Setup Instructions
Proper unit installation is necessary for
safe use and efficient operation. Proper
installation also helps protect the unit
from damage and makes service easier.
Always place safety poster and instruc-
tions near the unit.
Location

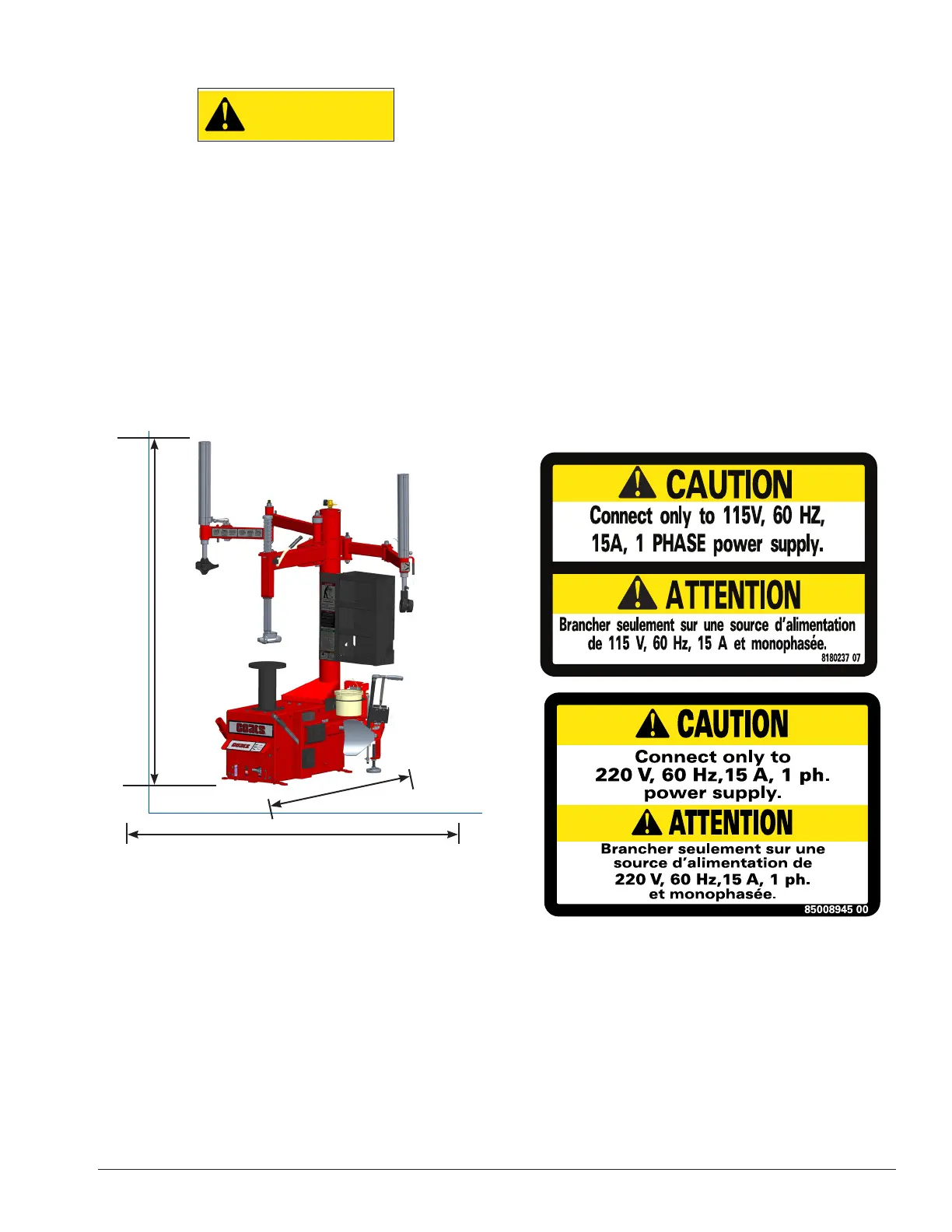

Select a location using the drawings below. The area
should provide the operator with enough space to use
the equipment in a safe manner. The area selected
should be well lit, easy to clean and should be away
from oil, grease, brake lathe chips, etc. Avoid areas
where bystanders and customers may be present.
Workspace Requirements
Floor Mounting
As Hennessy can not be certain of the environment
and conditions of the locations where the equipment
will be installed, it is recommended that the safety
manager review the shop floor conditions. Make sure
the anti-tip foot is properly adjusted, and local regula-
tory practices to determine if bolting of the equipment
to the shop floor is necessary or advisable.
Air Source
The all-air models require a 14 to 15 CFM air source
at 150 PSI. The air/electric models require a 5 CFM
air source at 150 PSI. The operating pressure range
for all models is between 110 PSI and 175 PSI at the
machine.
The unit is furnished with a 1/4" pipe thread male
fitting for easy connection. This connection is located
on the right side of the rear of the machine. A 1/4"
ID hose (or pipe) for connection to the machine
is satisfactory. Sufficient air pressure ensures good
performance.
Electrical Source
Electrical models require power as follows:
15 amp, 115V electrical circuit (1 HP motor)
15 amp, 230V electrical circuit (2 HP motor)
Refer to the caution decal that is located by the unit’s
power cord.
Refer to the serial tag located on the lower part of
the machine for specific electrical requirements for
the unit. Have a licensed electrical technician perform
any necessary changes to the power source before
plugging in the unit. The electrical source must have
a solid connection (less than 1 ohm) between ground
and building ground.
66"
74 "
88"
To Next Page
