COBIA 2016 277 CC - Forward Deck Wiring Diagram

Model Year 2016 page !34
Maverick Boat Company, Inc. • 3207 Industrial 29th St. • Fort Pierce,
Florida 34946 • (772)-465-0631 or (888)-shallow • Fax: (772) 489-2168

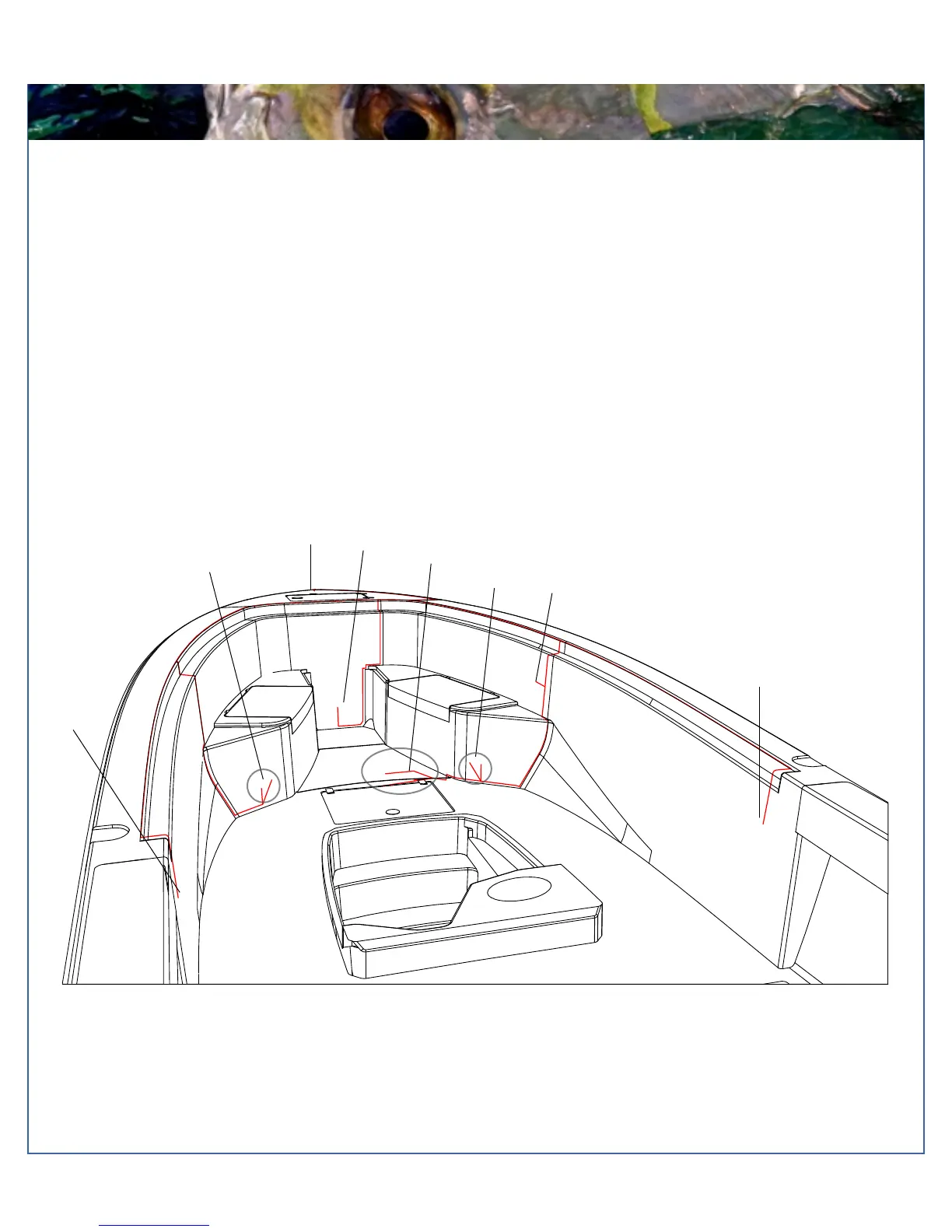

DECK WIRING DIAGRAM
4
5
6-8
9/10
11
12
1
2/3
1.
Port aft Speaker
2.
Port fwd. Speaker
3.
Port fwd. Cockpit Light
4.
Navigation Light
5.
Fwd. Cockpit Light
6.
Table Lift Power
7. Compartment Lights deck/hull connection
8. Speakers deck/hull connection
9. Starboard fwd. Cockpit Light
10. Starboard fwd. Speaker
11. Table Lift Switch
12. Starboard aft Speaker
Forward Deck Key
