COBIA 2016 277 CC - Aft Deck Wiring Diagram

Model Year 2016 page !36
Maverick Boat Company, Inc. • 3207 Industrial 29th St. • Fort Pierce,
Florida 34946 • (772)-465-0631 or (888)-shallow • Fax: (772) 489-2168

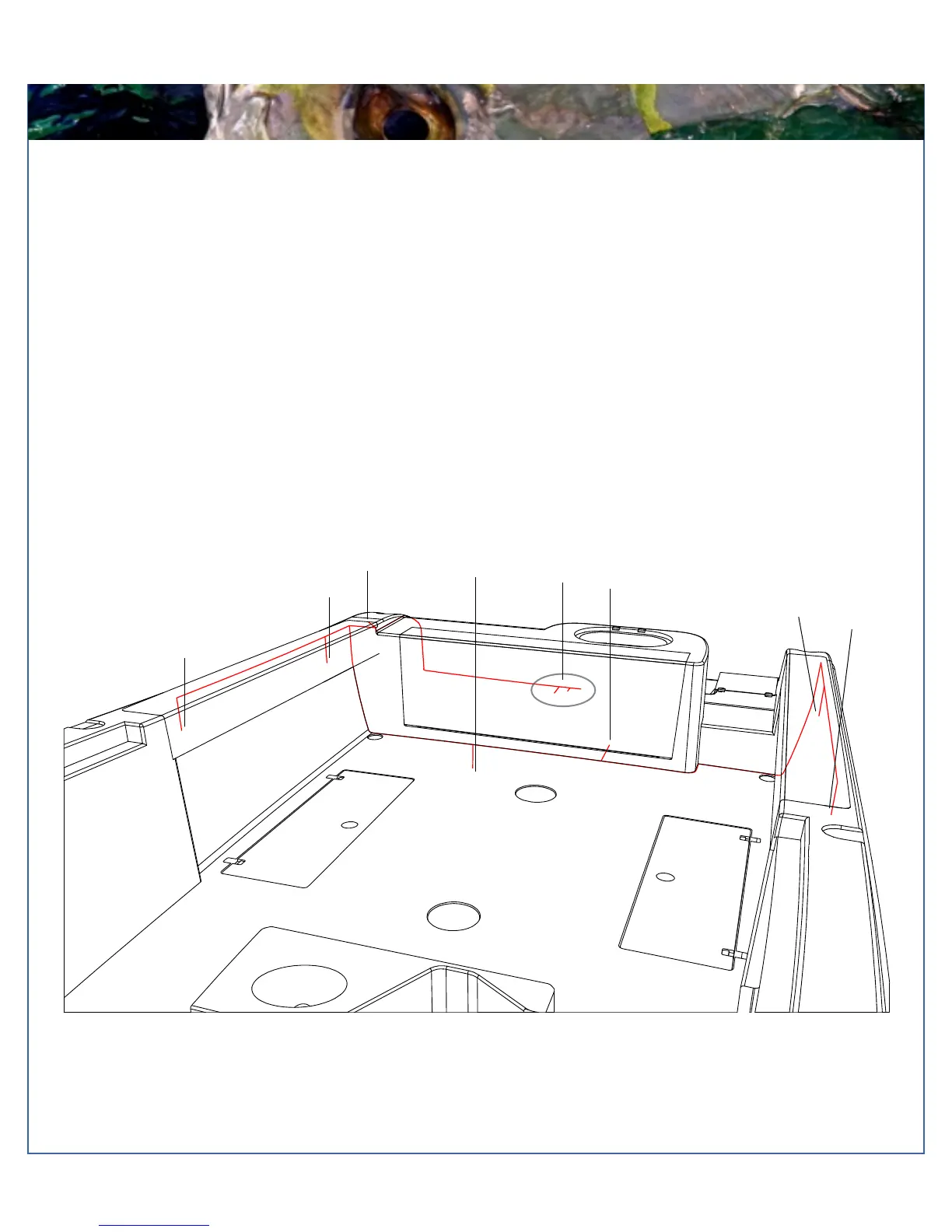

DECK WIRING DIAGRAM
Aft Deck Key
1
2
3
4
5-7
8
9
10
1. Starboard fwd. Undergunnel Light
2. Starboard aft Undergunnel Light
3. Anchor Light
4. Ground Buss
5. Bilge Hatch Power
6. Bilge Hatch Control
7. Aft Compartment Light
8. Livewell Light
9. Port aft Undergunnel Light
10. Port fwd. Undergunnel Light
