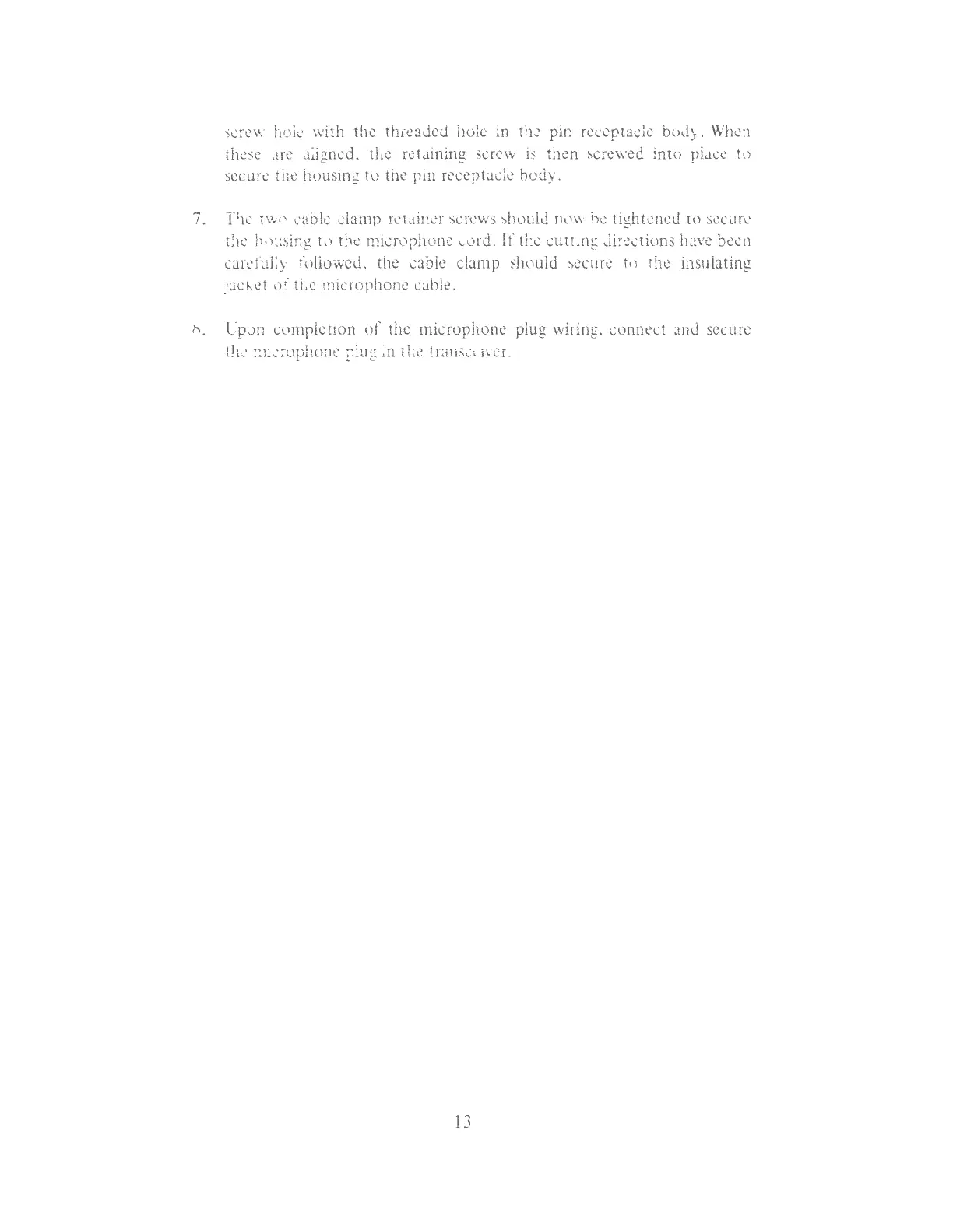

screw hole with the threaded hole in the pin receptacle body. When
these are aligned, the retaining screw
is
then screwed into place to
secure
the
housing to the pin receptacle body.
7. The two cable clamp retainer screws should now be tightened to secure
the housing to the microphone cord.
If
the cutting directions have been
carefully followed, the cable clamp should secure to the insulating
jacket
of
the microphone cable.
8. Upon completion
of
the microphone plug wiring, connect and secure
the microphone plug in the transceiver.
13
