External Devices And Connections
•
Your CobraMarine VHF radio is set up to connect auxiliary devices for navigation,
convenience, and added versatility. As is the case with the antenna, choosing these
devices is best done with the advice and guidance of a knowledgeable dealer.
Standard connectors are provided on the front and back of the transceiver.
External Speaker (Not Included)
An External Speaker can provide greater volume to hear messages than the speaker
incorporated in the CobraMarine microphone/speaker.
To Install An External Speaker:
1. Connect the wires to the External Speaker as follows:
Orange wire - +Positive connection
Black wire - -Negative connection (Black wire is common shared -Negative for
the External Speaker and PA output)
2. Make sure to solder, crimp, or twist the wires together firmly and use shrink
tubing or electrical tape to waterproof the connection.
Public Address Speaker (Not Included)
At times, it may be handy to hail other boats or give instructions to line handlers
on the dock. Your CobraMarine VHF radio can be switched to operate in the Public
Address mode through an attached PA speaker.
To Install A Public Address Speaker:
1. Connect the wires to the External Speaker as follows:
Red wire - +Positive connection
Black wire - -Negative connection (Black wire is common shared -Negative for the
External Speaker and PA output)
2. Make sure to solder, crimp, or twist the wires together firmly and use shrink
tubing or electrical tape to waterproof the connection.
Global Positioning System (GPS) Device (Not Included)
Your Cobra Marine radio does not include a built-in GPS receiver. After connecting an
external GPS receiver, your position will be continuously indicated on the LCD and,
most importantly, it will be included automatically with any DSC Distress message
you may need to send. That will take the “search” out of “search and rescue.
An external GPS input connector has been provided to allow connection to a
back-up GPS receiver.
To Install A GPS Device:
1. Install the GPS device in a convenient location according to its manufacturer’s
directions.
2. Plug-in the optional Cobra C.P.S. (Cobra Positioning System) into the provided
2.5mm jack.
3. Or using the supplied 2-wire adapter wire as follows:
Yellow wire - NMEA 0183 +Data in
Green wire - NMEA 0183 -Data in.
NOTE
Satellite acquisition time is dependent on the antenna mounting location. If the
acquisition takes too long, relocate the radio or use an external GPS receiver.
Installation And Start-Up Installation And Start-Up

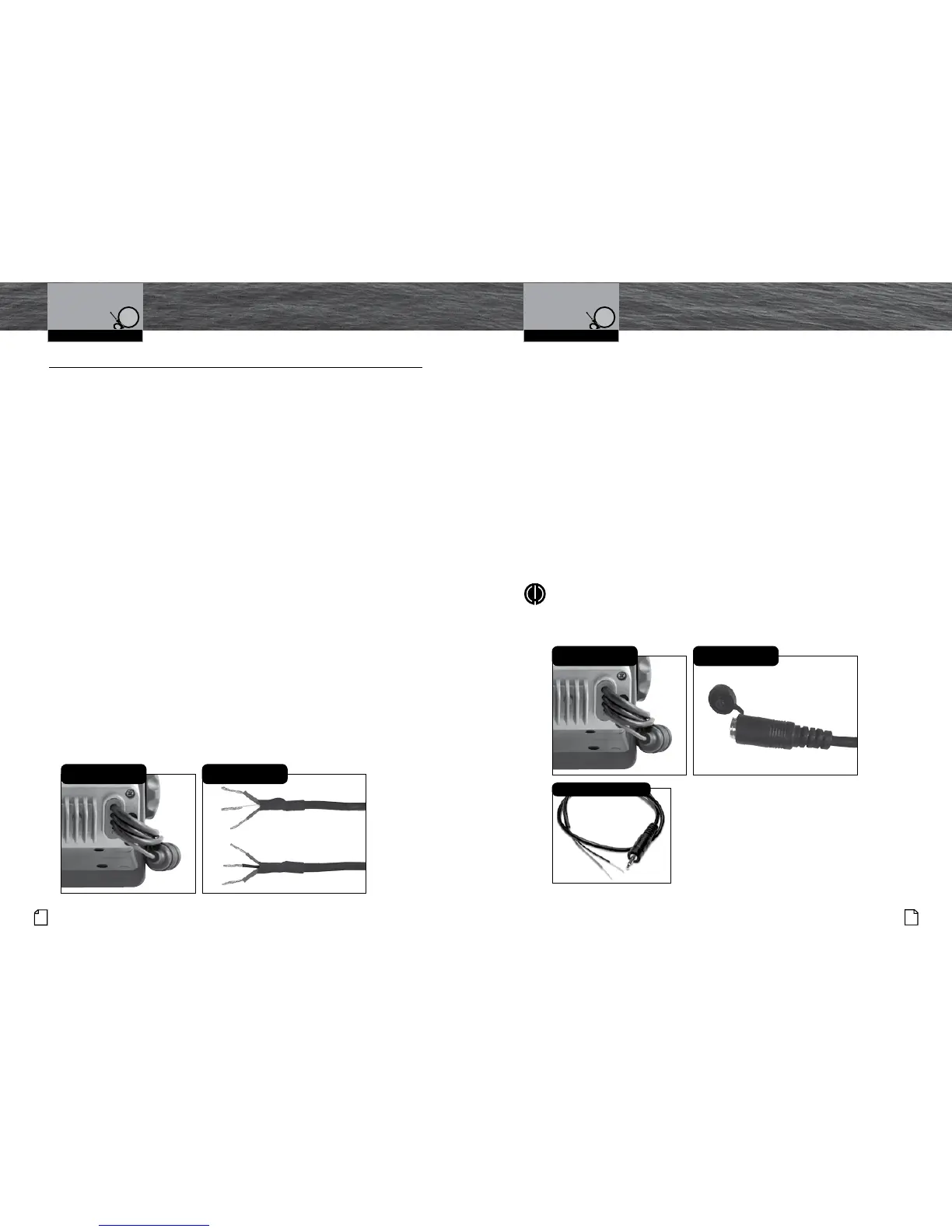

Wiring Located at Back
of Radio
Wiring for External and
Public Address Speakers
Wiring Located at Back
of Radio
Cobra Positioning
System Plug
GPS Interface Cable
To Next Page
