5. ASSEMBLY
5.1 FOLDING HANDLE
1. Fit the lower handle frame to the mower body with the bolts and handwheel nuts. Consider the height position
for the handle.
2. Fix the upper handle to the lower handle with the bolts and handwheel nuts.
3. Put the recoil starter on the right of the handle and fix the cable with the plastic collar. Locate the starter handle
on its support guide.

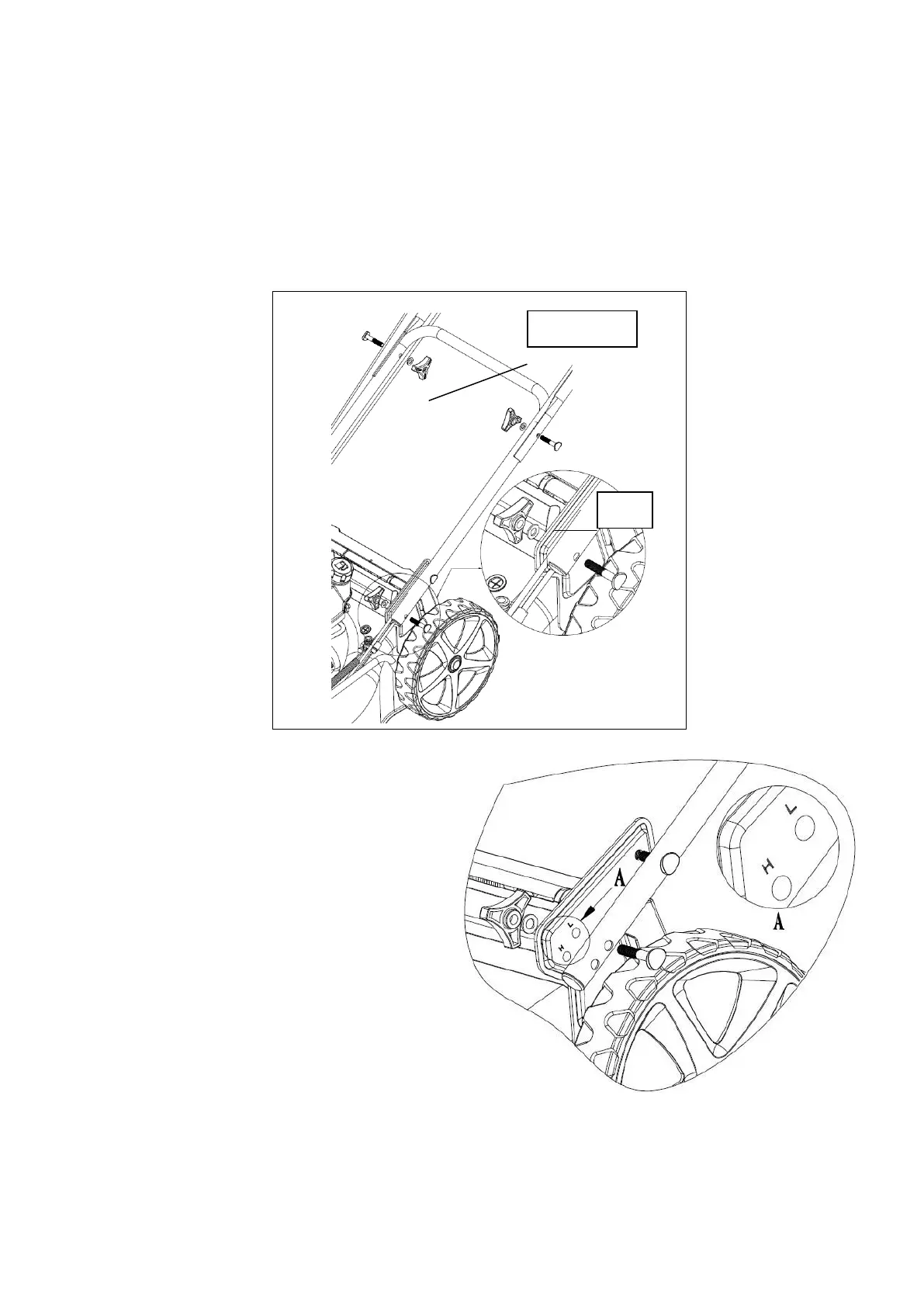

Handle bar height position adjustment:
1. If you want to adjust the height of the handle bar,
you can choose” L” or “H” two holes in left-right
Bracket to fix the handle bar with screws and knobs.
2. The “H” hole is high position of the handle bar, and
the “L” hole is low position of the handle bar.
