Cobra RM46SPH User Manual

- 8 -

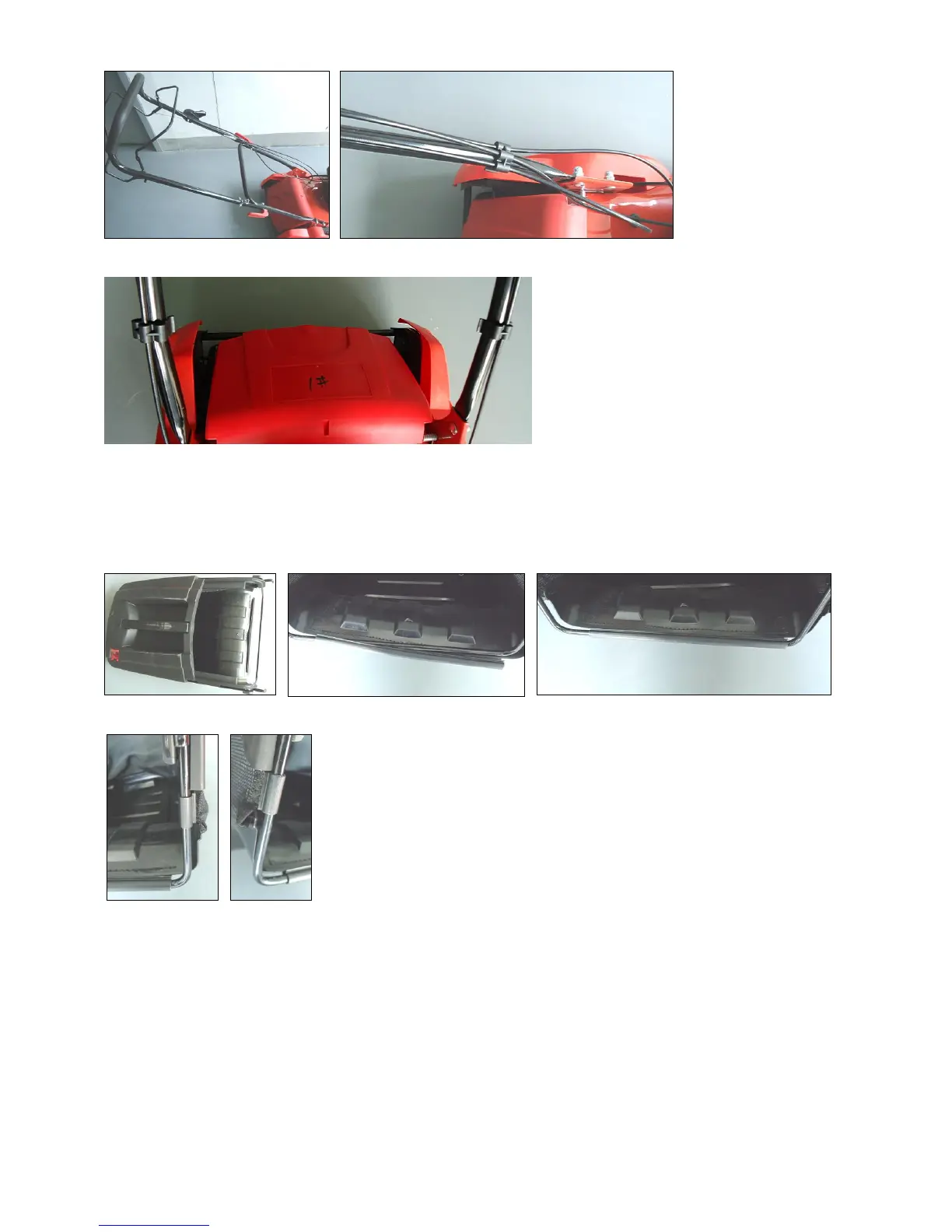

Fig.1D Fig.1E
Fig.1F
5.2 ASSEMBLE THE GRASS CATCHER
Drop the cloth bag through the metal bracket, open up the reinforced rim on the three sides by hand or using a
screwdriver. Wrap and then clench the reinforced material around the metal support brackets on the three sides
to secure the bag in position. (Fig.2A/2B/2C/2D/2E)
Fig.2A Fig.2B Fig.2C
Fig.2D Fig.2E

Cobra RM46SPH Specifications

General

Brand	Cobra
Model	RM46SPH
Category	Lawn Mower
Language	English
