Cobra RM46SPH - ASSEMBLY

- 7 -

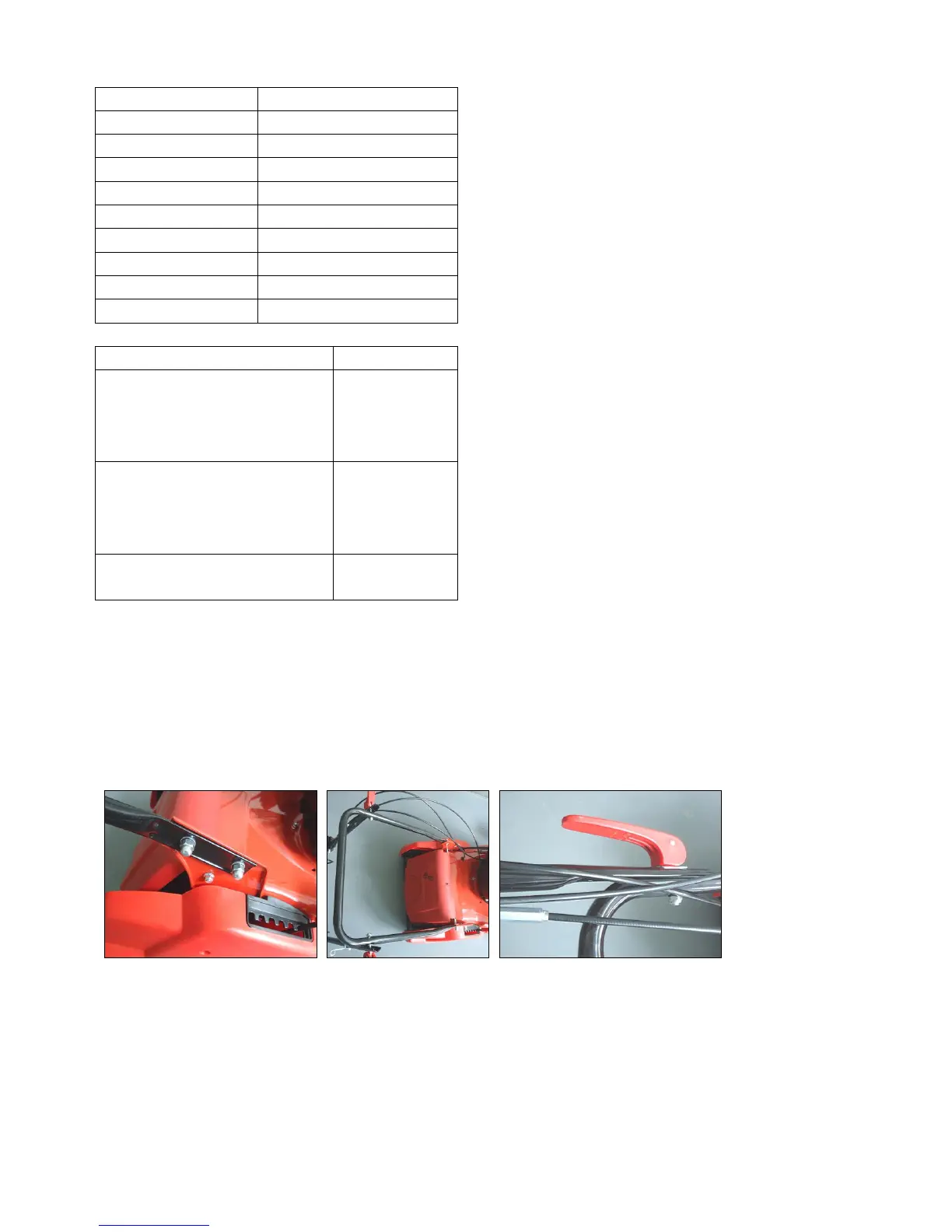

4. TECHNICAL DATA
Model
RM46SPH
Engine type
Honda GCV140
Self-Propelled
Yes
Engine Displacement
160cm³
Blade Width
460mm
Rated Speed
2800/min
Fuel Tank Capacity
0.91L
Grass catcher capacity
55L
Net Weight
34.6kg
Height adjustment:
17~75mm, 6 adjustment
RM46SPH
Guaranteed Sound pressure level
at operator’s position
(According to EN 836 Annex H &
EN ISO 4871)
82.0dB (A)
(k=3 dB (A))
Measured sound power level
Guaranteed Sound Power level
(According to 2000/14/EC)
92.2dB (A)
k= 1.84dB (A)
96dB(A)
Vibration
(According to EN 836 Annex G)
3.19m/s²
k=1,5 m/s²
5. ASSEMBLY
5.1 FOLDING HANDLE
1. Fix the lower handlebars onto the mower body with bolts, washers with a suitable spanner. (Fig. 1A/Fig.1B)
2. Release the upper handlebars for folding.
3. Push the locking lever closed to lock the handlebars in the operating position. (Fig.1C/Fig.1D)
4. Adjust the tension by turning the lock nut with a suitable spanner. (Fig.1C)
5. Attach the cable-clamp to the position shown and then attach the cable. (Fig.1E)
Fig.1A Fig.1B Fig.1C
