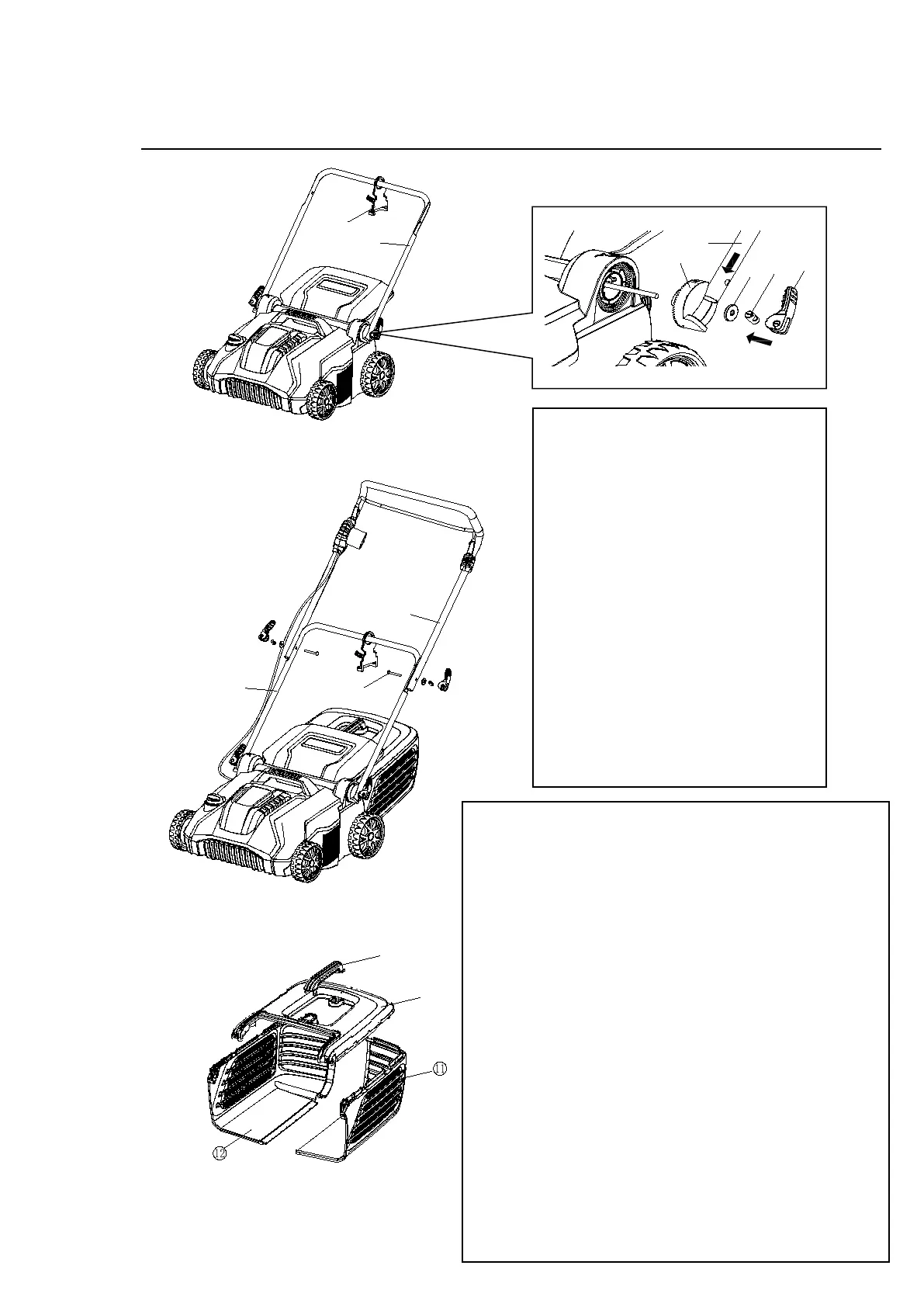

3.Assembly
A
B
B
C
1. Attach the cable hock ① to the
upper handle ② (A)
1. Insert the lower handle ② into
the knob ③, Then add the knob
③ to the bolt,
cylinder pin ⑤ to the quick
release knob ⑥ ,then add the
washer ④ to the bolt, Then put
all the parts together.
2. Use the bolt ⑦ to connect the
upper and lower handle, then add
the cylinder pin ⑤ to the quick
release knob ⑥, then add the
washer ④ to the bolt, and put all
the parts together.
A1
4. Add the grassbox handle ⑨ into the slots in the
grassbox cover ⑩ until it clicks securely into position.
Then fix the right grassbox ⑪ and the left grassbox ⑫
with the clasp. Ensure all clasp are correctly located.
Last fix the cover to the grassbox with the clasp.
5. Fitting Fully Assembled Grassbox to Lawnmower (C)
a. Lift the safety guard (13)
b. Make sure the discharge chute is clean and free
from debris
c. Locate fully assembled grassbox on to thelocation
points at the rear of the deck as illustrated
d. Locate the safety flap onto the top of the grassbox.
Ensure the grassbox is securely located.
Note: For non-grass collection the scarifier can be used
without the grassbox in position, with the safety guard
in the down position.(D)
