Page 12

ENGLISH

Fig. 3

Clockwise

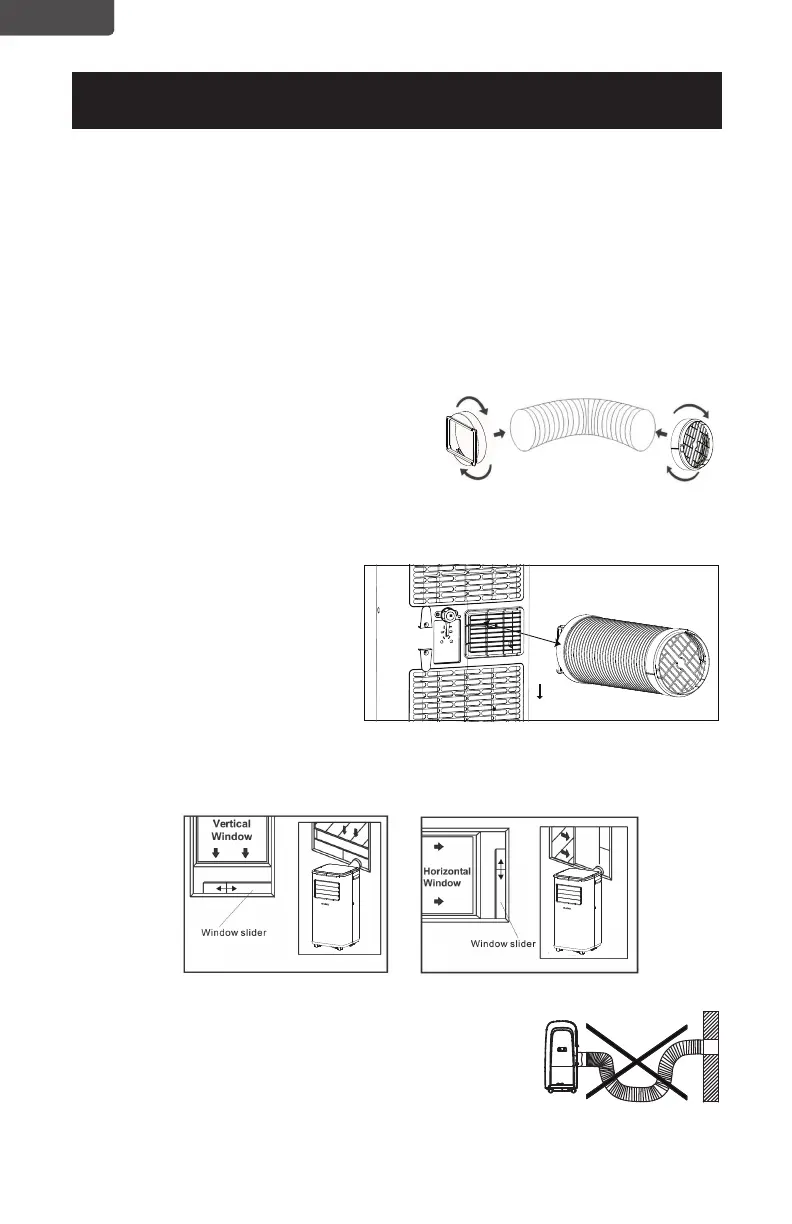

EXHAUST HOSE INSTALLATION

The air exhaust hose and hose inlet must be installed or removed from the portable

air conditioner in accordance with the way it is being used:

COOL, DEHUMIDIFY, HEAT (Heat models CCP8HJW and CCP10HJW only):

Air exhaust hose and hose inlet should be connected to the portable air

conditioner.

FAN: Air exhaust hose and hose inlet should be disconnected from the portable air

conditioner.

1. Connect hose inlet to one end of air

exhaust hose. Push hose inlet over the

end of the hose, push in slightly and then

start threading it on in a clockwise

direction. (see Fig. 1)

Connect hose outlet to other end o

f air exhaust hose. Push hose outlet over the end

of the hose, put it into the back panel vent slot slide to the left direction. (see Fig. 2)

3. Align the tabs on the hose

inlet into the slots over the

air outlet, insert and push

down. (see Fig. 3)

4. Insert the hose outlet into

the window panel.

5. Afx the hose outlet into the

window slider kit and seal.

(Fig. 4 & 5)

NOTE: The exhaust hose can be compressed or extended

moderately, but it is desirable to keep the length to a

minimum. Also make sure that the hose does not

have any sharp bends.

Hook

SET UP & USE

Fig. 4 Fig. 5

Fig. 1 Fig. 2

ENGLISH

Coby CBPAC650 User Manual
