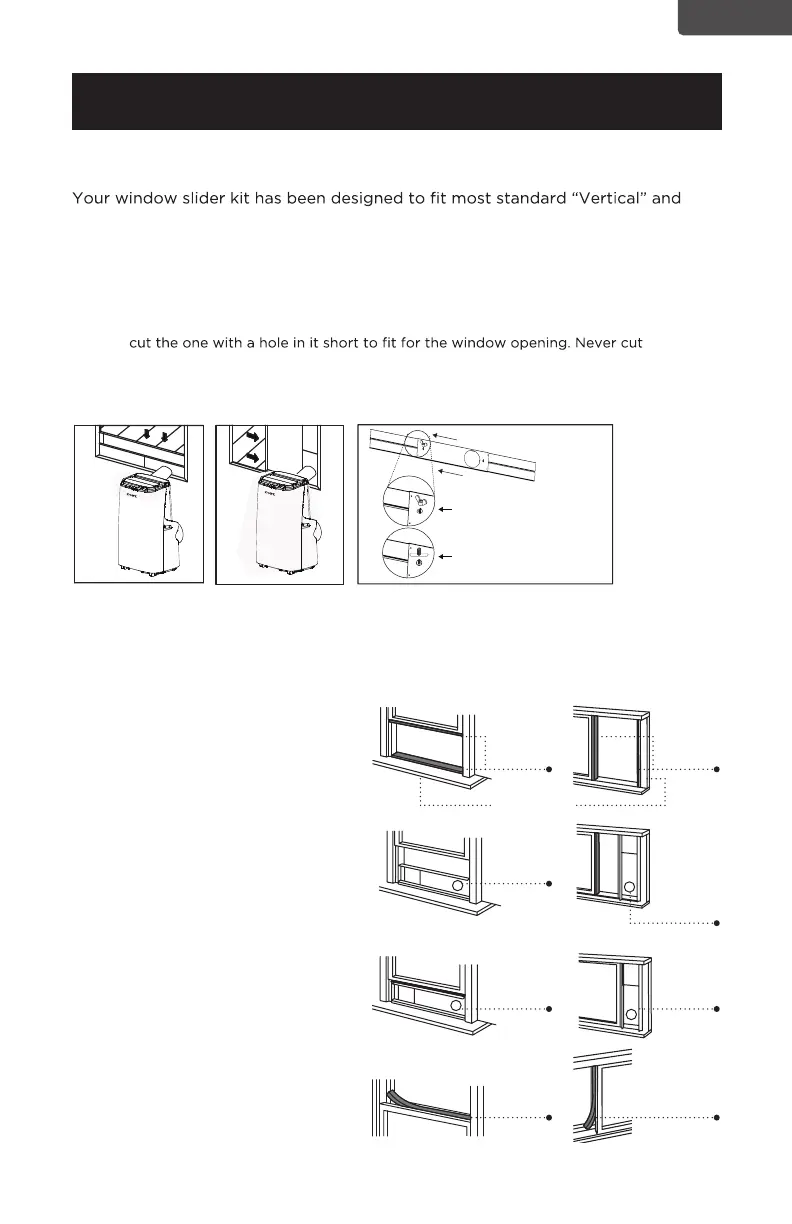

DOUBLE-HUNG SASH/SLIDING CASEMENT
WINDOW INSTALLATION
1. Cut the foam seal (adhesive type) to the proper length and attach it to the
window sash.
2.
3. Cut the foam seal (adhesive type)
to the proper length and attach it
on the top of the window.
4. Close the window securely
against the window slider kit.
5. Secure the window slider kit
to the window sash.
6. Cut the foam seal to an
appropriate length and seal the
open gap between the top window
frame and outer window frame.
Horizontal Window
Vertical Window
Window Slider Kit
SET UP & USE
Foam
Seal
Foam
Seal
Foam
Seal
Window
Slider Kit
Window
Slider Kit
Foam
Seal
Window
Slider Kit
Window
Slider Kit
Window Sash
Window slider kit can be secured
by inserting the bolt.
Put the nut on opposite side of
the hole.
ENGLISH
hole in window slider kit.
WINDOW SLIDER KIT INSTALLATION
“Horizontal” window applications; however, it may be necessary for you to
improvise/modify some aspect of the installation procedures for certain types of
window. Minimum and maximum window openings:
MAXIMUM : 59” (150 cm) MINIMUM : 29.5” (75 cm)
NOTE: · Adjust the length of the window slider kit according to the window width or height,
and secure it with the provided locking screws.
NOTE: · I f the window opening is less than 29.5” the minimum length of the window slider kit,
out the
Attach the window slider kit to the
window sash. Adjust the length of
the window slider kit according to
the width of window. Shorten the
adjustable window kit if the width
of window is less than 29.5”.
29.5”– 59”
29.5”– 59”
