INSTALLATION

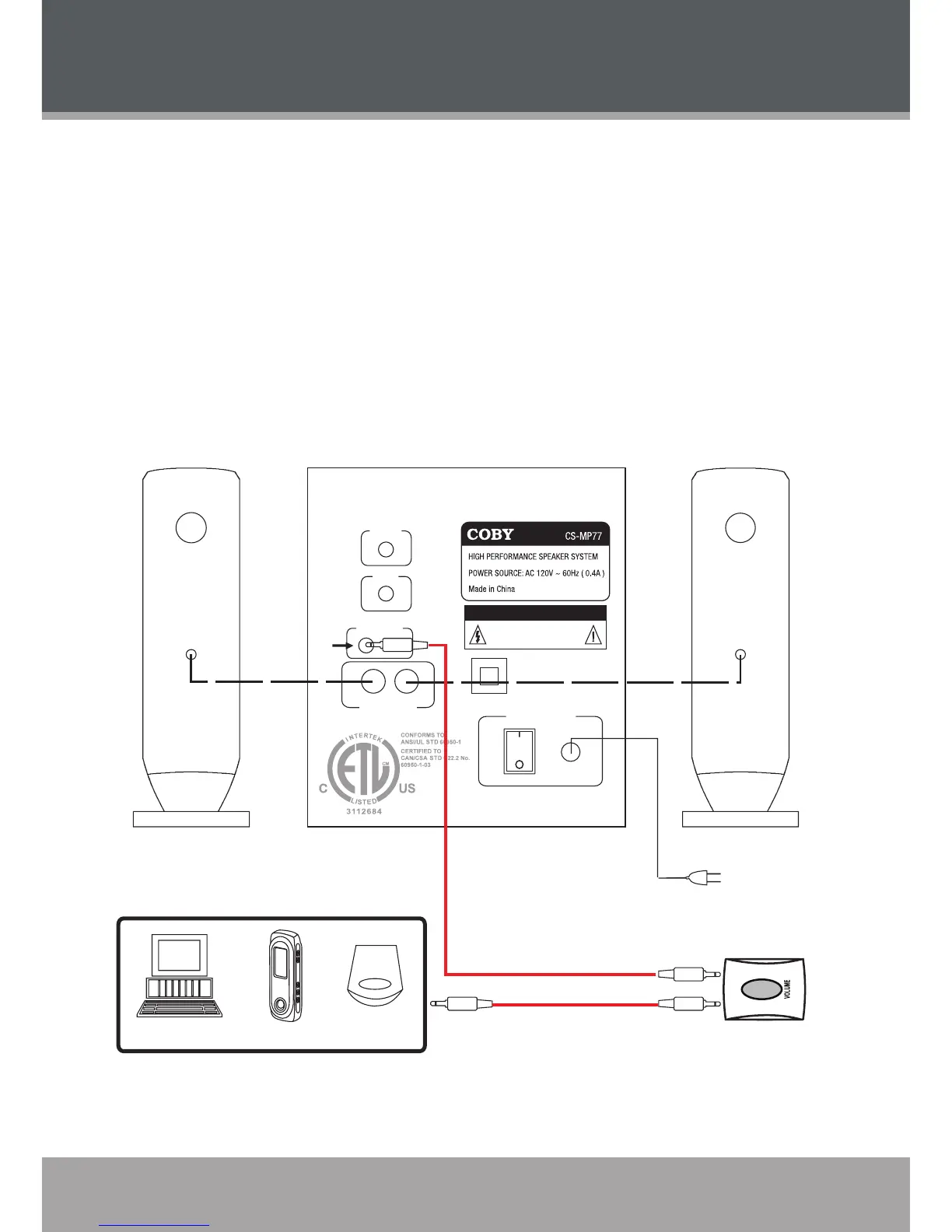

Connect the left satellite speaker to the Audio Output (L) jack of the subwoofer. Connect the
right satellite speaker to the Audio Output (R) jack of the subwoofer.
Use a 3.5mm male-to-male patch cable to connect the Audio Input jack of the subwoofer to
the Volume Control Unit (out).
Use a 3.5mm male-to-male patch cable to connect the Volume Control Unit (in) to an
external audio output device (e.g., a computer, a DVD/CD player, an MP3/PMP player, etc.)
AFTER ALL OTHER CONNECTIONS HAVE BEEN MADE, connect the AC power cord to
an AC 120V power outlet.
1.
2.
3.
4.
Subwoofer
To AC 120V
Outlet
Volume Control
Unit
External Device with
3.5mm Audio Output
Satellite
(Right)
Satellite
(Left)
3.5mm patch cable
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
LR
AUDIO OUTPUT
AUDIO INPUT
ON
OFF
INPUT
AC 220V-240V~
50Hz/60Hz
POWER SOURCE
BASS
VOLUME
L
R
MP3/PMP DVD/CDComputer
