11
Negative Lock Output (GREEN)
Negative Unlock Output (BLUE)
Negative Second Door Unlock Output (BLUE/GREEN)
Reverse Polarity (5-Wire Door locks) and Reverse Polarity with 2-step Unlock
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch.
Verification: These wires will rest at ground and register positive voltage when the lock and unlock
switches are activated.
Driver’s Door Unlock: Locate the unlock motor wire directly from the actuator inside the driver’s door.
Verification: This wire will rest at ground and register positive voltage when the driver’s door is unlocked.

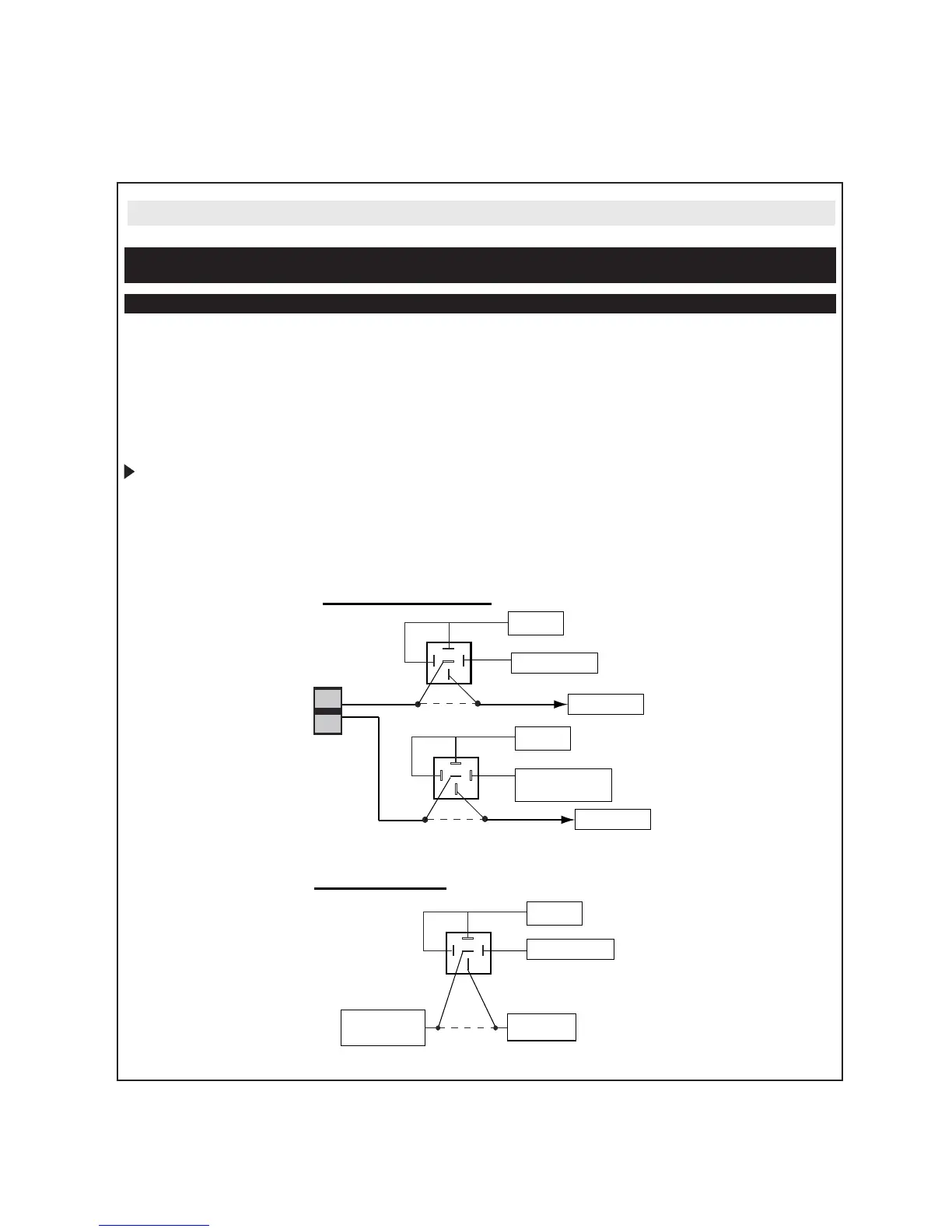

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below using (2) SPDT relays
(not supplied).
Note: When adding the 2 step unlock feature the BLUE/GREEN 2nd door unlock wire will be used to unlock all
vehicle doors on the second press of unlock. An additional SPDT relay (not supplied) is required. Connect
the relays as shown in the diagram below to unlock the driver’s door on the first press of unlock.
4. 3 PIN HARNESS
Lock
Unlock
87
87a
86
85
30
87
87a
86
85
30
87
87a
86
85
30
Fused +12 Volt
B a tte ry S ouc e
Fused +12 Volt
B a tte ry S ouc e
GR E E N (-) Lock Output
BLUE (-) Unlock Output or
BLUE/GR E EN 2nd Unlock
Output for 2 Step Unlock
For 2 Step Unlock:
Fused +12 Volt
B a tte ry S ouc e
BLUE (-) Unlock Output
From Keyless Entry
Module or Door
Unlock Relay
Drivers Door
Unlock Motor W ire
X
Cut
Reverse Polarity Locks:
X
Cut
X
Cut
To Door Lock Motor
To Door Lock Motor
To Next Page
