10
4. 3 PIN HARNESS
Negative Lock Output (GREEN)
Negative Unlock Output (BLUE)
Negative Second Door Unlock Output (BLUE/GREEN)
Positive Switching and Positive Switching with 2-step unlock feature:
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch.
Verification: These wires will register positive voltage when the lock and unlock switches are activated.
Driver’s Door Unlock: Locate the unlock motor wire directly from the actuator inside the driver’s door.
Verification: This wire will rest at ground and register positive voltage when the driver’s door is unlocked.

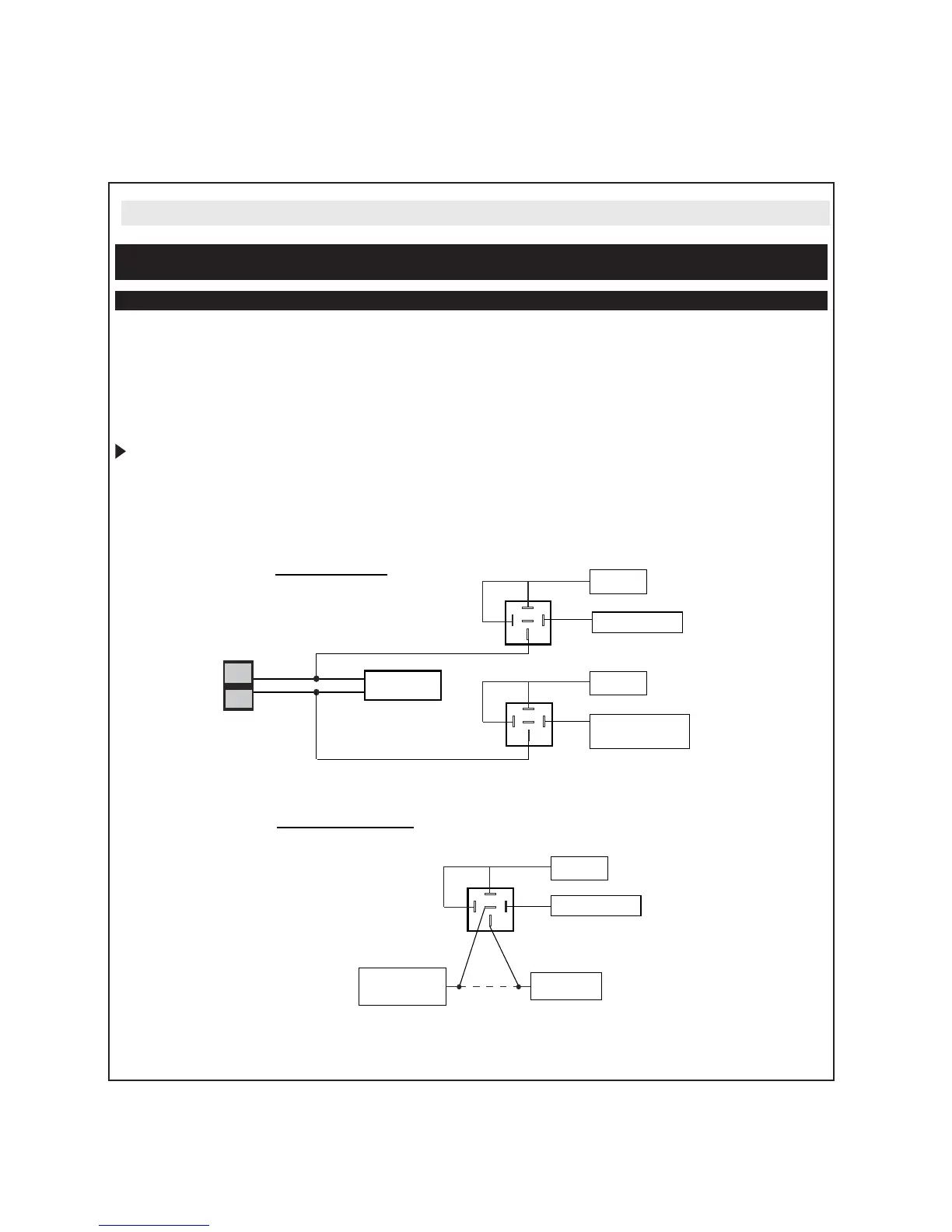

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below.
Note: When adding the 2 step unlock feature the BLUE/GREEN 2nd door unlock wire will be used to unlock all
vehicle doors on the second press of unlock. Two additional SPDT relays (not supplied) are required.
Connect the relays as shown in the diagram below to unlock the driver’s door on the first press of unlock.
Lock
Unlock
87
87a
86
85
30
87
87a
86
85
30
87
87a
86
85
30
Vehicle Door Lock
Control R elays
Fused +12 Volt
B a ttery S ouce
Fused +12 Volt
B a ttery S ouce
GREEN (-) Lock Output
BLUE (-) Unlock Output or
BLUE/GR E EN 2nd Unlock
Output for 2 S tep Unlock
For 2 Step Unlock:
Fused +12 Volt
B a ttery S ouce
BLUE (-) Unlock Output
From Keyless Entry
Module or Door
Unlock R elay
Drivers Door
Unlock Motor W ire
X
Cut
Positive Locks:
To Next Page
