Coelbo SWITCHMATIC 2 User Manual

3

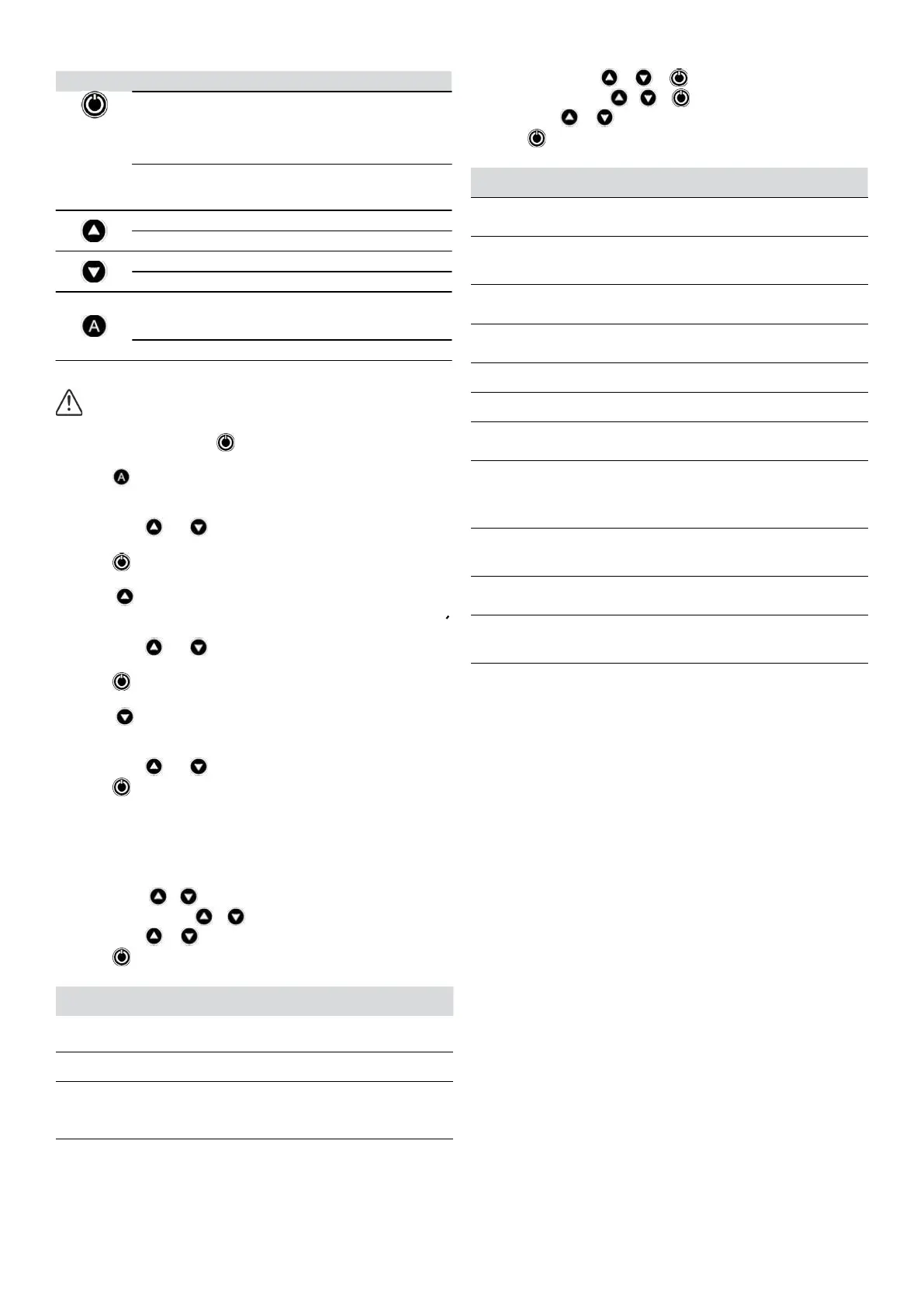

PBUTTON TOUCH ACTION
click!
From state ON: unit OFF.
From state OFF: the pump starts and keeps opera
ting until reaching Pstop.
From any confi guration MENU: the parameter
value is accepted.
HOLD
DOWN
From state ON: unit OFF.
From state OFF: the pump starts and keeps opera
ting until the pushbutton is released.
click! Pstart is displayed on the screen for 3 seconds.
3” Pstart adjustment mode.
click! Pstop is displayed on the screen for 3 seconds.
3” Pstop adjustment mode.
click!
Is displayed on the screen instantaneous current
consumption.
If it is already displayed then we switch to instanta
neous pressure view.
3” Rated current adjustment.
STARTUP diagram C
Before starting the device please read the previous sections, espe
cially “Hydraulic Installation” and “Electrical connection”.
Follow next steps:
1. Start the device by pressing .
2. Only for type SW2 set the pump rated current intensity value.
 Press during 3 seconds.
 The current intensity value is displayed on screen, LED A lights up and
display is fl ashing.
 By mean of and is adjusted the rated current refl ected in the
characteristics plate of the motor. See Note 1.
 Press for validation.
3. Set the cutin start pressure:
 Press during 3 seconds.
 The start pressure value is displayed on screen, LED START lights up
and display is fl ashing.
 By mean of and is adjusted the start pressure from 0,5 to 7
bar.
 Press for validation.
4. Set the cutout stop pressure:
 Press during 3 seconds.
 The stop pressure value is displayed on screen, LED STOP lights up
and display is fl ashing.
 By mean of and is adjusted the stop pressure from 1 to 8 bar.
 Press for validation.
5. The unit is ready to operate but more optional adjustments can be set
through basic and advanced MENUS. See the next chapter.
Remark 1: it is important to introduce exactly the rated current
specifi ed on the nameplate of the pump.
BASIC MENU + diagram C
 Press simultaneously + during 5 seconds.
 By mean of or the values can be changed.
 Press for validation.
 The parameters sequence is:
it TYPE SYSTEM REACTION
FACTORY
SETTING
1 BAR P
We can select the pressure units displayed
beetween bar and psi.
bar
2 rc0 rc1
Fastcycling alarm activated rc1 or disabled
rc0.
rc0
3 r.01 r.99
Only if fastcycling alarm has been activated in
the previous step rc1. It can be choosed the
maximum time period between 3 consecuti
ve starts that will be considered fast cycling
between 1 sec. and 99 sec.
5 se
conds
4 Sb0 Sb1
Standby mode activated Sb1, for low power
consumption, or disabled Sb0.
Sb0
ADVANCED MENU + +
 Press simultaneously + + during 5 seconds.
 By mean of or the values can be changed.
 Press for validation.
 The parameters sequence is:
it TYPE SYSTEM REACTION
FACTORY
SETTING
1 nc no
Select the operation MODE as a conventio
nal pressure switch nc = normally closed or
reverse no = normally open.
nc
2 E00 E01/02
Only Switchmatic2. Select the operation
mode Individual E00 or Master/Slave E01/
E02 in case of be assembled in groups of
two pumps.
E00
3 d.05 d.1
Only Switchmatic 2. Sets the minimum
diff erential between Pstart 1 and Pstart 2
and/or Pstop 1 and Pstop 2.
d.05
4 ct0 ct9
Sets a time delay between 0 and 9 seconds
to the start is not available in synchronized
operation mode.
ct0
5 dt0 dt9
Sets a time delay between 0 and 9 seconds
to the stop.
dt0
6 Ar0 Ar1
Activation of the automatic restore system
ART Ar1 o disable Ar0.
Ar0
7 d0.5 d1.5
Sets the minimum diff erential between
Pstart and Pstop values between 0.5 bar 7,0
psi and 1.5 bar 21.7 psi.
0,5 bar
7,0psi
8 P0.0 Px.x
It allows setting a minimum operating
pressure under which the device would
determine dryrunning operation. It is very
usefull in the basic model SWITCHMATIC
where there is no reading of current intensi
ty drawn. See Note 2.
0 bar
0 psi
9 t05 t99
Set the time period between 5 and 99
seconds below the minimum operating
pressure that will be considered a dry
running operation.
20”
10 c10 c30
It allows setting a % of nominal current
above which the device will activate the
overcurrent protection.
c20
11 dr0 dr1
Only for SWITCHMATIC 2. It allows the
activation of accurate dryrunning detection
DR1 or to disable it DR0. See chapter
ACCURATE DRYRUNNING DETECTION.
dr0
Remark 2:
Basic SWITCHMATIC can only detect dryrunning operation
through the minimum pressure. This means that plumber must
determine the water column of the installation, the start pressu
re of the pump and place the minimum pressure below the start
pressure.
It can also occur that pumping system is running out of its curve so
that the pump is unable to provide the minimum pressure because
the fl ow requirement is excessive. In this case SWITCHMATIC would
activate a false dryrunning alarm.
If these concepts are not clear, it is preferable not confi gure this
protection or install the SWITCHMATIC 2 with accurate and easy
setting of dryrun detection.
