Coleman 3000 SERIES User Manual

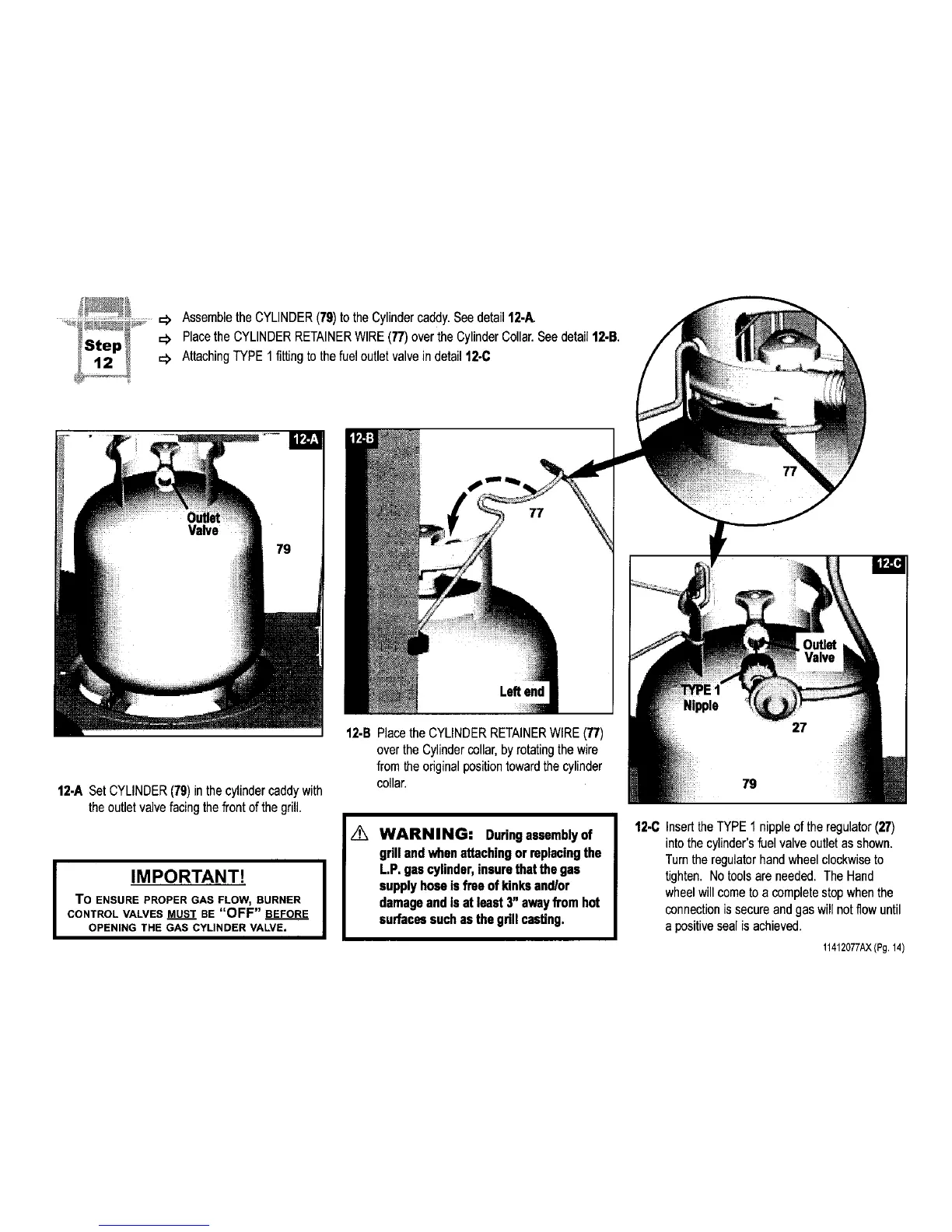

Assemblethe CYLINDER(79)to the Cylindercaddy.Seedetail 12.A.
Placethe CYLINDERRETAINERWIRE(77)over the CylinderCollar.Seedetail 12-B
AttachingTYPE 1fi_ng to the fuel outlet valvein detail 12-C
12-A Set CYLINDER(79)in the cylindercaddywith
the outletvalve facingthe front of the grill
IMPORTANT!
TO ENSURE PROPER GAS FLOW, BURNER
CONTROL VALVES MUST BE "OFF" BEFORE
OPENING THE GAS CYLINDER VALVE.
77
Leffend
12-B Placethe CYLINDERRETAINERWIRE (77)
overthe Cylindercollar,byrotatingthe wire
from the originalpositiontowardthe cylinder
collar.
/_ WARNING: Duringassemblyof
grilland whenattachingor replacingthe
L.P.gas cylinder,insurethat the gas
supply hoseis free of Idnksand/or
damageandis at least 3"awayfromhot
surfacessuchas the grillcasUng.
27
79
12-C InserttheTYPE 1 nippleof the regulator(27)
into the cylinder'sfuel valveoutletas shown.
Turntheregulatorhandwheelclockwiseto
tighten,Notoolsare needed. TheHand
wheelwillcometoa completestopwhenthe
connectionis secure and gaswillnotflowuntil
a positiveseal is achieved.
11412077AX{Pg.14)
