Coleman 3000 SERIES User Manual

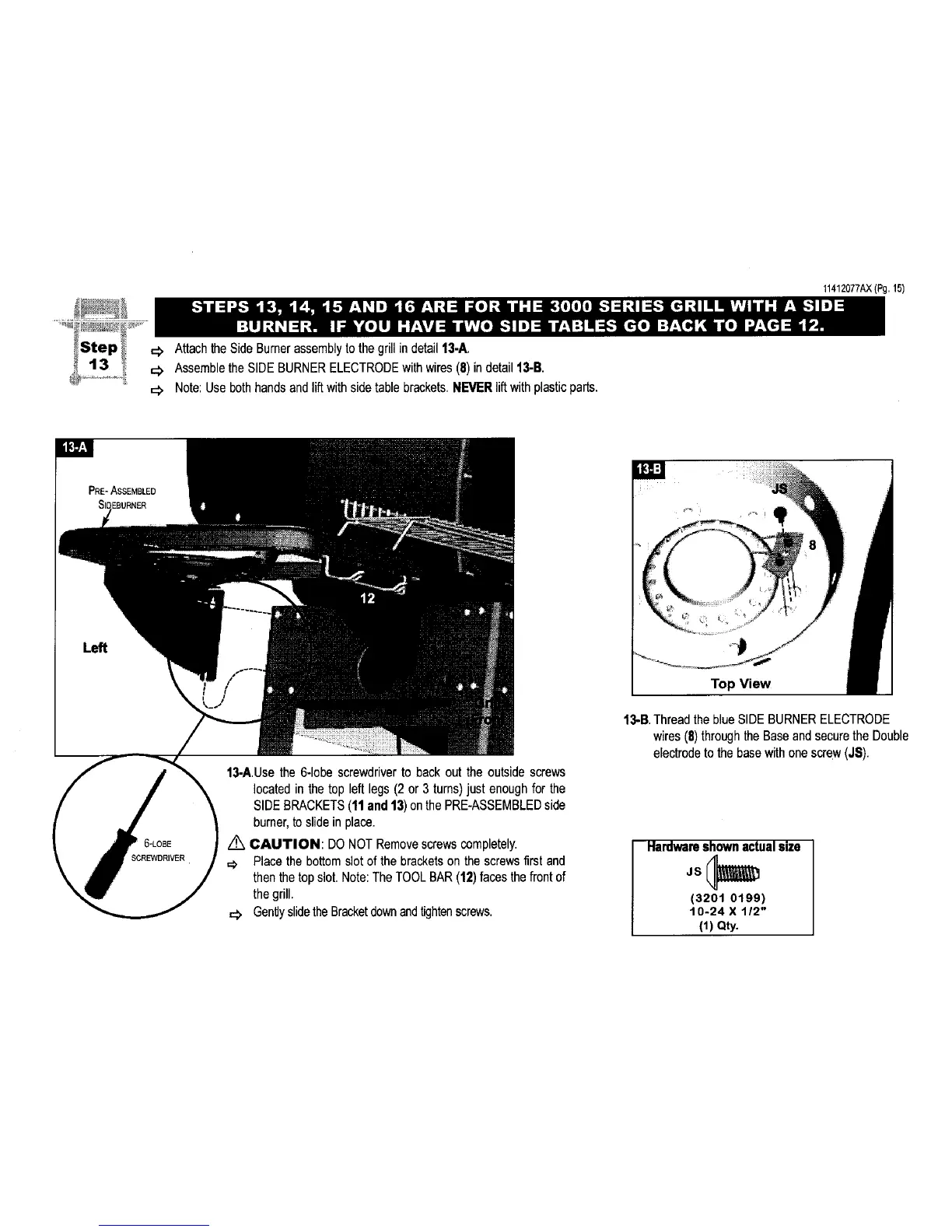

11412077AX(Pg.15)
Attachthe Side Burnerassemblytothe grillin detail 13.A
c_ Assemblethe SIDEBURNERELECTRODEwith wires(8) in detail13-B,
Note:Useboth hands andlift with sidetable brackets.NEVERlift with plasticparts.
Left
Top View
6-LOBE
SCREWDRIVER ,
13-A.Usethe 6-lobe screwdriverto back out the outside screws
located in the top left legs (2 or 3 turns) just enough for the
SIDEBRACKETS(11and13)on the PRE-ASSEMBLEDside
burner,to slidein place.
CAUTION: DO NOT Removescrewscompletely.
Place the bottomslot of the bracketson the screws first and
thenthe top slot.Note:The TOOLBAR(12) facesthe front of
the grill.
GenlJyslidetheBracketdownandtightenscrews.
13-B.Threadthe blue SIDE BURNERELECTRODE
wires (8)through the Baseandsecurethe Double
electrodeto the basewith onescrew (JS).
Hardwareshownactualsize
(3201 01991
10-24 X tl2"
(1) aty,
