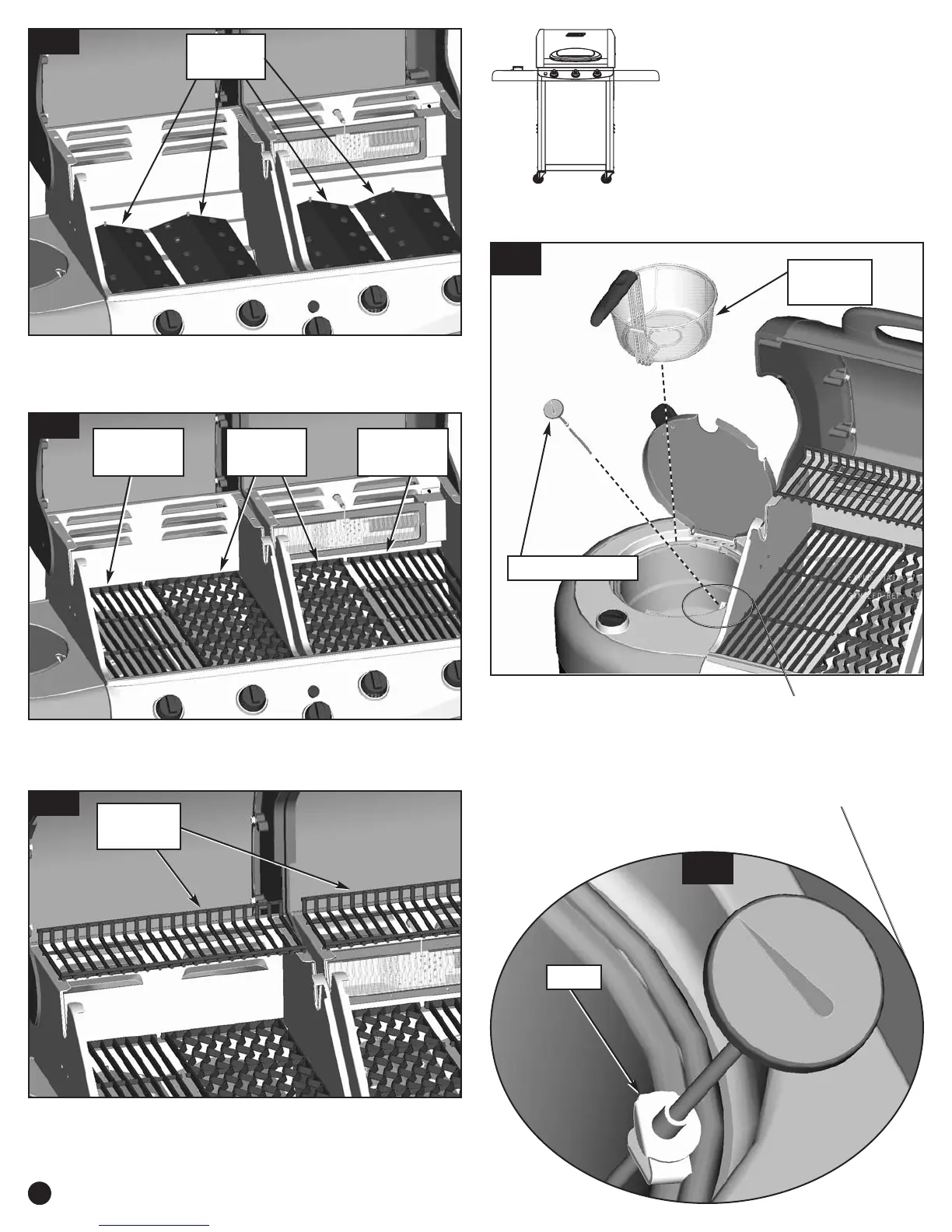

21-C. Install four Cooking Grates with smooth surface down.
ÖÖ
Locate the Power Grates in the center positions.
21-C
21-B. Install four Heat Tents™ over the Burners.
ÖÖ
The Heat Tents™ are located using the alignment pins.
21-D. Place the Warming Racks in the back of the Firebox.
ÖÖ
Align posts into holes.
21-D
Heat
Tents™
Standard
Grate
Power
Grates
Standard
Grate
Warming
Racks
ÖÖ
Place Basket and
Thermometer in the Fryer
Assembly.
Step
22
22-A
Fryer
Basket
Thermometer
22-B
22-A. Place the Basket and Thermometer in the Fryer
Assembly.
ÖÖ
Use the Tab on the Thermometer to keep it securely in
place in the reservoir (See Fig 22-B).
Tab
