ÖÖ

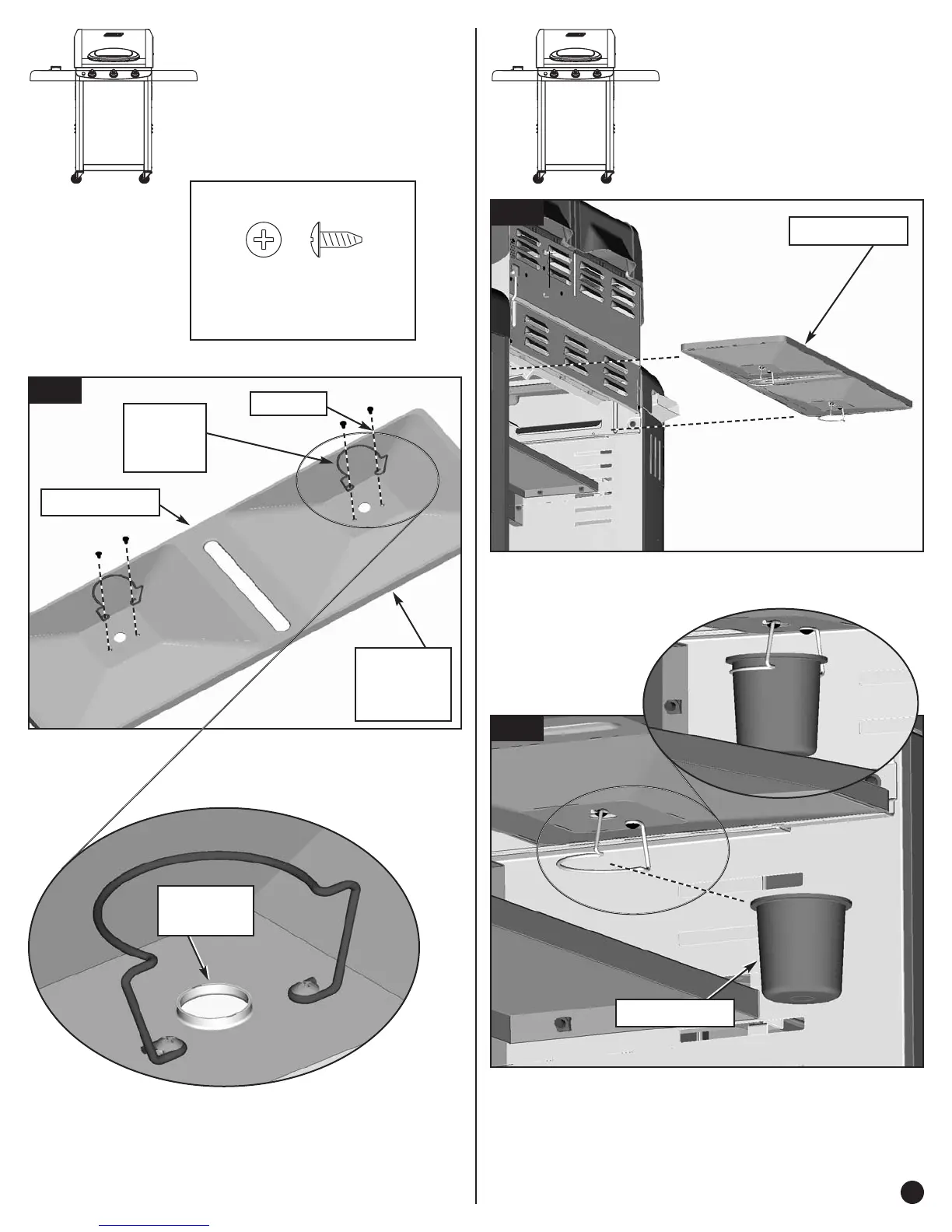

Assemble two Grease Cup
Supports to the Grease Pan.
Note: The Grease Pan is shown
up-side-down during this step.
23-A
(VP)
Self Tapping Screw
(4) Qty.
Hardware shown actual size
VP (x4)
Grease
Cup
Support
Note: Lip
is up.
23-A. Attach the Grease Cup Support to the Grease Pan with
two self-tapping screws (VP).
Step
23
Note:
Flange is
down.
Grease Pan
ÖÖ
Install the Grease Pan.
ÖÖ
Install two Grease Cups.
24-A
24-B
24-A. Slide the Grease Pan Assembly into the back of the grill.
24-B. Place the Grease Cups into the Grease Cup Supports.
Note: Pull the Grease Pan outward slightly for easier access
when installing/removing the Grease Cups.
ÖÖ
After the Grease Cups are installed, push the Grease
Pan forward until it contacts the location stops.
Grease Cup
Grease Pan
Step
24
27
