Coleman 8450 Series - Electronic Igniter Battery Setup

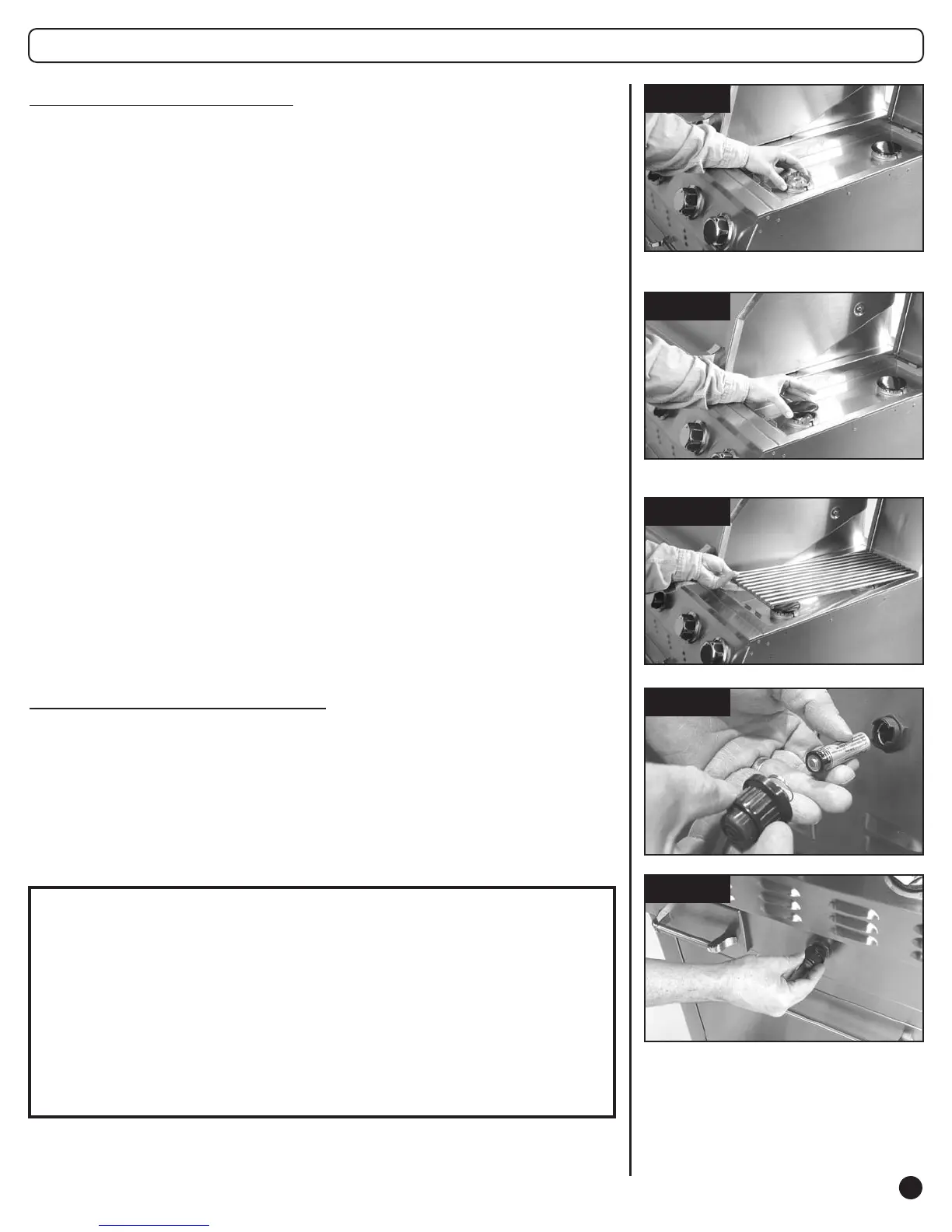

Grill Assembly — 8450 Series
1.
Install the burners and caps (Fig. 6 and Fig. 7).
Fig. 6
Fig. 7
Fig. 8
2.
Install the grate over the burners (Fig. 8).
Side Burner Installation
Fig. 9
Igniter Battery Installation
1.
The AA battery, spring and igniter cap must be installed before
using (Fig. 9).
2.
Install the AA battery, negative end first.
3.
Slide the spring assembly over the battery.
4.
Screw the igniter cap onto the igniter (Fig. 10).
Fig. 10
Test the Igniter:
A spark should appear at electrode tips.
If the spark does not appear:
-Check the wire connections to the electrode module.
-Check the proper assembly of a fresh AA battery.
NOTE: It does not matter which ignition wire goes to which tab
on the electrode module.
11
