Coleman 8450 Series User Manual

IMPORTANT: Remove all protective plastic film from stainless steel parts prior to assembly/use.
This film is installed at the factory to prevent damage that could occur during shipment and
handling.

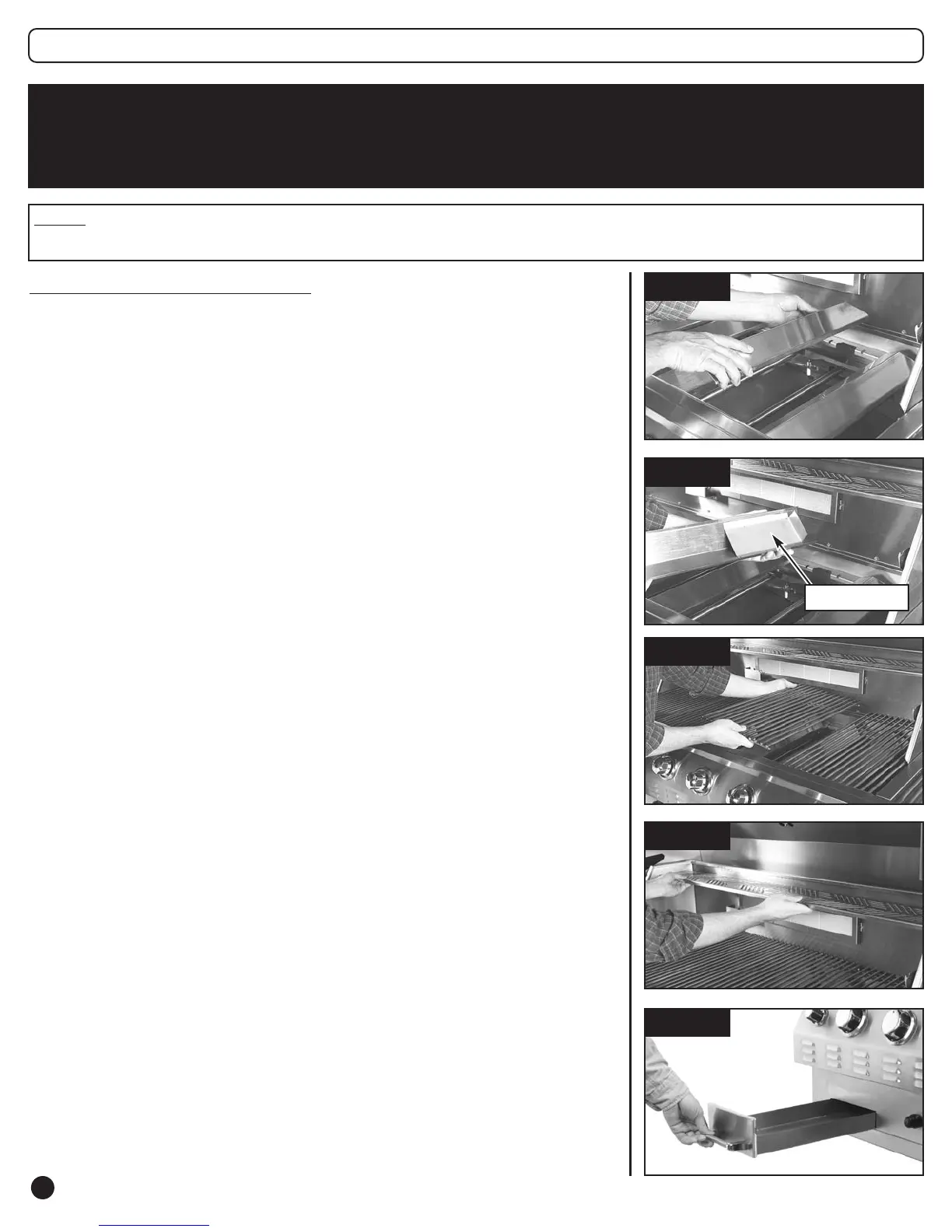

Grill Assembly — 8450 Series
Fig. 5
1.
Insert the row of six heat tents with the triangle ridges
facing up (Fig. 1). Notice that the heat shields that are
welded underneath the heat tents are placed toward the
back of the grill (Fig. 2).
Interior Parts Installation
Fig. 1
Fig. 3
Fig. 4
2.
Install the four cooking grates on the ledges provided on the grill
to create your cooking surface (Fig. 3).
4.
Remove the labels from the drip trays. Install the drip trays by
sliding them into position as shown (Fig. 5).
Fig. 2
Heat Shield
3.
Place the warming shelf on the support brackets. The ends of the
warming rack rest on the support brackets (Fig. 4).
NO
TE: Some of the illustrations in this manual apply to more than one grill model. Features such as the
cart, doors, and side tables, are not provided with the 8450 Series grill.
