5

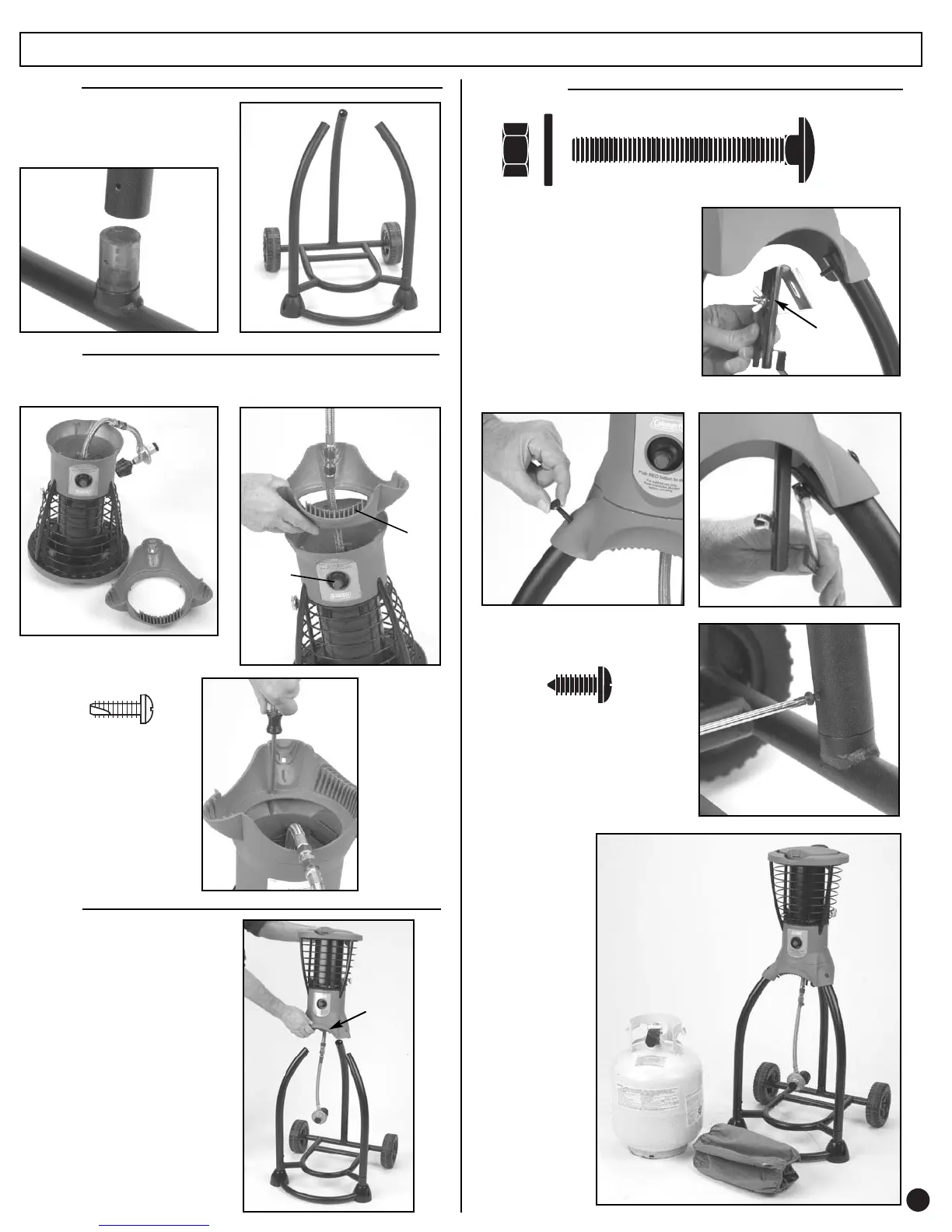

Assembly cont.
■ Turn the Base over.
■ Install legs to base. All Legs are
identical.
■ Do not install screws until Step 7.
■ Install Retaining Screws at
bottom of Legs.
Step 5
■ Unit is now pre-
pared for tank
installation.
■ Turn Head Assembly over while
holding lid closed.
■ Set Head Assembly on legs with
Handle positioned as shown.
Step 7 cont.
Step 6
■ Turn Head Assembly over while
holding Lid closed.
■ Attach Collar to Head Assembly.
■ Align ribs on Collar with Ignitor.
■ Install screws and tighten.
Ignitor
Ribs
on
Collar
■ Install Tank Retainer at Leg
position opposite the Handle Grip.
Tank
Retainer
Handle
Grip
(Actual size)
(Actual size)
(Actual size)
Step 7
■ Install Carriage Bolts, Washers, Nuts.
■ Tighten Retaining Screws and
Nut on the Tank Retainer.
To Next Page
