Fig. 3
■ Assemble WINDBAFFLES to LID. (Fig. 3)
Fig. 4
■ Install drip tray below right side of grill. (Fig. 4)
Fig. 5
■ Install grill with raised edge in back. (Fig. 5)
Fig. 7
Fig. 6
■ Turn off regulator
valve. (Fig. 6)
■ Screw regulator into grill hand tight. (Fig. 7)
English-4
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean.
Inspect propane cylinder and grill propane
connections for damage before attaching.
• During set up, check all connections and fit-
tings for leaks using soapy water. Never use a
flame. Bubbles indicate a leak. Check that the
connection is not cross-threaded and that it is
tight. Perform another leak check. If there is
still a leak, remove the cylinder and contact
Coleman for service or repairs.
• Use as a cooking appliance only. Never alter
in any way or use with any device or part not
expressly approved by Coleman.
• Clean grill frequently to avoid grease accumu-
lation and possible grease fires.
Technical
Characteristics
Input: 11,000 BTU/H
Category: Pressure regulated propane
Fuel:
16.4 oz. disposable propane cylinders
Regulator: 9924

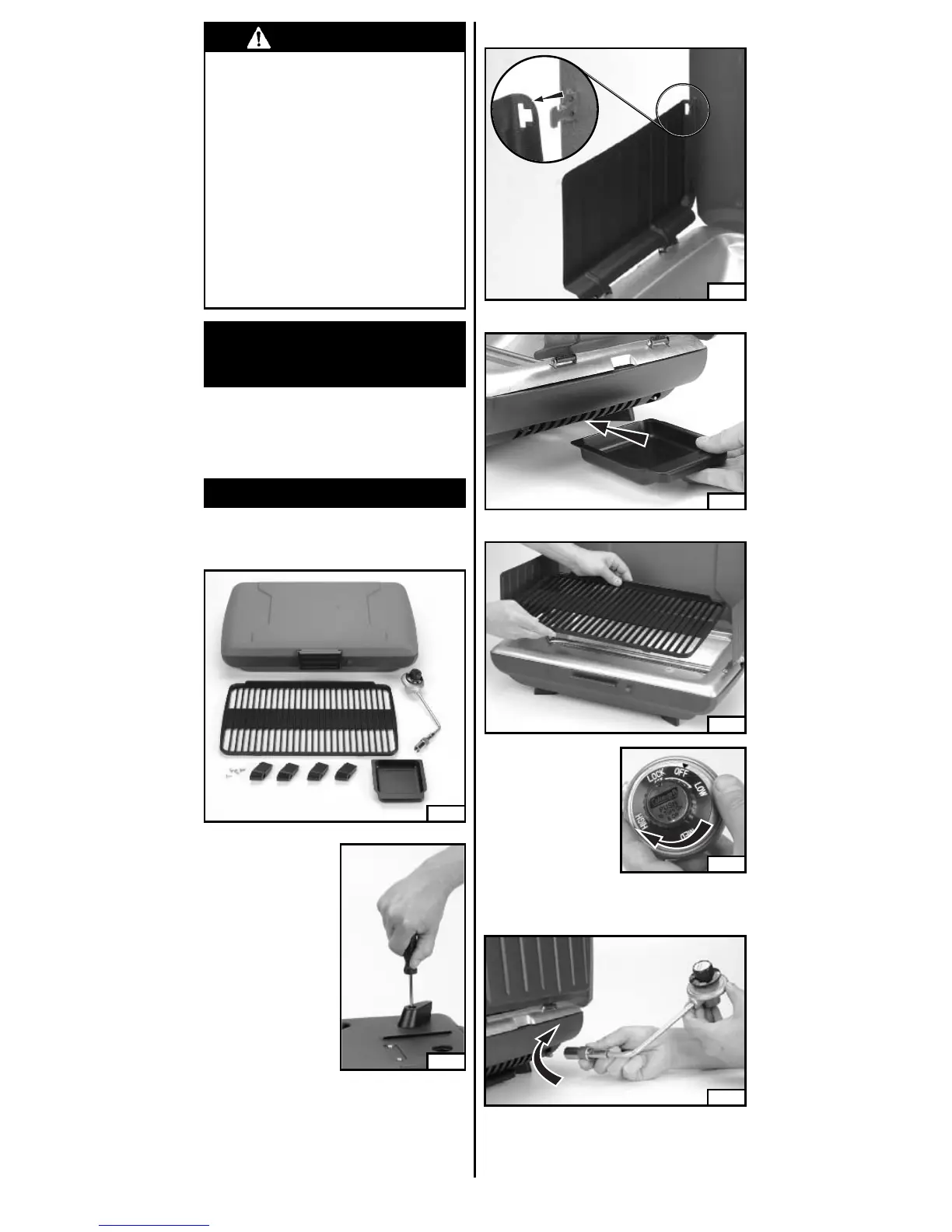

To Set Up
Fig. 1
■ Remove components from carton. (Fig. 1)
■ Assemble feet to
grill. Attach each
foot to grill using
one screw. (Fig. 2)
NOTE: Screwdriver
is not provided.
Fig. 2
To Next Page
