Coleman 9930 Series User Manual

English - 6

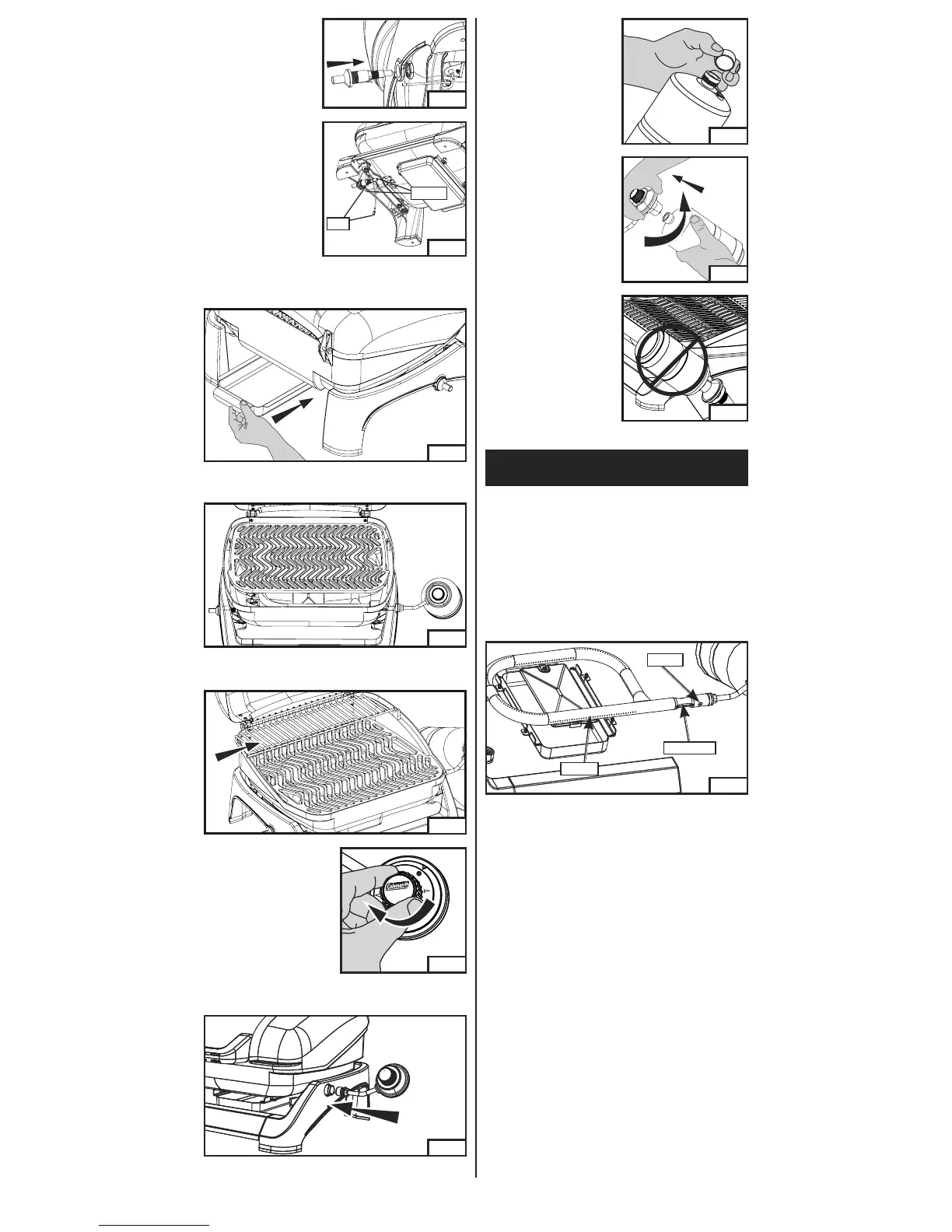

■ Screw propane
bottle into
regulator hand
tight. (Fig. 11)
■ Remove
protective cap
from top of
propane cylinder.
Save cap for use
in storing.
(Fig. 10)
■ Check and clean the burner/fuel
tubes for insects and insect nests.
A clogged tube can lead to a re
outside the appliance.
Burner and Orifice
Fig. 11
Fig. 10
■ Never operate
grill with propane
cylinder in an
inverted position.
(Fig. 12)
■ Proper location of the burner with
respect to the orice is important.
To verify the proper installation of
the burner tube, remove the cooking
surface and the cooktop. The burner
tube, fuel tube, and orice (on the
regulator) should be positioned as
shown in Fig. 13.
■ Turn off regulator
valve. (Fig. 8)
■ Install grease tray into position below
the grill from the back side. (Fig. 5)
■ Assemble the
igniter through
the hole in the
left side of the
grill. (Fig. 3)
■ Install the cooking surface. (Fig. 6)
■ Install the warming rack. (Fig. 7)
■ Firmly snap regulator into grill. (Fig. 9)
Fig. 3
■ Plug the round
electrical
connector to
the round jack,
and the at
one to the at
jack. (Fig. 4)
Round
Flat
Fig. 4
Fig. 5
Fig. 6
Fig. 7
PUSH
to T
urn On
& Off
LOW
OFF
HIGH
Fig. 8
Fuel Tube
Orifice
Burner
Fig. 13
Fig. 12
Fig. 9
