Coleman 9949 Series User Manual

English-4

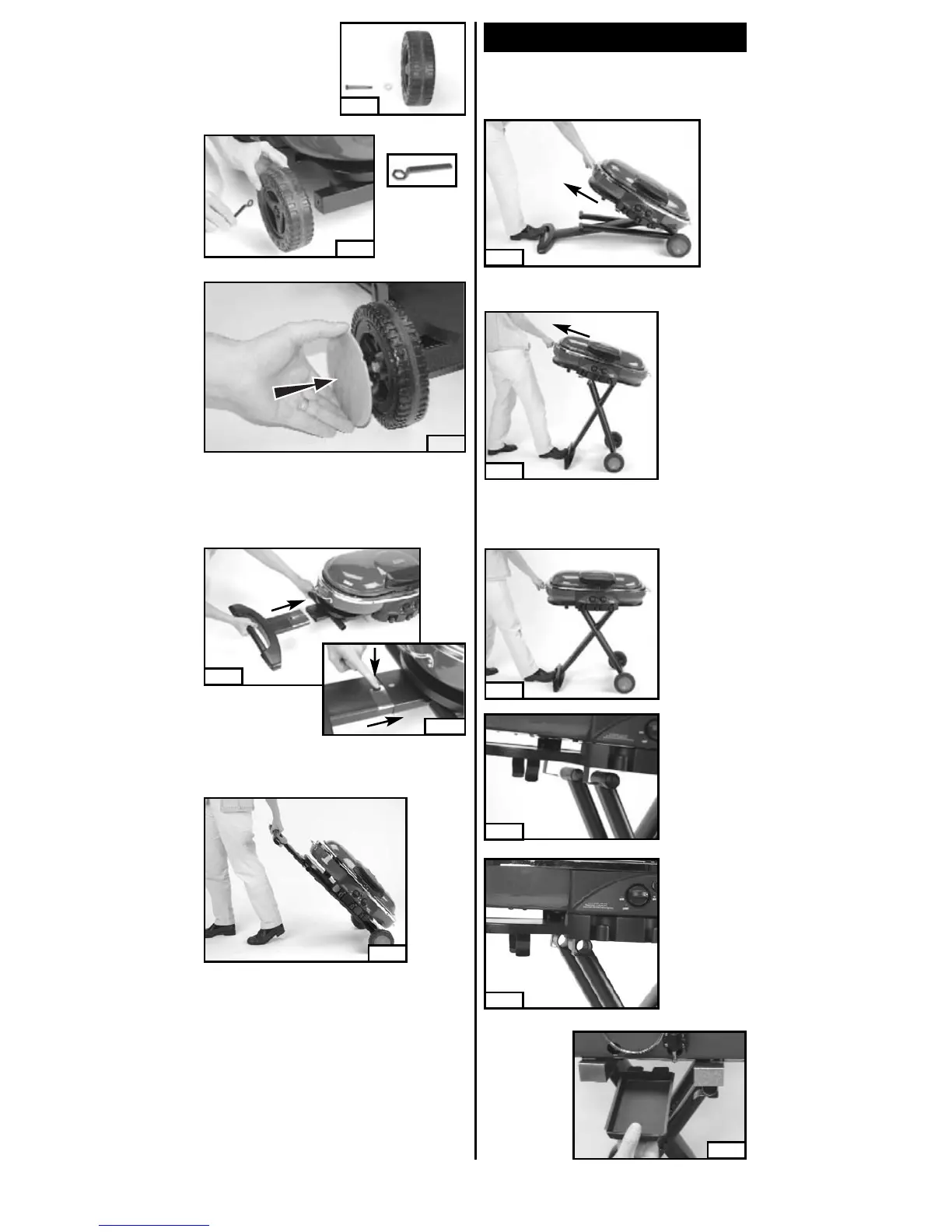

■ Assemble wheels to
stove base. Attach
each wheel to axle
using one bolt and
one washer. (Fig. 2)
■ Insert towing handle into bracket on stove stand.
(Fig. 4)
■ Press down button on towing handle and contin-
ue to push handle in until it locks in first hole on
bracket. (Fig. 5)
Fig. 2
NOTE:
Use wrench
provided.
Fig. 4
Fig. 5
Fig.3
■ Press one hub cap into each wheel (Fig. 3)
■ Place foot on plastic towing handle, grasp metal
handle on stove and lift until stand is fully
extended. (Fig. 7)
Fig. 7
To Set Up
■ Once handle is locked in position, the stove
can easily be moved to any location in your
campsite or backyard. (Fig. 6)
Fig. 6
Fig. 9
Fig. 8
■ Lower stove and slide stove back until leg exten-
sions lock into brackets on bottom of stove
stand. (Fig. 9, Fig. 10, Fig. 11)
■ Continue to pull stove handle toward you until
stand is fully extended. (Fig. 8)
■ Install drip
tray below
rear of
stove.
(Fig. 12)
Fig. 12
Fig. 10
Fig. 11
Fig. 1
