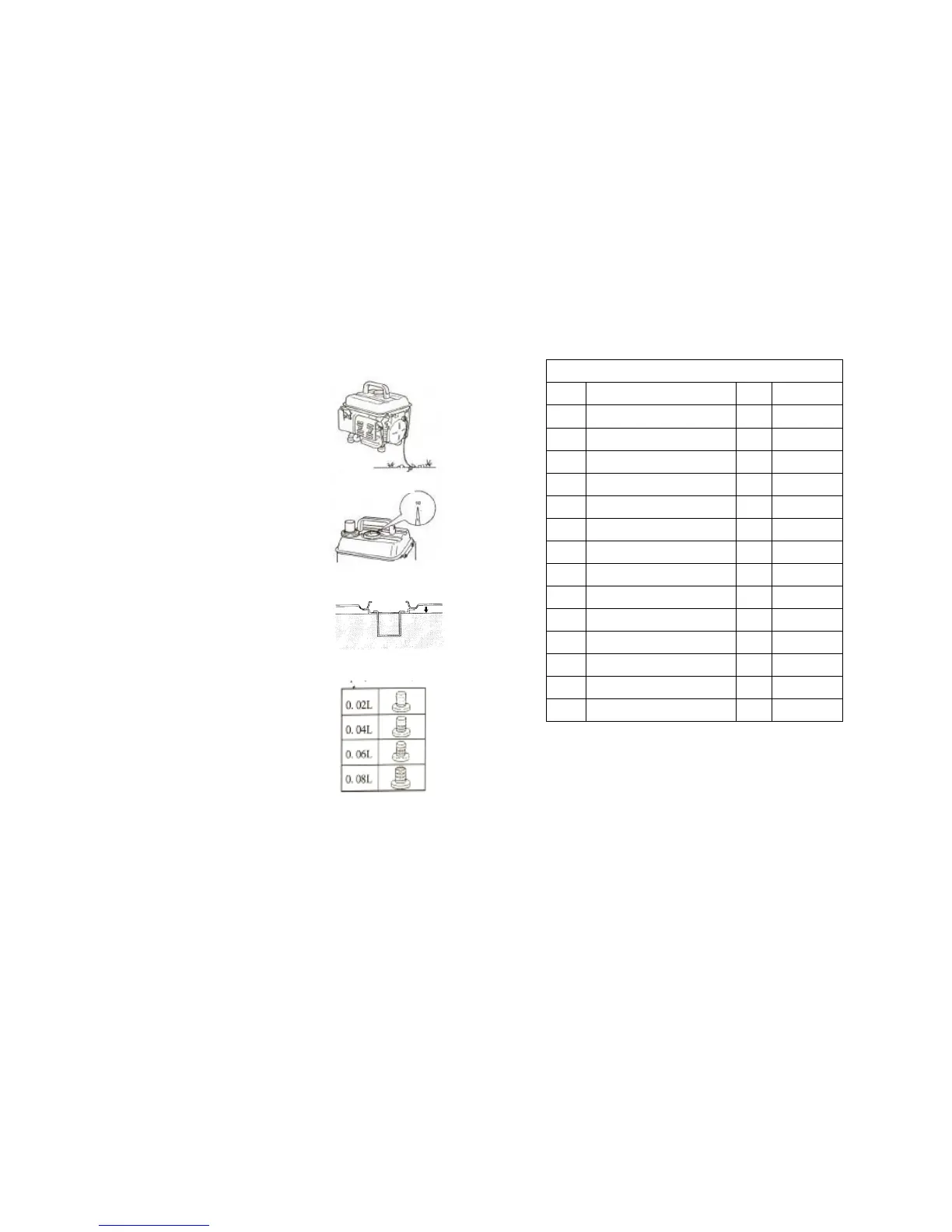

(II) PRE-OPERATION PREPARATION
NOTE: The following checks should be
made each time the generator is used.
z To prevent electric shock,
ALWAYS ground the generator
before starting, see Picture 1.
z Use a gasoline-oil mixture. If
not, the engine may overheat.
Gasoline and oil should be mixed at
40:1 ratio. See Picture 2.
z Do not overfill the fuel tank, always
fill to the top of fuel filter. See Picture 3.
z Use the following guide to make
fuel mixture:
1. Use the fuel cap to measure oil
See Picture 4.
2. Mix gasoline and oil in separate
Container( use clean, fresh regular
Fuel-Oil˄
1 Gal gal/3.2 oz.2-stroken
Engine oil
˅
3. After shaking, pour fuel mixture
into tank.
Note
ALWAYS use clean oil.
- 8-
FIG. J GENERATOR
PART
DESCRIPTION Q'TY SPEC
1 Tapping screw 4
ST4.2h13
2 Voltmeter 1
91L4
3 DC outlet 1 V type
4 Control panel 1
5 Circuit breaker (DC) 1 8A
6 Indicator 1 125VAC
7 Circuit break (AC) 1 8A
8 Plastic housing 1
9 Capacitor 1
10 Engine switch 1
11 Filter cover 1
12 Tapping screw 4
M5h16
13 Screw 1
M4h10
14 AC outlet 1 20A/125VAC
-21-
Picture 1
Picture 2
Picture 3
Picture 4
