Coleman CT100U - FRONT WHEEL INSTALLATION; Orient tire and install axle bolt

4
FRONT WHEEL INSTALLATION

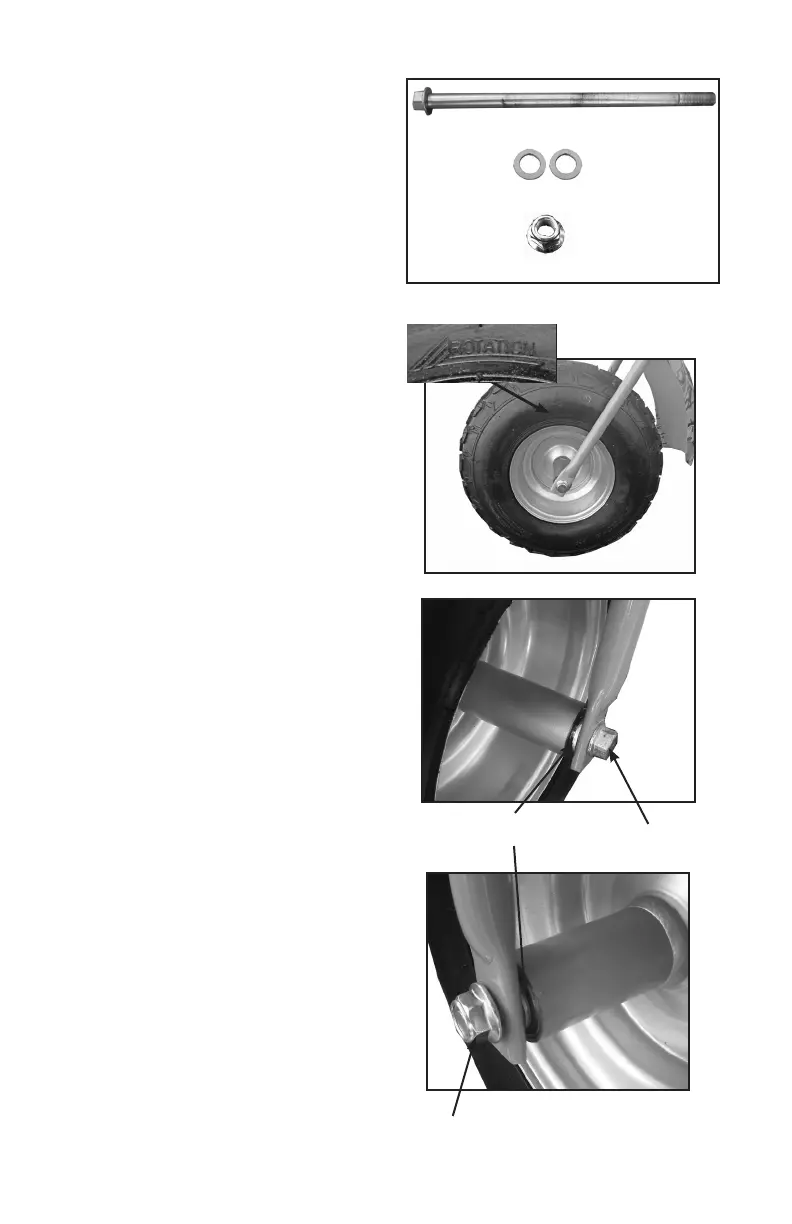

1. Orient the front tire so the arrow
on the tire faces forward.
Arrow faces forward
Large 8mm Washers
12mm Lock Nut
12mm Washer
12mm Axle Bolt
12mm lock nut 1ea.
12mm washers 2ea.
12mm Axle bolt 1ea.
2. Insert Axle bolt with the 12mm
washers between the forks and
wheel assembly on each side.
3. Install 12mm lock nut
and tighten.
Torque Front Lock Nut 20 ft.lbs
(27Nm)
