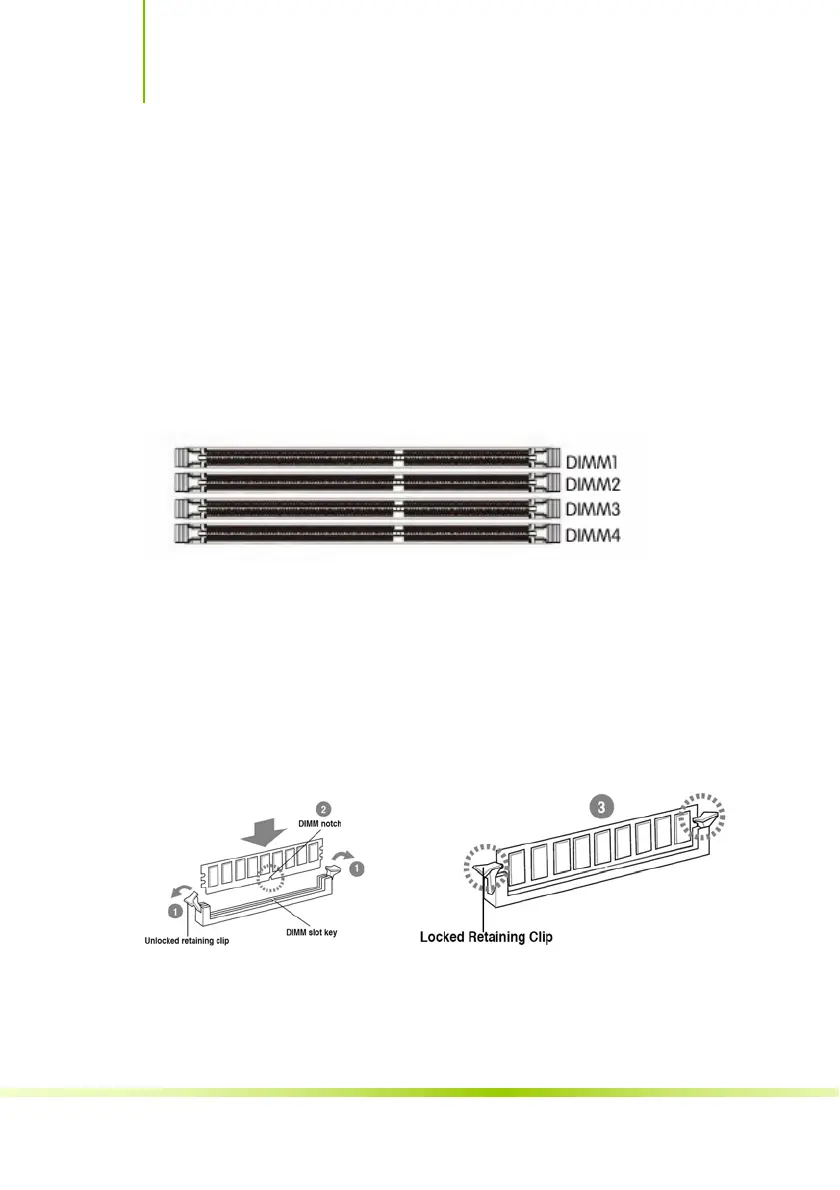

Installing Memory DIMMs
Your new motherboard has 4 slots for DDR4 memory. They
support dual channel DDR4 memory technology. There must be at
least one memory bank populated to ensure normal operation.
Use the following the recommendations for installing memory.
9 One DIMM: Install into DIMM1. You can install the DIMM into
any slot, however, slot 1 is preferred.
9 2 DIMMs: Install into DIMM1&DIMM3 slot, or DIMM2&DIMM4
slot, to build dual channel.
9 3 DIMMs: dont install 3 DIMMsmay cause fault.
9 4 DIMMs: Install into DIMM1ㄋDIMM2ㄋDIMM3ㄋDIMM4 slot.
Use the following procedure to install memory DIMMs into the
slots on the motherboard. Note that there is only one gap near the
center of the DIMM slot. This slot matches the slot on the memory
DIMM to ensure the component is installed properly.
9 Unlock a DIMM slot by pressing the module clips outward.
9 Align the memory module to the DIMM slot, and insert the
module vertically into the DIMM slot. The plastic clips at both
sides of the DIMM slot automatically lock the DIMM into the
connector.
痲簊 B365M-PLUS V21/BATTLE-AX B365M-PLUS V21
32
