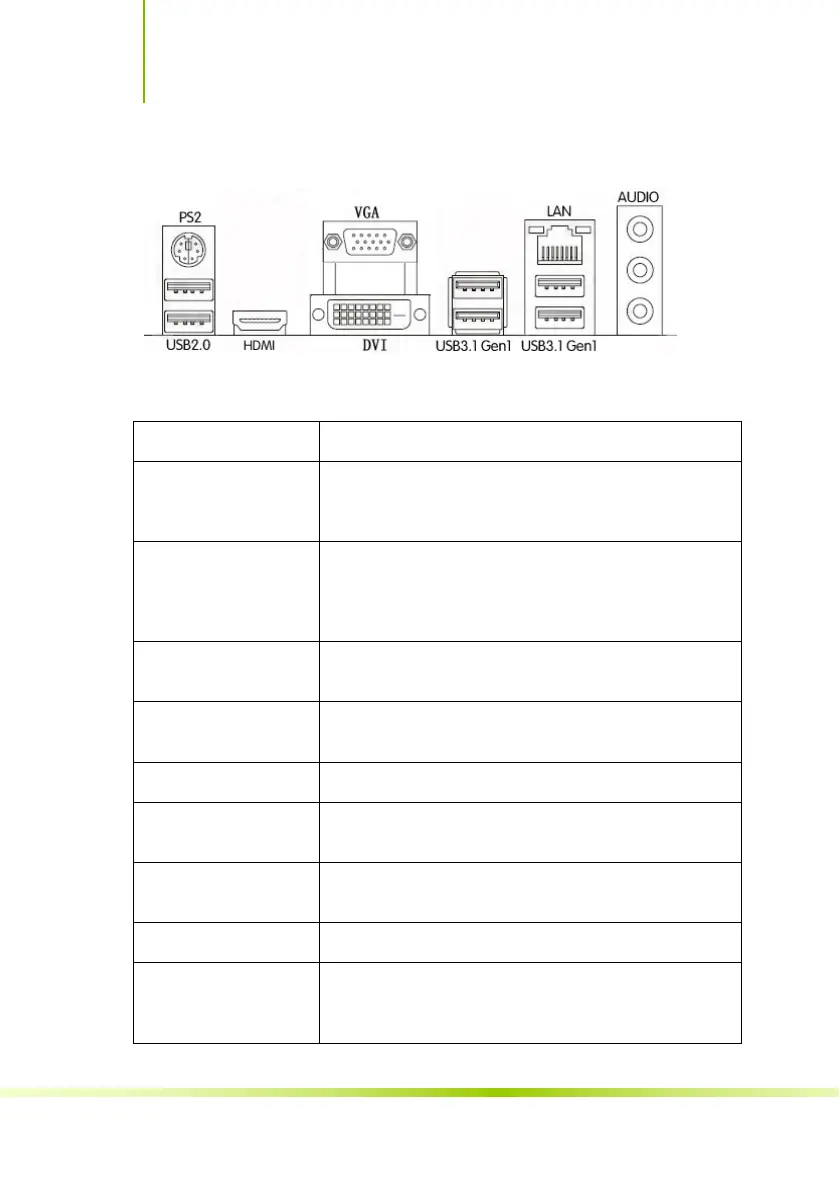

5-2-3 Back Panel IO Connector
<The back panel IO connector of BATTLE-AX B365M-PLUS V21>
Parts Use
PS/2 Mouse/
Keyboard
Connector
This connector is for a PS/2
mouse/Keyboard.
LAN Jack
The standard RJ-45 jack is for
connection to single Local Area Network
(LAN). You can connect a network cable
to it.
Lie-In(Blue)
Used for external CD player, tape player
or other audio devices.
Line Out(Green) This connector for speakers or
headphones.
Side R/L(Gray) Side surround speakers connector
DVI Onboard DVI port, connect to DVI
Monitor
HDMI
Onboard HDMI port, connect to HDMI
Monitor
VGA Onboard VGA port, connect to Monitor
USB Ports
These connectors are for attaching USB
devices such as keyboard, mouse, or
other USB-compatible devices.
痲簊 B365M-PLUS V21/BATTLE-AX B365M-PLUS V21
42
