Now that you have set up your snowthrower for opera-
tion, get acquainted with its controls and features. These
are described below and illustrated on this page. This
knowledge will allow you to use your new equipment to
its fullest potential.
NOTE: For detailed starting instructions and more
information on all engine controls, refer to the separate
engine manual packed with your unit.

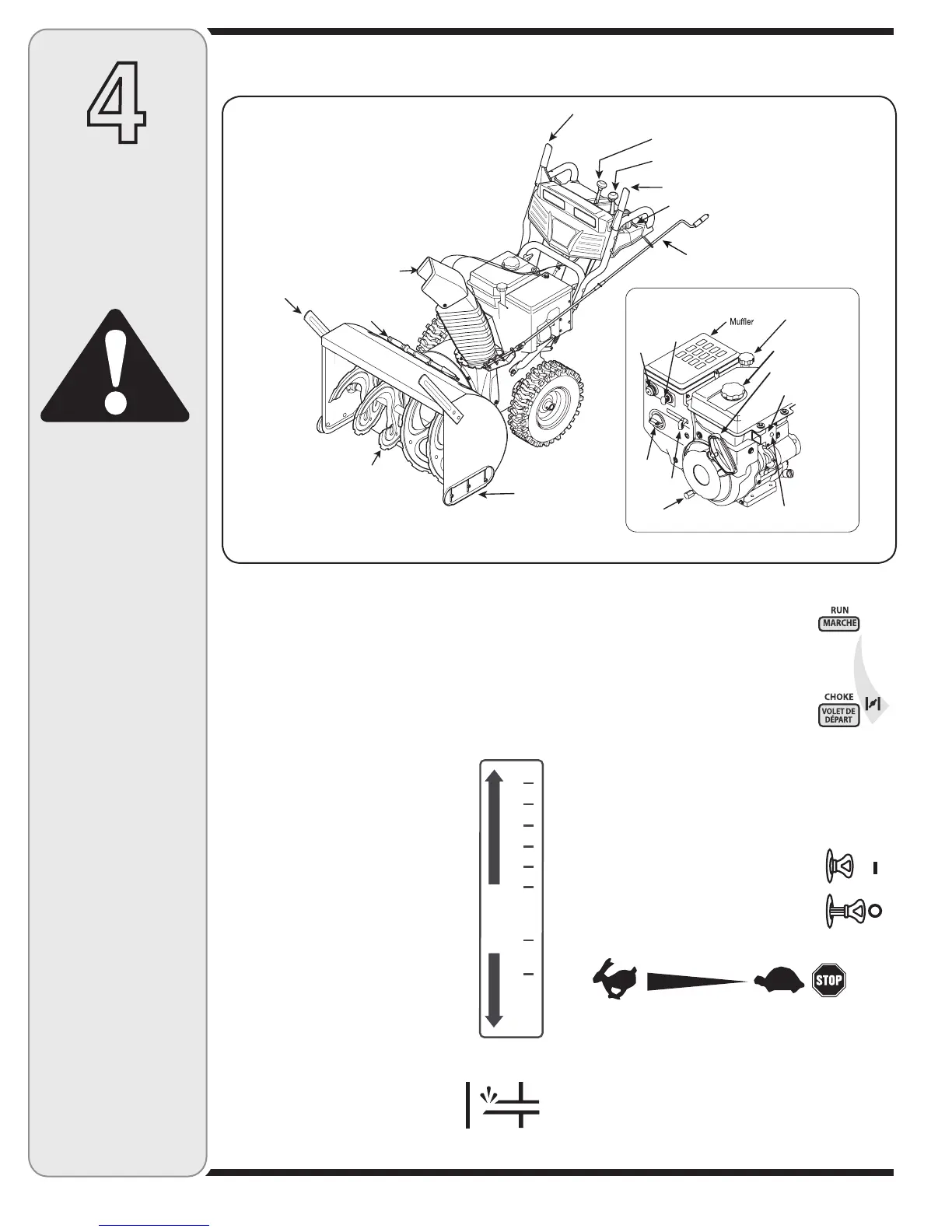

Know Your Snow Thrower
Choke Control
The choke control is found on top of the
engine and is activated by rotating the
knob counter clockwise. Activating the
choke control closes the choke plate on the
carburetor and aids in starting the engine.
Ignition Key
The ignition key must be pushed in place in order for
the engine to start. Pull the ignition key out to prevent
unauthorized use of equipment.
IMPORTANT: DO NOT turn ignition key.
Throttle Control
The throttle control regulates the speed
of the engine and will shut off the engine
when moved into the STOP position.
Auger Control
The auger control is located on the left handle. Squeeze
the auger control to engage the augers. Release to stop
the snow throwing action. The drive control must also be
released in order to stop auger.
Figure 4-1
Operating
Your
Snowthrower
WARNING
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
6
1
2
F
3
4
5
R2
R1
R
Shift Lever
The shift lever is located in the center of
the handle panel and is used to determine
ground speed and direction of travel. It can
be moved into any of eight positions.
IMPORTANT: Always release drive control
before changing speeds.
Forward: The snowthrower has six
forward (F) speeds. Position one (1) is the
slowest and position six (6) is the fastest.
Reverse: The snowthrower has two
reverse (R) speeds—R1 is the slower of
the two.
Primer
Depressing the primer forces fuel
directly into the engine’s carburetor to
aid in cold-weather starting.
* optional
Engine Controls
Starter Handle
Oil Drain
Oil Filler Cap/
Dipstick
Electric start button*
Electric Switch Box*
Fuel Fill Cap
Primer
Ignition Key
Throttle
Choke
Skid Shoe
Chute
Assembly
Drift Cutters
(optional)
Clean-Out
Tool
Augers
Chute Directional
Control
Drive Control
Shift Lever
Auger Control
Wheel Steering Control
Two-Way Chute Control™
(optional)
