Com DCD13019 - Option 2: VESA 200-600 mm Installation

PLEASE CHOOSE BEST INSTALLATION OPTION BASED ON TV BACK PANEL
HOLES SPACING:
OPTION 2:(7.87 to 23.6 ) in x 15.7 in / (200 to 600) mm x 400 mm
16”/406mm
F
A
1

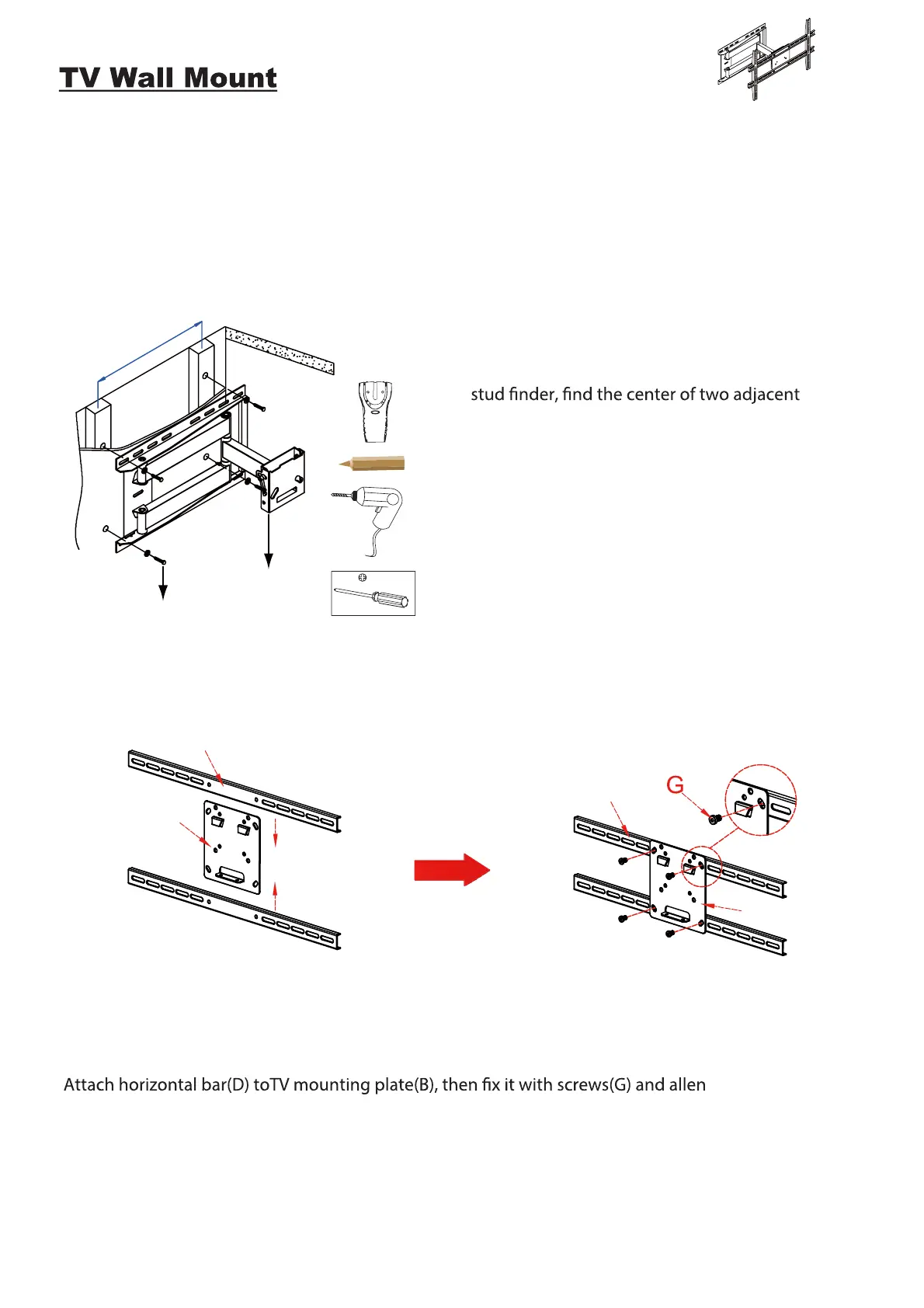

This mount is designed to be attached into
wood studs, DO NOT use wall anchors. using a
studs. With a pencil, mark the hole location at
the desired height, making sure you are level.
Use wall bracket(A) as a template to mark the
two remaining holes. Drill pilot holes at 4 pencil
marks 2.5 in. (64mm) deep, using a 3/16 in. or
5 mm diameter drill bit.
Attach wall bracket(A) to the wall with 4
washers and screws(F).
4
D
B
D
B
2
wrench(H).
