Brake Replacement and Adjustment
● For CP-200/250/300/500/500T, CWG-30075 winches
There is no brake adjustment function. Once the brake disc is considerable worn, replace it
with new one.
Condition: Brake distance is more than 1.5% of rope length to be wound-in during 1 min or
the brake disc thickness is smaller than 8.5 mm, compared to the standard thickness
of 9 mm
● For CP-750T/900T, CWG-10151/30151/30375/30565/30750/31500/34000 winches
If the brake disc thickness is smaller than 12 mm, replace it with new one, compared to the
standard thickness of 14 mm, replace it with new one.
Condition: Brake distance is more than 1.5% of rope length to be wound-in during 1 minute.

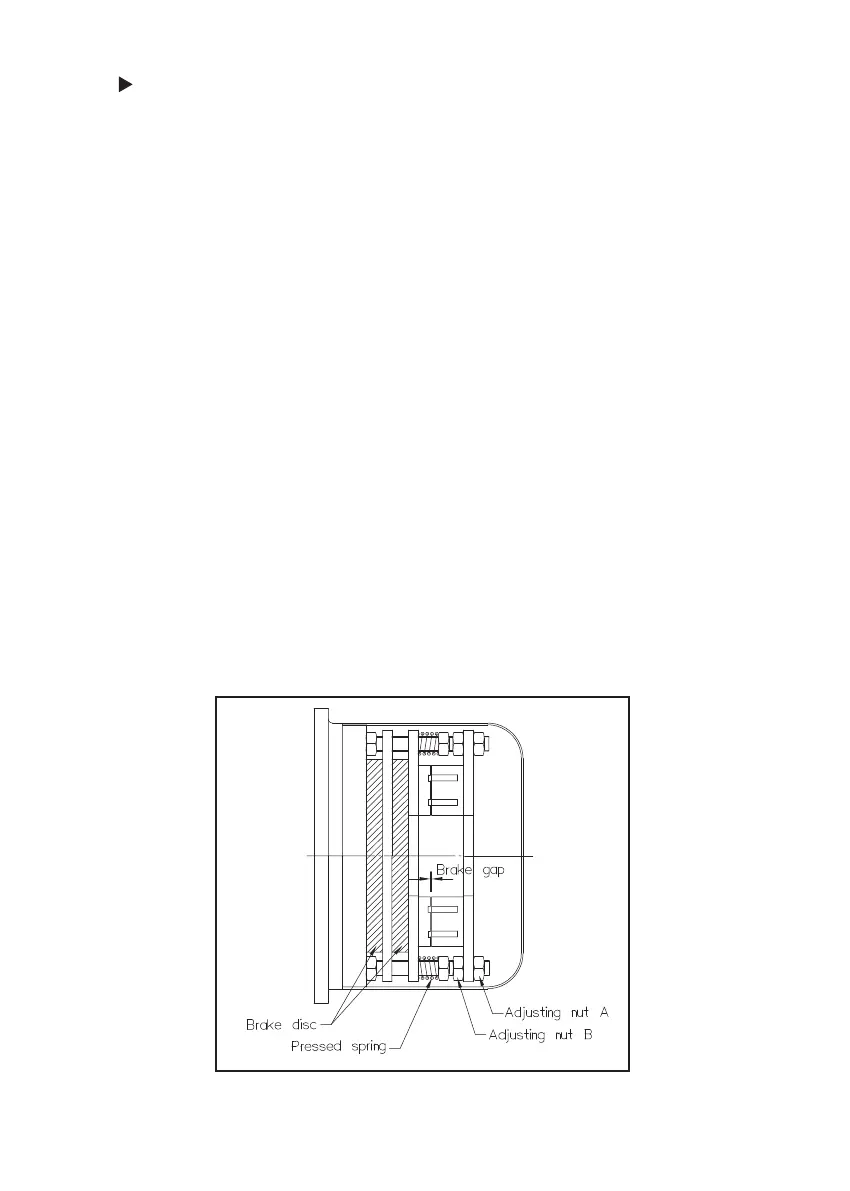

Procedures: Step1. Loosen the adjusting nut “B” to have the nut ”A” released
Step2. Rotate nut ”A” clockwise to get a proper brake gap
0.35 mm for CWG-10151/30151
0.45 mm for CP-750T/900T and CWG-30375
0.6 mm for CWG-30565/30750/31500/34000
Step3. Tighten the adjusting nut “B”
Step4. At first, tighten the adjusting nut C and then release it by proper wraps
CWG-10151/30151…………………..9.5 wraps
CWG-30375…….………………..…...5.5 wraps
CWG-30565/30750/31500/34000…..6.5 wraps
CP-750T/900T…………………………6.5 wraps
