8

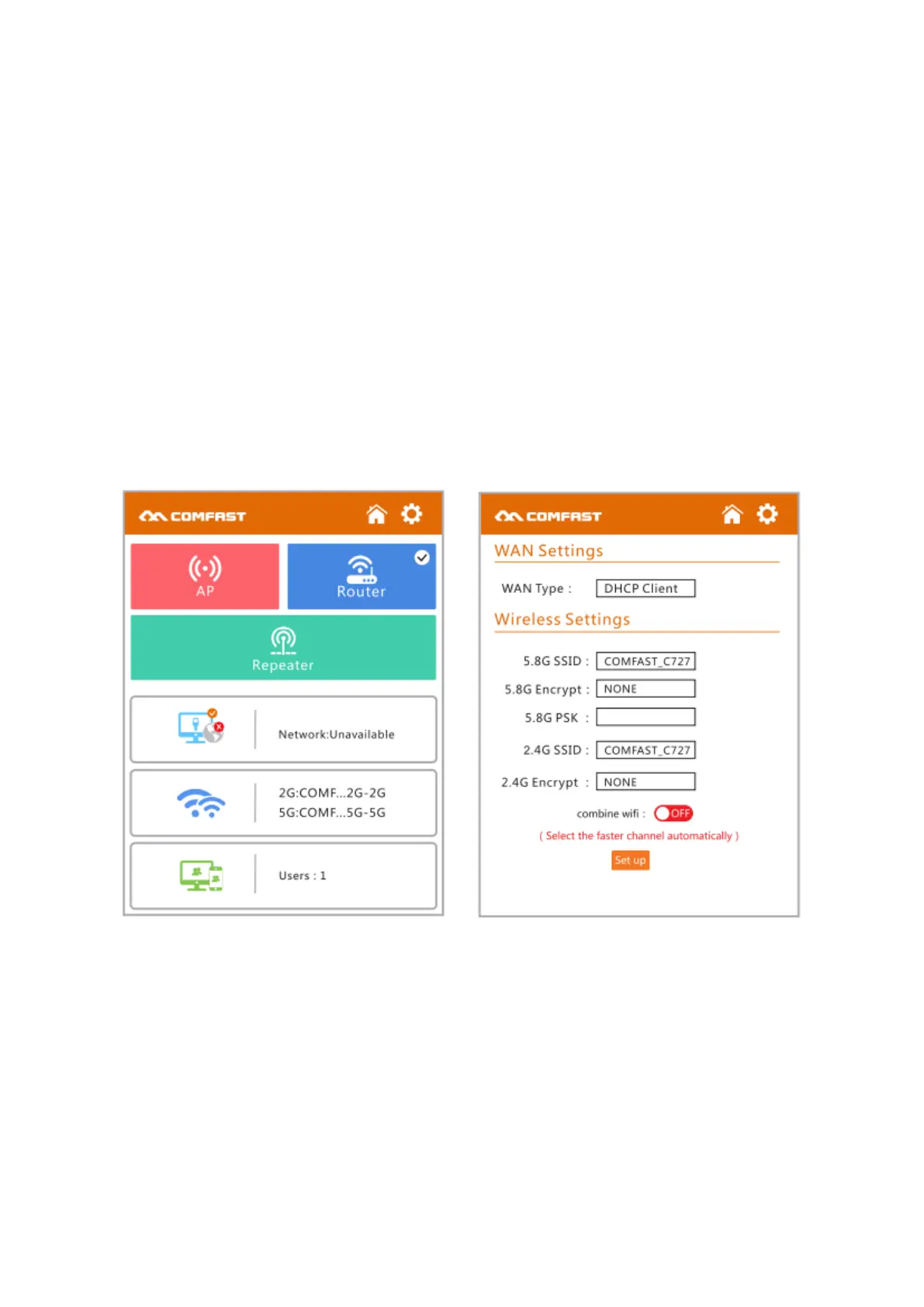

• Routing mode settings: Enter the software management page, only display the
routing mode, click Routing mode, which can select “PPPoE, “StaticIP”, “Dynamic
IP” Three ways to get online.
1. PPPOE dial-up mode: This mode requires the Internet account provide b the
network service provider to be filled in Number and password, below can set
2.4G / 5.8G wireless SSID name, wireless password.
2. Static IP mode: This mode needs to fill in the IP address provided by the network
service provider, Subnet mask, gateway, main DNS address, 2.4 G / 5.8G wireless
SSID can be set below Name, wireless password.
3. Dynamic IP mode: In this mode, the WAN port is assigned IP by the superior
network device to access the Internet. The 2.4G / 5.8G wireless SSID name can be
set below.
