Wiring

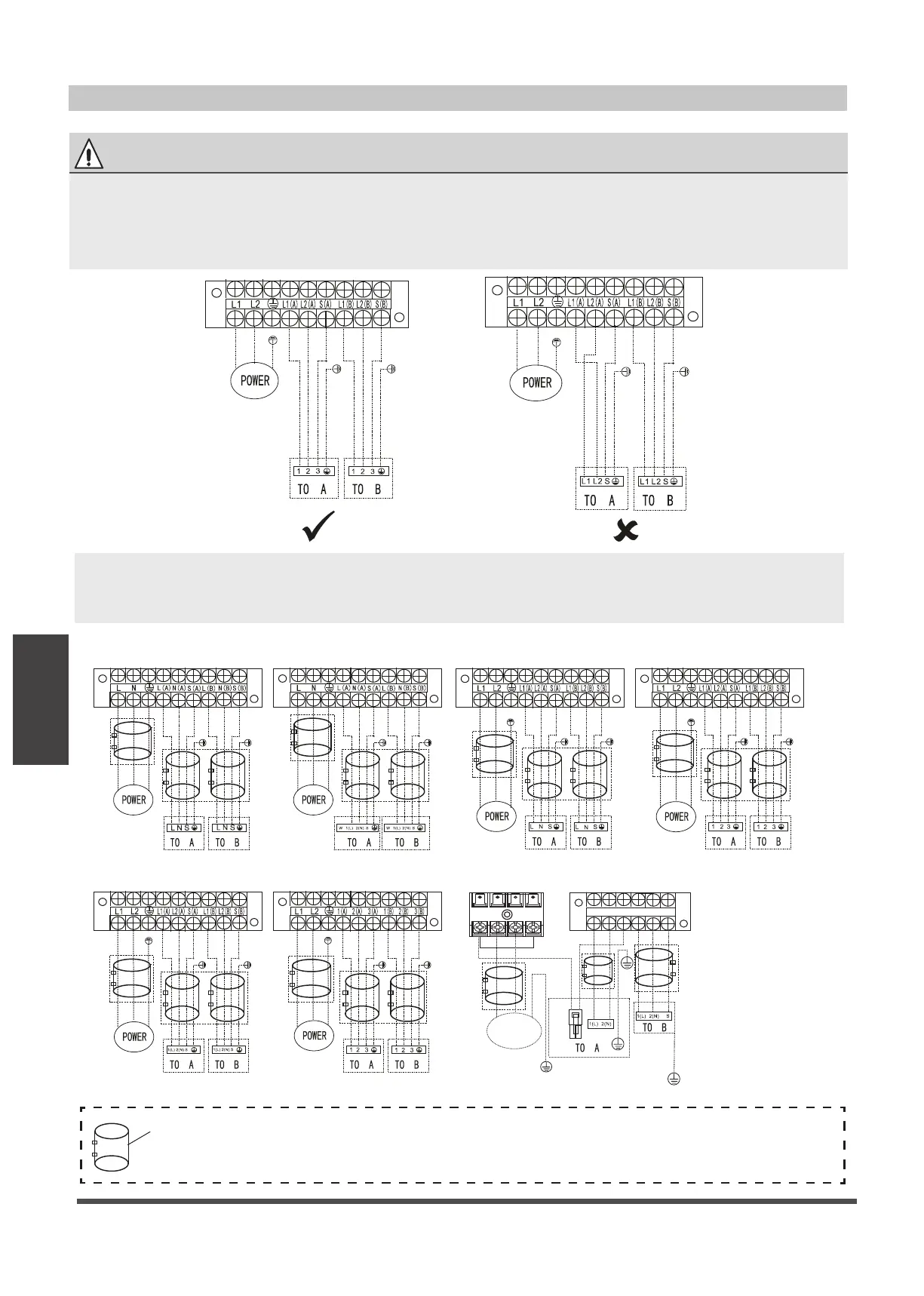

Wiring Figure
One-two models:
NOTE:Use the magnetic ring ( not supplied, optional part) to hitch the connective cable of
indoorand outdoor units after installation.One magnetic ring is used for one cable.
POWER
SUPPLY
L(A)
S(A)
N(A)
L(B)
N(B)
S(B)
Y/G
W
L
N
L( 1 )
NOTE: Refer to the following figures if end-users wish to perform their own wiring.
Run the main power cord through the lower line-outlet of the cord clamp.
---- This symbol indicates field wiring.
CAUTION
Connect the connective cables to the terminals, as identified, with their matching numbers
on the terminal block of the indoor and outdoor units. For example, in the US models shown
in the following diagram, Terminal L1(A) of the outdoor unit must connect with terminal L1
on the indoor unit.
Model A
Model E Model F Model G
Model B Model C Model D
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
