Page 16
Installation
Instructions
Installation
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of
the following two installation methods.
Or
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)

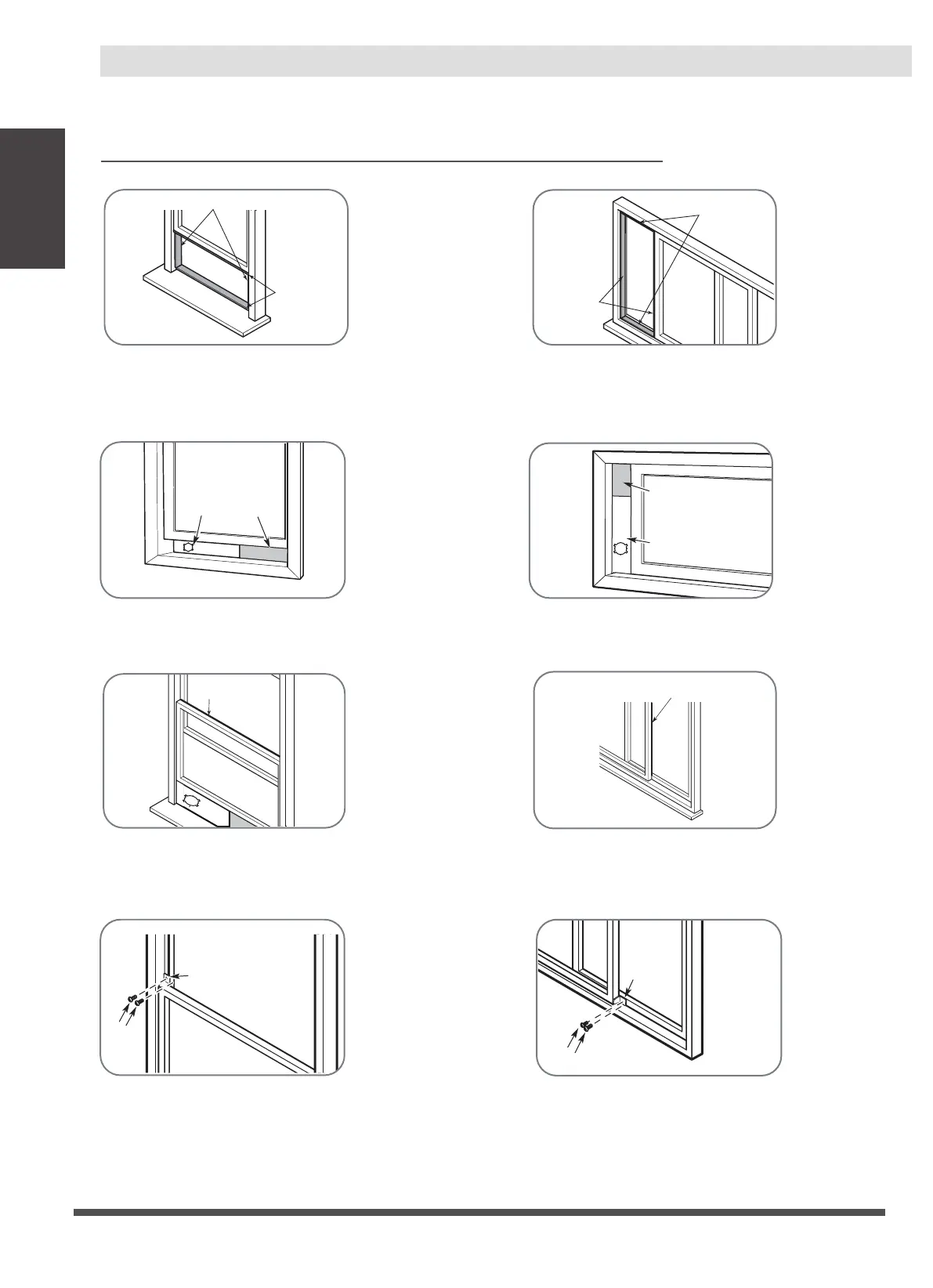

Type 1: Hung Window or Sliding Window Installation(For some models)
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash
and frame as shown.
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Or
Or
Window
slider A
Window slider
B(if required)
Foam seal C
(Non-adhesive type)
3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal
between the glass and the window frame to prevent air and insects from getting into the room.
2. Insert the window slider assembly into the window opening.
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
Or
2 Screws
Security Bracket
4. If desired, install the security bracket with 2 screws as shown.
2 Screws
Security
Bracket
EN
To Next Page
