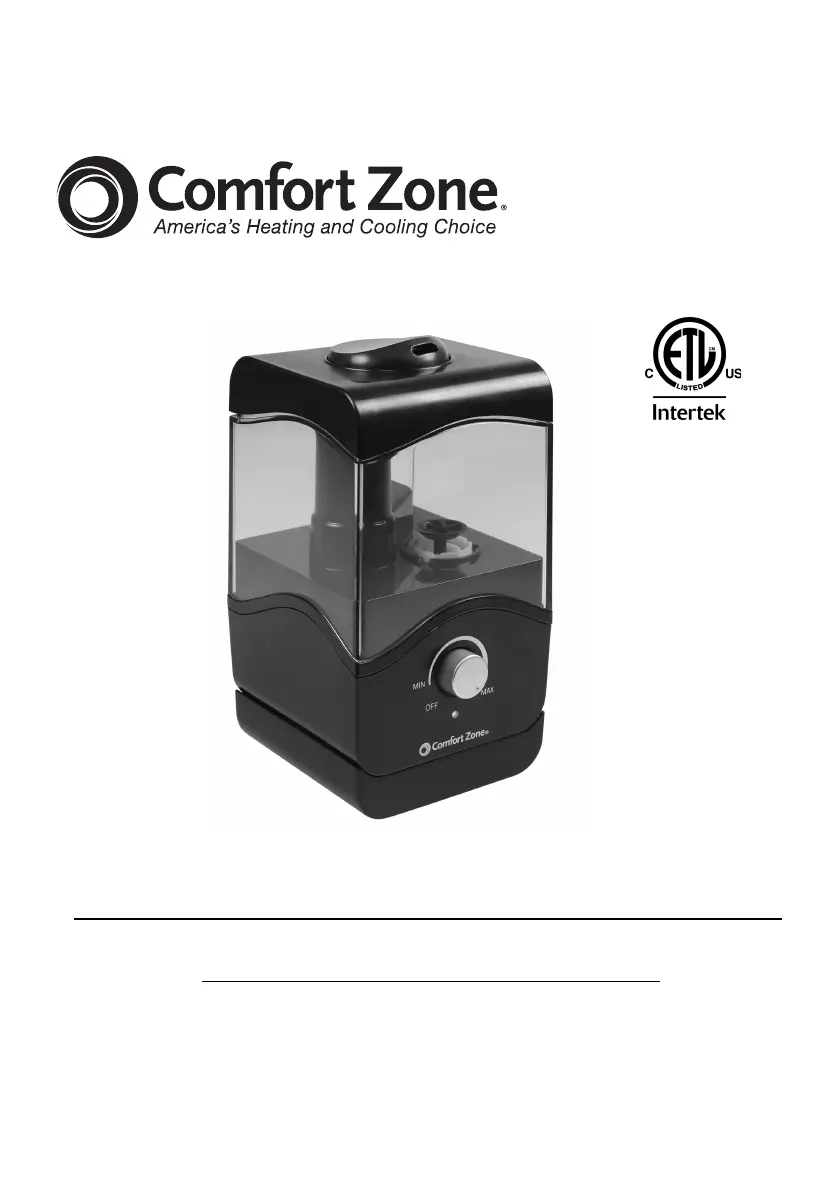

Comfort Zone CZHD10BK - User Manual

Model No. CZHD10BK
Portable Ultrasonic Humidifier
with Aromatherapy
INSTRUCTION MANUAL

Summary

Important Instructions

General Safety Precautions

Essential safety guidelines for operating the humidifier, covering electrical, placement, and usage rules.

Setup and Operation

Tank Filling and Power Connection

Instructions on how to fill the water tank and connect the power adapter for operation.

Operating Environment and Mist Adjustment

Details on optimal operating temperatures and how to adjust mist output using the control dial.

Humidifier Features and Maintenance

Aroma Function Usage

Steps to add essential oils for fragrant mist, including changing scents and disabling the feature.

Tank Refill Procedure

Guidance on refilling the tank when empty, including understanding indicator light changes.

General Humidifier Cleaning

Recommendations for regular cleaning, including external wiping and avoiding abrasive cleaners.

Specific Cleaning and Storage

Tank Cleaning with Bleach

Instructions for cleaning the water tank using a bleach solution to remove deposits.

Tray Cleaning for Mineral Deposits

Guidance on cleaning the water basin to remove accumulated mineral deposits.

Storage and End-of-Season Care

Steps for cleaning and storing the humidifier during off-season for optimal preservation.

Troubleshooting and Warranty

Common Issues and Solutions

A guide to common humidifier symptoms, their causes, and recommended solutions.

Warranty Terms and Conditions

Details of the one-year limited warranty, including coverage, exclusions, and consumer rights.

Overview

1. Function Description
2. Important Technical Specifications
3. Usage Features
4. Maintenance Features
5. Troubleshooting (Common Issues and Solutions)
6. Limited Warranty

The device is a Portable Ultrasonic Humidifier with Aromatherapy, manufactured by World and Main (Cranbury), LLC under the brand "Comfort Zone." Its model number is CZHD10BK.

Function Description:

This appliance is designed to add moisture to the air through ultrasonic technology, creating a cool mist. It also incorporates an aromatherapy feature, allowing users to diffuse essential oils into the mist for a fragrant environment. The humidifier is intended for indoor use only.

Important Technical Specifications:

• Humidifier Input: 24 Volts DC, 500 mA.
• Power Adapter Input: 100-240V AC, 50/60Hz, 0.55A.
• Power Adapter Output: 24V DC, 500 mA.
• Water Tank Volume: 0.15 Gallons (550 mL).
• Optimal Operating Environment: Temperatures between 41°F (5°C) and 104°F (40°C), and relative humidity lower than 60%RH.
• Safety Certifications: ETL Listed (C, US), Intertek.

Usage Features:

• Setup:
  • To set up, remove the tank, turn it upside-down, and remove the fill cap by turning it counter-clockwise.
  • Fill the tank with cool water. Distilled or filtered water is recommended for best results; hot water or additives should not be used.
  • Replace the water tank spring float cap by turning it clockwise, ensuring not to overtighten.
  • Turn the tank upright and position it back on the housing, ensuring it is seated properly.
  • Plug the rounded end of the power adapter into the adapter port at the back of the humidifier (refer to Fig. 1).
  • Plug the adapter's two-pin power plug into a 120V AC wall outlet.
• Operation:
  • Turn the Mist Control Dial on the front of the unit to adjust the mist output to the desired direction.
  • The top of the tank features a directional output orifice that can be turned to direct the mist.
  • The unit will automatically shut down and stop producing moisture when the tank is empty or the water level in the tray reaches a minimum. The green power indicator light will turn red to signal an empty tank.
• Aromatherapy Function:
  • Place the included sponge onto the center of the aroma tray.
  • Add a few drops of your preferred essential oil onto the sponge.
  • Place the humidifier onto the tray.
  • Turn on the humidifier as per the operation instructions; the essential oil will incorporate into the cool mist.
  • To change the fragrance, wash the sponge with clean water and a few drops of fragrant-free dishwashing soap, then apply a different fragrant oil once the sponge is dry.
  • Removing the aroma tray will stop the fragrant mist operation.
  • Caution: If you experience lightheadedness, nausea, or discomfort, stop operating the humidifier immediately and consult a healthcare professional.
• Refilling the Tank:
  • When the power indicator turns red (indicating an empty tank), turn off and unplug the unit.
  • Remove the water tank spring float cap.
  • Refill the tank with cool, distilled, or filtered water. Do not use hot water or chemical additives.
  • Properly replace the tank, plug the unit back into an outlet, and turn it ON.
• Safety Precautions:
  • Always follow basic precautions to reduce the risk of fire, electric shock, and injury.
  • Use only indoors, not in wet or damp locations.
  • Avoid extension cords; if necessary, use a No.14AWG minimum size cord rated not less than 1875 watts. Do not run cords under carpeting or cover them.
  • Do not use if parts are missing, the power cord is damaged, or if the unit has been dropped or misused.
  • Place on a flat, level, water-resistant surface.
  • Turn off and unplug the unit when not in use, cleaning, or reinserting the aroma dispenser.
  • Never tip or move the appliance while operating or while water is in the base or tank.
  • Do not use with timers, programmers, or other automatically controlled devices.
  • Use only as described in the manual to prevent damage, fire hazards, electrical shock, or injury.
  • Do not place near furnaces, heaters, stoves, or other heat sources.
  • Position out of reach of children and pets.
  • DO NOT use anything other than water; do not use additives.
  • Turn off if relative humidity exceeds 60%.
  • Never block the mist outlet.
  • Do not cover any part or insert any object into any area of the humidifier.
  • Servicing or repair should only be performed by the manufacturer or authorized facilities. Disassembling the humidifier will void the warranty.

Maintenance Features:

• Periodic Maintenance: The humidifier requires periodic maintenance.
• Cleaning the Humidifier (Recommended weekly or more often if hard water is used, impurities build up, or unpleasant odors are noticed):
  • Always turn off and unplug the humidifier before cleaning.
  • Exterior: Periodically wipe the outside with a damp or wet soft cloth. Do not use harsh, abrasive cleaners. Never submerge the housing in liquid or pour liquid into or on it, as this can cause damage and injury.
  • Water Basin: Mineral deposits will accumulate over time. The water basin should be cleaned when this occurs.
  • Tank Cleaning: Put 1/2 teaspoon of chlorine bleach and 1/2 gallon of water in the tank. Let the solution sit for about 20 minutes, swishing every few minutes. Empty the tank and rinse well until the bleach odor is gone. Be careful not to splash the solution on surfaces/clothing that may be damaged. Do not operate the humidifier with the chlorine bleach solution in the tank.
• End of Season Care and Storage:
  • Empty the tank and tray of water.
  • Clean all surfaces with a damp, soft cloth.
  • Once completely dry, store the humidifier in its original carton in a cool, dry, clean location.
  • Clean and inspect the humidifier before using it the next season.

Troubleshooting (Common Issues and Solutions):

• Indicator not illuminated (no air/mist):
  • Cause: Power cord not plugged in/switch off, no water in tank.
  • Solution: Plug in cord/turn on switch, fill water tank.
• Indicator illuminated (air, no mist):
  • Cause: Mist Control Dial not turned up, water level float cap not down, water level in bath too high.
  • Solution: Turn Mist Control Dial clockwise, confirm float cap is not stuck, remove some water from the basin, screw down the float cap.
• Indicator illuminated (no air/fog):
  • Cause: Water level in the water bath is too high.
  • Solution: Remove some water from the unit's water basin.
• Reduced mist output:
  • Cause: Scale formation on transducer, dirty water, water stored too long.
  • Solution: Clean the water basin and inlets, replace with clean water.

Limited Warranty:

• Guaranteed to the original retail purchaser against defects in quality or workmanship for one year from the date of original purchase.
• Within 30 days of purchase for manufacturing defects, return to the retailer with receipt.
• After 30 days but within the warranty period (continental US), return freight prepaid to World and Main for repair or replacement.
• Outside continental US, return to the place of purchase.
• Does not cover damage from misuse, abuse, overheating, or alteration.
• Repairs by unauthorized parties void the warranty.
• World and Main is not liable for losses due to neglectful operation.
• Implied warranties are limited to one year.
• Incidental or consequential damages are disclaimed and excluded.
• This warranty provides specific legal rights, and other rights may vary by state. No informal dispute settlement mechanisms are available. This limited warranty is in lieu of all other warranties.

Comfort Zone CZHD10BK Specifications

General

Brand	Comfort Zone
Model	CZHD10BK
Category	Humidifier
Language	English
