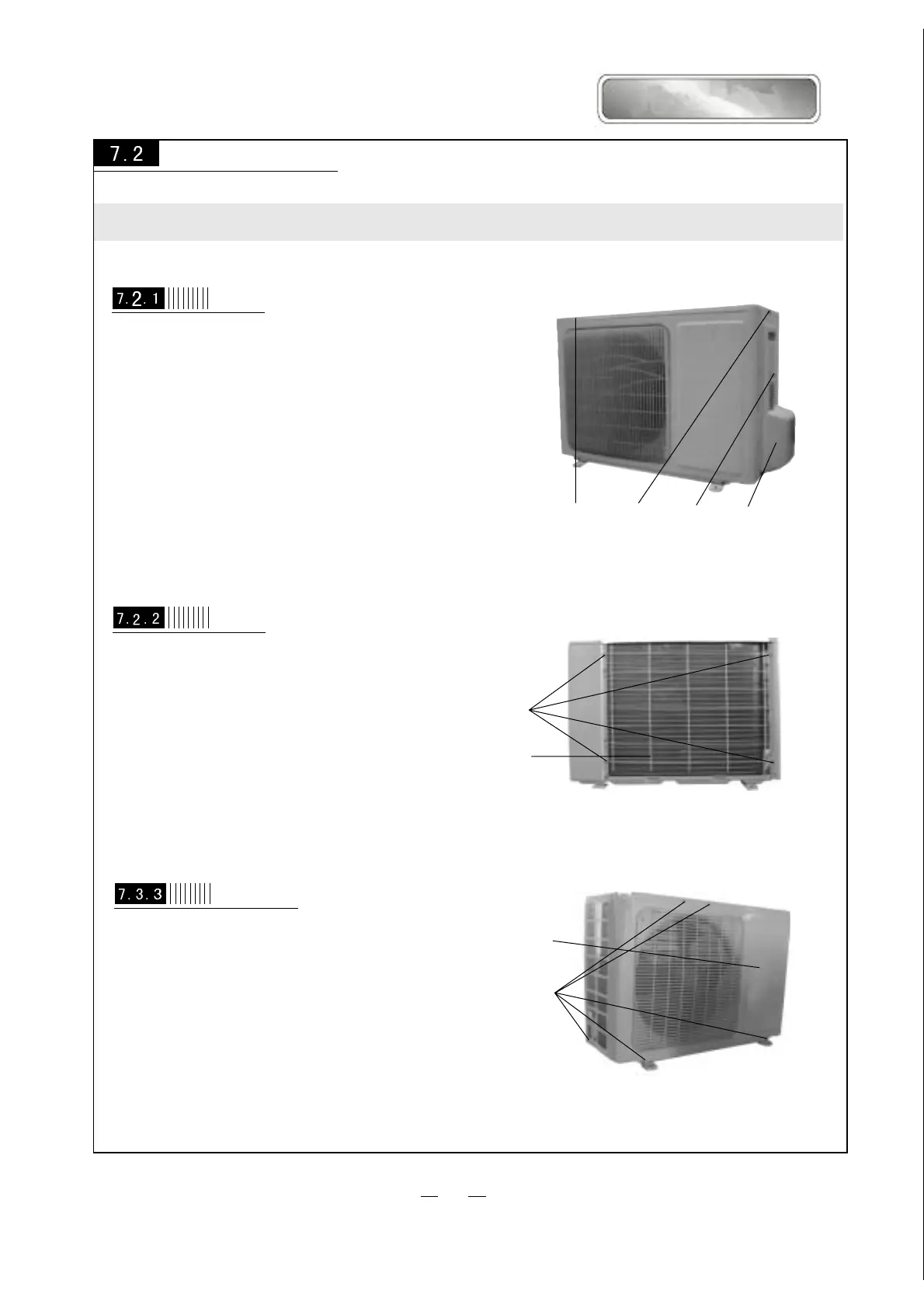

Disassembly Procedures for Outdoor Unit
Operating Procedures / Photos
Disassemble Top Cover and Handle
Use screwdriver to unscrew the screw at the
handle, and remove the handle. Unscrew the three
screws around the top cover, and remove the top
cover.
(refer to Figure 7-13)
Disassemble Rear Grill
Top Cover
Handle
screw screw
Figure 7-13
Screw out the 4 self tapping screws on
rear side plate and chassis of valve supporter
and side plate of condenser can take off rear grill.
(refer to Figure 7-14)
Figure 7-14
screw
Grill
2 Disassemble Components of Panel
Screw out the 5 tapping screws on panel and
chassis of valve supporter and side plate of condenser
(refer to Figure 7-15)
can take off components of panel.
Figure 7-15
screw
Panel
