Spindle motor installation

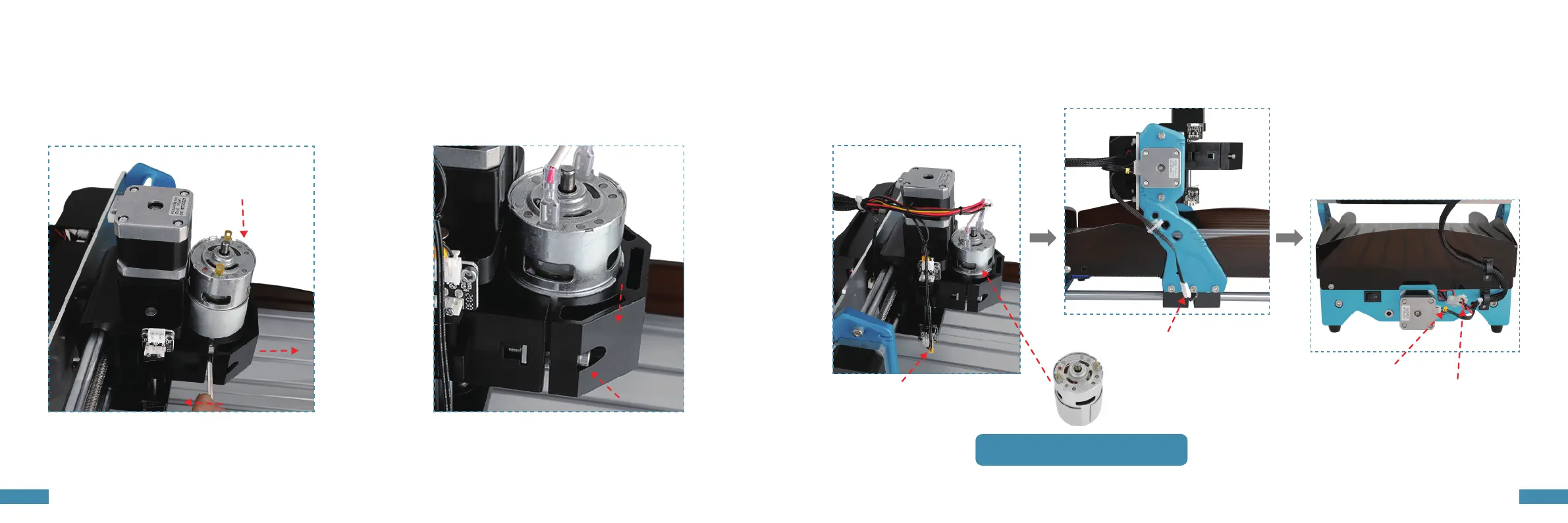

After holding the collet open, slide down the spindle motor.
Note: Do not block the spindle fan outlet with the Z-axis chuck.
Make sure that at least 2/3 of the length of the Z-axis chuck is clamped to the motor.
M4X25 Screw
(Don’t lock the screw too tightly to avoid damage to the collet)
Wiring schematic
0706
Z-axis limit switch cable
The spindle red wire is connected to the port next
to the red dot mark on the motor
Y-axis limiswitch cable
Y-axis motor cable
Power/emergency stop
switch pair wiring
