5 of 29
Description Type / Use
Compact Flash Card Slot 25x2 pin Hirose CF-II Socket
(accepts CF Card types 1 & 2)
USB USB 2.0 Port
Power LED On (green) / Off (clear)
Status LED Enabled (green) / disabled (clear)
PAL / NTSC 6mm stem switch
Graphic output HD-15 pin female connector
Graphic / Video 6mm stem switch
Remote control / Speaker output DB-26 pin female connector
S-Video output 5-pin mini DIN socket
Composite video output RCA jack (yellow)
Audio output – stereo right RCA jack – Right (red)
Audio output – stereo left RCA jack – Left (white)
12V DC Power input jack DC power jack. Center pin positive,
2.5mm diam.
Power on/off Rocker switch

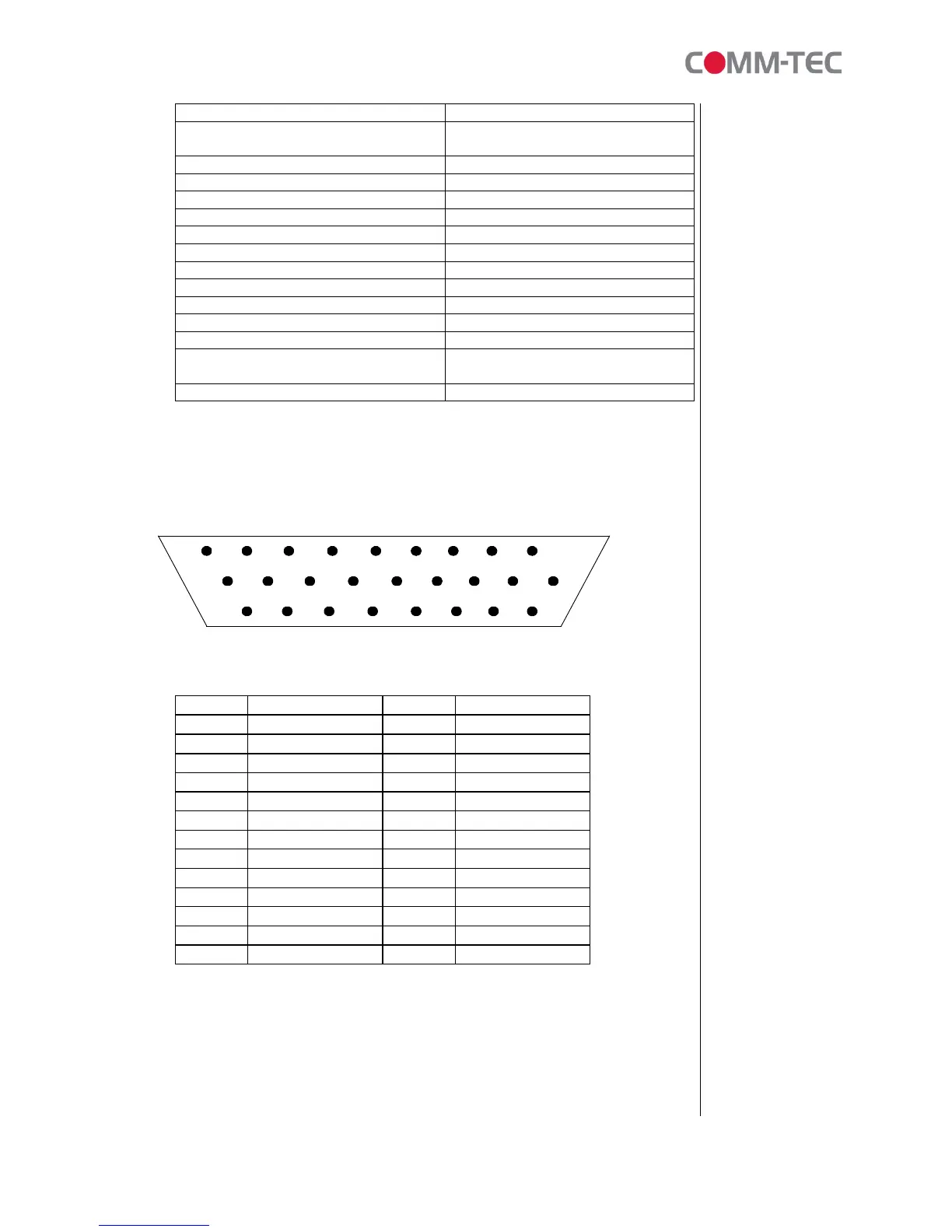

3.3 Connector Assignment DB-26 pin male
front view of the plug
Pin No Description Pin No Description
1 Button 1 14 Button 13
2 Button 2 15 Button 14
3 Button 3 16 Button 15
4 Button 4 17 Button 16
5 Button 5 18 Return for 9-16
6 Button 6 19 RS-232 RX
7 Button 7 20 RS-232 TX
8 Button 8 21 RS-232 Ground
9 Return for 1-8 22 Speaker L
10 Button 9 23 Ground / Signal
11 Button 10 24 Speaker R
12 Button 11 25 Ground / Signal
13 Button 12 26 +12 V out
1 9
10
19
