Door Lock Wire
Door Unlock Wire
WHITE
X
X
3 Wire Positive Door Lock System
Factory
Door Lock Switch
3 Wire Negative Door Lock System
PROGRAMMING THE UNIT

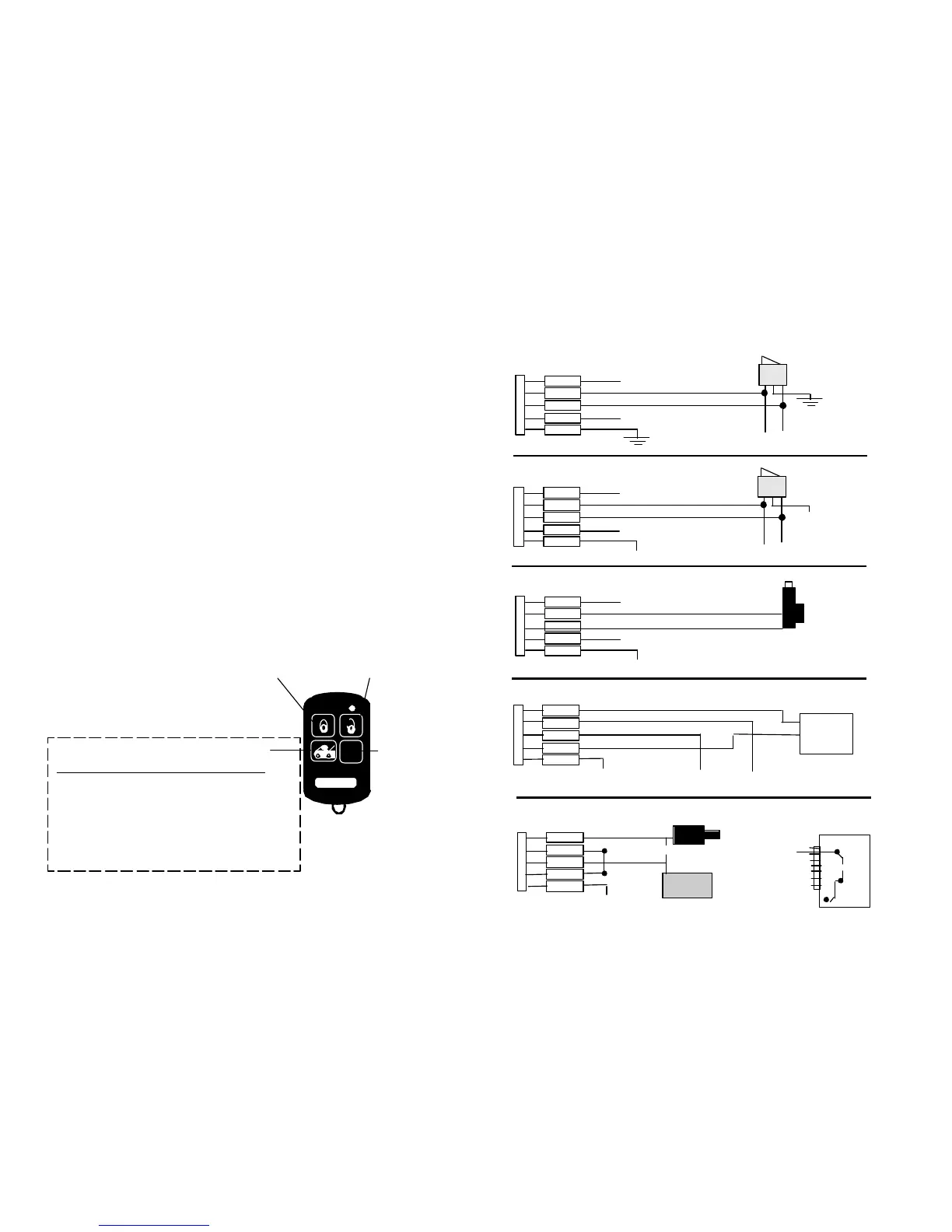

DOOR LOCK WIRING DIAGRAM
GREEN
BLUE
BROWN
VIOLET
Existing Power door lock system
Door Lock Wire
Door Unlock Wire
WHITE
X
X
Factory
Door Lock Switch
GREEN
BLUE
BROWN
VIOLET
Existing Power door lock system
12V Power (+)
12V Power (+)
Aftermarket Power door lock Actuator
WHITE
GREEN
BLUE
BROWN
VIOLET
12V Power (+)
GROUND
GROUND
5 Wire "Ground at rest" Door Lock System
WHITE
GREEN
BLUE
BROWN
VIOLET
5 WIRE
FACTORY
SWITCH
12V Power (+)
Lock
X
CUT
X
CUT
DRIVER SIDE
ACTUATOR
Unlock
WHITE
GREEN
BROWN
VIOLET
MERCEDES Vacuum Door Lock System
12V Power (+)
x
CUT
BLUE
x
CUT
pump
GROUND
Door actuator
GENESIS-PRO
DOOR LOCK
ACTUATOR
7
4
*
PTX-4
BUTTON # 3
RESET TO FACTORY DEFAULT SETTING:
ENTER PROGRAM MODE (SEE ABOVE)
PRESS AND RELEASE CHANNEL 3 FOR 5
SECONDS LIGHT WILL FLASH 3 TIMES .AND
ALL PROGRAMMABLE FEATURES BACK TO
FACTORY DEFAULT SETTINGS. (WHICH IS
ALL ON)
BUTTON # 2 =OFFBUTTON # 1=ON
Remote Programmable Features:
To enter program mode:
1- Turn Ignition key ON
2- Within 10 seconds press OVERRIDE switch 5 times. Siren will Sound with
Long Chirp then Release switch. Now in program mode.
To access feature change:
1.- Press program switch the number of times that corresponds with the
feature you desire to change.
Example: If you whant to turn feature #4 off, then press program switch 4
times.
2- Siren and LED will flash each time switch is pushed.
3- Press button #1 on remote to turn feature ON - SIREN will chrip 1 time.
4- Press button #2 on remote to turn feature OFF - SIREN will chrip 2 times.
5- System will automatically exit program mode.
6- Once a programmable feature has been entered, the LED will flash the
number of times corresponding with the program feature that was chosen.
BUTTON # 4
