2. Wiring precautions
1) If high voltage cables are present in the vicinity, use a coaxial cable with metal outer casing.
2) If any internal wires are exposed through mis-wiring, it may cause a short and become a cause of
malfunction or fire.
3) When connecting the monitor and camera, please make sure that the monitor power is off.(turn on the
power after plugging the AC power cord into the outlet)
4) Please be aware that the wire between camera and monitor has polarity
5) Please be aware that the wire between CAV-35GN and common entrance has polarity.

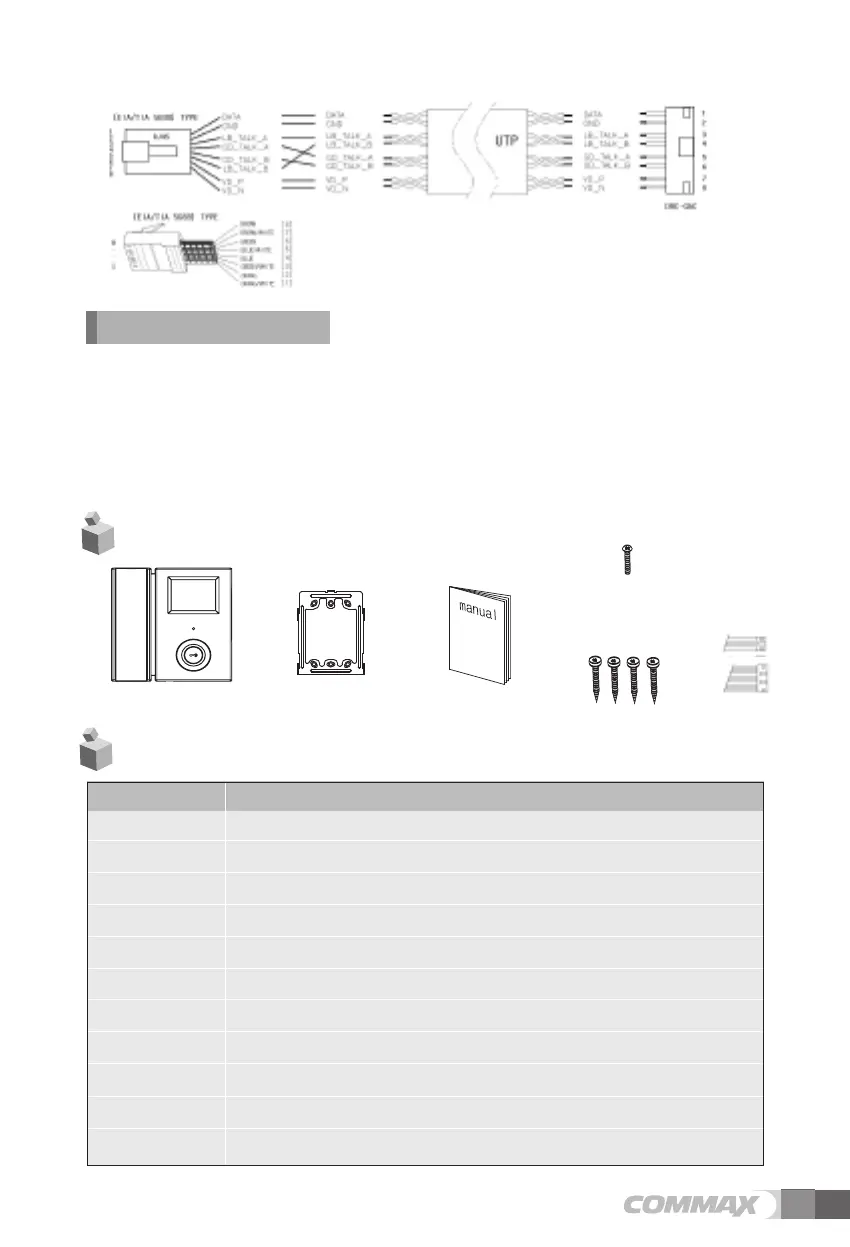

9. Part list
10. Specifications
Body of CAV-35GN
Bracket for wall mount
Manual
T4 X 18
Screw for wall mount
M3 X 6
Screw for body
4P(1EA), 10P(1EA)
Connector
Rating Voltage 100-240V~, 50/60Hz
Consumption Operation : Maximum 7W
Wiring method
To a Camera unit:4 wires polarity, To a Lobby:8 wires polarity
Monitor 3.5" TFT LCD (8.9cm)
Communication Full duplex (Handset)
Call tone
Call sound from camera: electronic chime, Interphone : electronic buzzer
Monitor Display 60±10sec
Distance from Camera
28m(Φ0.5) / 50m(Φ0.65) / 70m(Φ0.8)
Working Temperature
0 ~+40℃ (32℉ ~ 104℉)
Weight 700g (Based on Body)
Dimension(mm)
192mm(W)X195mm(H)X48.5mm(D)(Based on Max height of handset)
