Commax CM-800 - Installation and Wiring Guide; Wiring Method Overview; Terminal Connection Details; Product Specifications

4.
Specification
Standby: 7mA (In the status of connecting with CM-800) Max. : 160mA
(In the status of connecting with CM-800)
Between CM-801 and CM-800 Max. 300m / 0.65mm-
copper wire
Rated Voltage DC12V/ 200mA
Wire
Description
With CM-800 : 2 wires (Talk 2)
Transmission way Half-Duplex
Consumption
Distance
3. Installation & Wiring

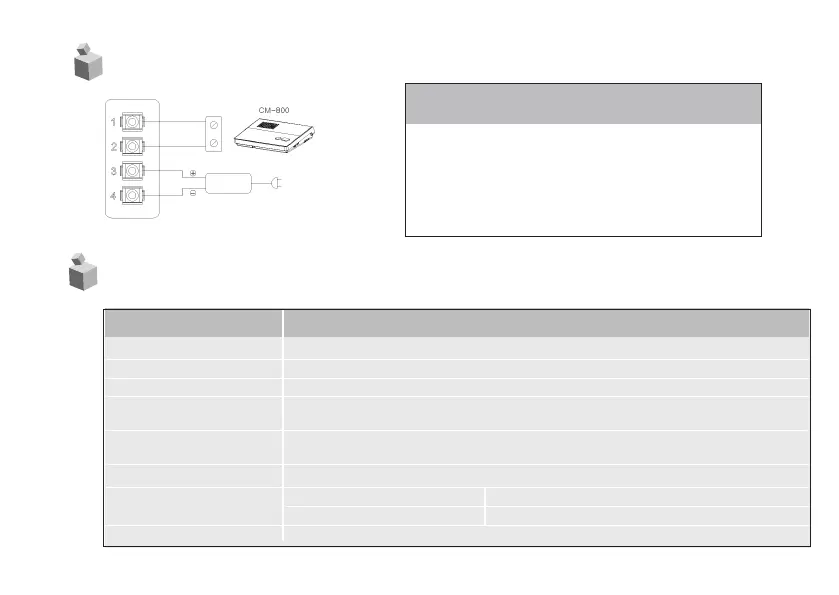

CM-801 terminal of backside
RECTIFIER
DC12V
AC POWER
3) Terminal 3 : Connecting with Power supply. +
4) Terminal 4 : Connecting with Power supply. -
1) Terminal 1 : Connecting with CM-800,
Non-Polarity, Max. distance 300m
2) Terminal 2 : Connecting with CM-800,
Non-Polarity. Max.distance 300m
** 12Voltage/1A power supply is recommendable
to use for this products Wiring method
Item
Environment Condition
Warranty Period
Product Life-Cycle
Storage Temperature
Storage Humidity
1 year
10 years
-40 °C to 50 °C
Less than 90 %
